Telemecanique 9013FHG12J52 - Pressure Switch 575VAC 1HP 150psi
Telemecanique 9013FHG12J52 - Pressure Switch 575VAC 1HP 150psi

Telemecanique 9013FHG12J52 - Pressure Switch 575VAC 1HP 150psi

Telemecanique
Price
Save $-8.97
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

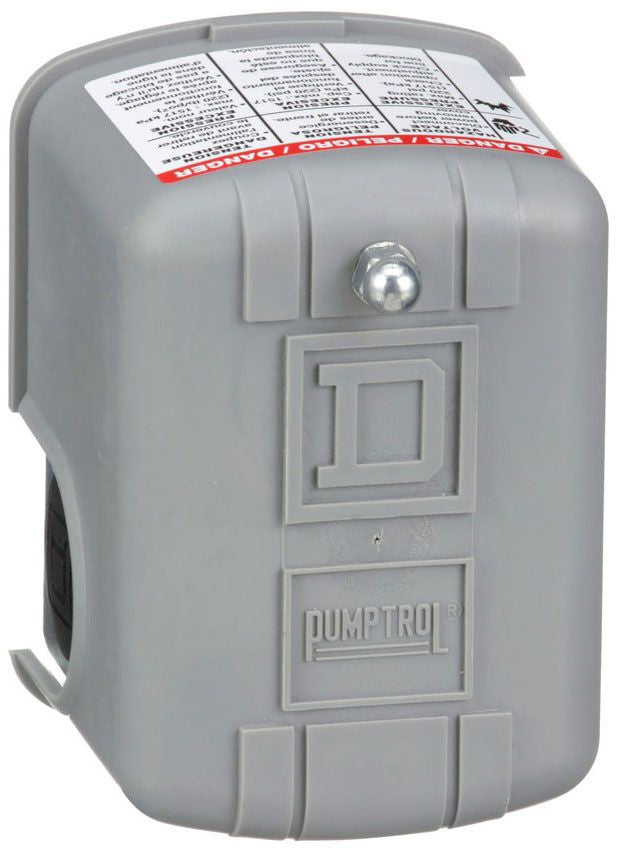

Telemecanique 9013FHG12J52 is a Pumptrol air compressor pressure switch designed for reliable pressure control in industrial applications. This fixed differential switch features a snap-action DPST-dB contact configuration rated for 575VAC and 1HP, with a maximum pressure of 150 psi and a fixed off point at 125 psi. The unit measures 2.78 inches wide by 3.76 inches deep by 3.71 inches high, weighs 1 lb, and utilizes a diaphragm actuator with a 1/4 inch NPSF internal connection for precise pressure regulation. It is certified to ANSI/NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, and UL 508 standards. This pressure switch is suitable for low horsepower systems in demanding environments requiring robust and compliant pressure control.

Key Features & Specifications
  • Manufacturer: Telemecanique
  • Item Subcategory: Pressure switch
  • Family: 9013FH
  • Country of Origin: Mexico
  • Dimensions: 2.78 in W x 3.76 in D x 3.71 in H
  • Weight: 1 lb
  • Certification: ANSI/NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
  • Maximum Pressure: 150 psi
  • Fixed Differential: Off at 125 psi
  • HP Rating: 1HP
  • Voltage: 575VAC
  • Contact Configuration: 2NC, DPST-dB
  • Connection Type: 1/4 inch NPSF internal
  • Actuator Type: Diaphragm
  • Operating Temperature: Up to 257°F


Product Identification
  • UPC: 785901035640
  • GTIN: 00785901035640
