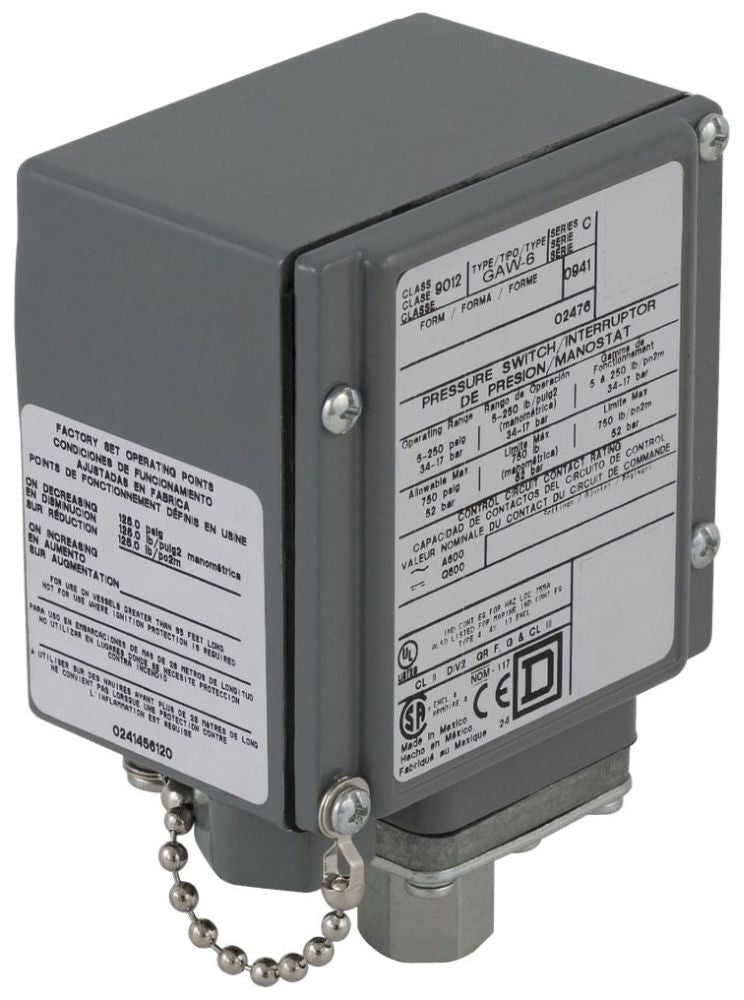

Schneider Electric 9012GAW22 - Pressure Switch 1-40 PSIG DPDT
Schneider Electric 9012GAW22 - Pressure Switch 1-40 PSIG DPDT

Schneider Electric 9012GAW22 - Pressure Switch 1-40 PSIG DPDT

Schneider Electric
Price
Save $-11.97
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric 9012GAW22 is an adjustable pressure switch designed for precise pressure control in industrial automation systems. It supports an adjustable pressure range from 1.0 to 40 PSIG with electrical ratings up to 6 A at 120 VAC and 3 A at 240 VAC, utilizing a DPDT contact configuration. The switch is housed in a die-cast aluminum alloy enclosure rated for NEMA 4, 4X, and 13 environments, weighing 0.87 lb, and features a nitrile (Buna-N) diaphragm pressure actuator with screw clamp terminals. It complies with CSA C22.2 No 14, CE, UL 508, and CSA LR25490 class 3211 03 standards. Typical applications include pressure monitoring and control in industrial machinery, pneumatic systems, and process automation.

Key Features & Specifications
  • Type: Pressure Switch
  • Adjustable pressure range: 1.0 to 40 PSIG
  • Contact type: DPDT (Double Pole Double Throw)
  • Electrical ratings: 6 A @ 120 VAC, 3 A @ 240 VAC, 0.22 A @ 125 VDC, 0.11 A @ 250 VDC
  • Enclosure: Die-cast aluminum alloy, NEMA 4, 4X, 13 rated
  • Pressure actuator: Nitrile (Buna-N) diaphragm
  • Terminal type: Screw clamp
  • Dimensions: Height 5.55 in (140.97 mm), Depth 2.63 in (66.8 mm)
  • Mounting: Panel or surface mount compatible
  • Weight: 0.87 lb
  • Certification: CSA C22.2 No 14; CE; UL 508; CSA LR25490 class 3211 03
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901024774
  • GTIN: 00785901024774
