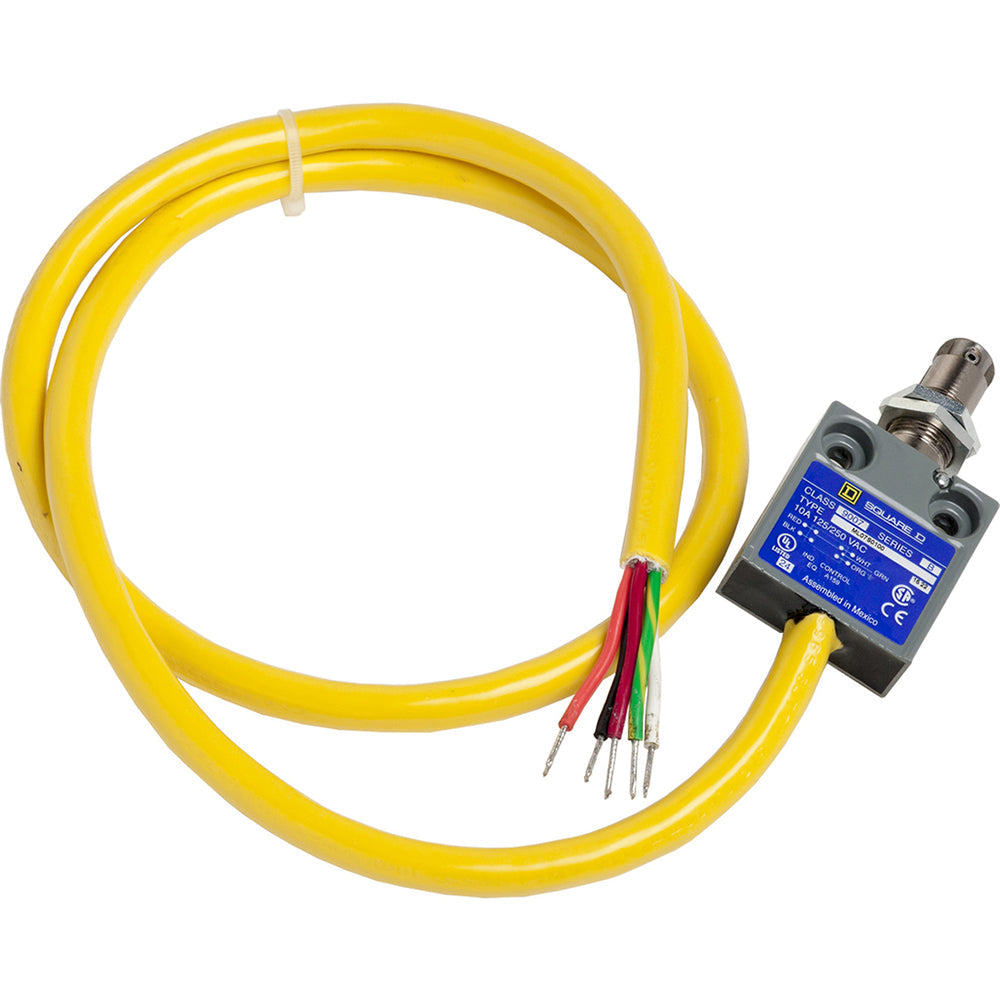

Telemecanique 9007ML07S0100 - Limit Switch 10A 240VAC
Telemecanique 9007ML07S0100 - Limit Switch 10A 240VAC

Telemecanique 9007ML07S0100 - Limit Switch 10A 240VAC

Telemecanique
Price
Save $-70.18
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Telemecanique 9007ML07S0100 is a miniature potted limit switch designed for precise position sensing in industrial automation. It is rated for 10 amps at 240 VAC and 28 VDC, with a single-pole, 1NO/1NC contact configuration. The device features a cast zinc body with a spring return parallel roller plunger actuator, fixed mounting by the head, and supports lateral approach in two directions. It is certified to UL, CSA, and CE standards, with approvals including E78403 and LR 25490 Class 32 11 03. This limit switch is suitable for use in manufacturing and process control environments requiring reliable switching from -40 to 104 °C.

Key Features & Specifications
  • Type: Limit Switch
  • Amperage: 10 Amps
  • Voltage: 240 VAC / 28 VDC
  • Number of Poles: 1
  • Contact Configuration: 1 Normally Open / 1 Normally Closed
  • Mounting Type: Fixed, by the head
  • Interrupt Rating: 10A @ 240 VAC
  • Series/Frame: 9007 Miniature Potted
  • Trip Unit: Spring return parallel roller plunger
  • Material: Cast zinc body, metal actuator
  • Operating Temperature: -40 to 104 °C
  • Approach Type: Lateral, 2 directions
  • Dimensions: 1.56 in
  • Weight: 5.19 lb
  • Country of Origin: Mexico
  • Certification: E78403 || LR 25490 Class 32 11 03; CE || UL || CSA


Product Identification
  • UPC: 785901493457
