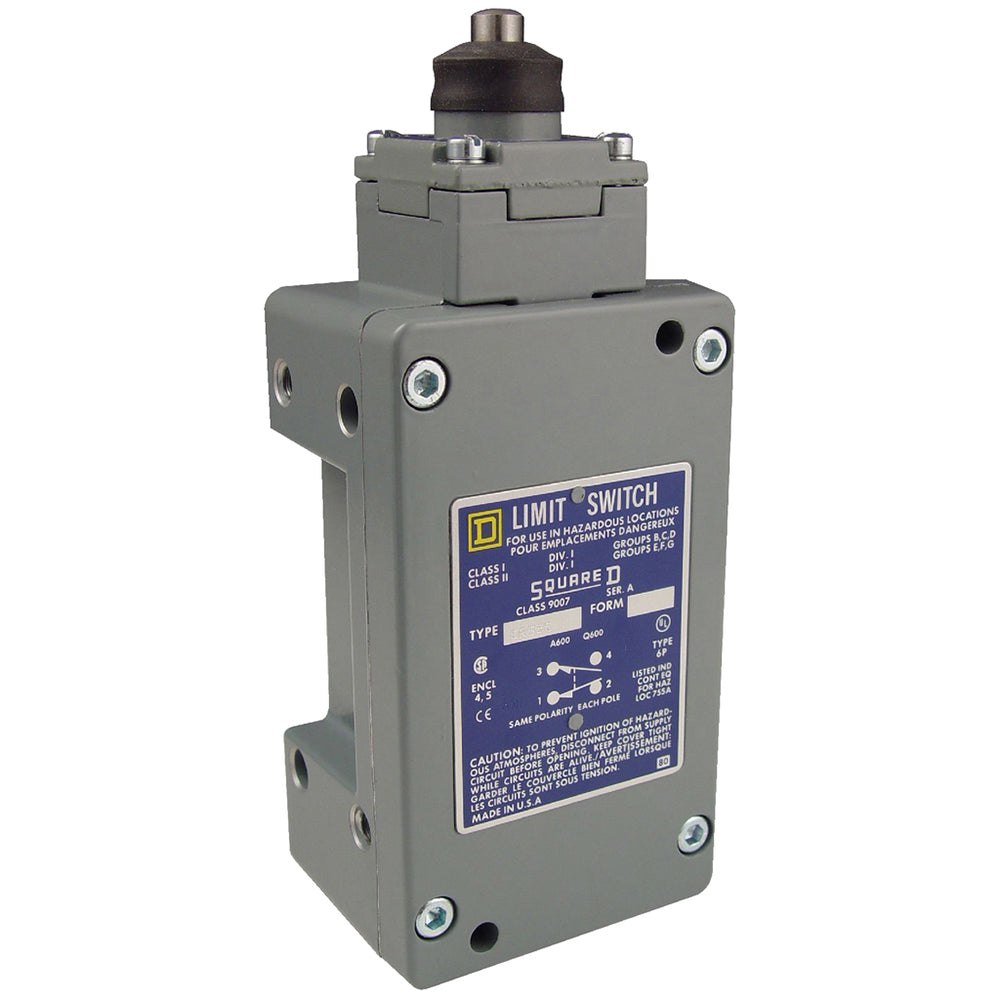

Telemecanique 9007CR61E - Limit Switch DPDT 10A 600V AC
Telemecanique 9007CR61E - Limit Switch DPDT 10A 600V AC

Telemecanique 9007CR61E - Limit Switch DPDT 10A 600V AC

Telemecanique
Price
Save $-59.86
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Telemecanique 9007CR61E is a heavy-duty limit switch from the 9007 series designed for reliable position sensing and control in industrial automation environments. It features a DPDT contact configuration with a pin plunger actuator, supporting an AC contact rating of 10 amps at 600 volts and a DC voltage rating of 125 volts. The switch is constructed with an aluminum body for durability, measures 2.72 inches by 6.10 inches, and weighs 1.25 lb, with a chassis mount design and screw termination for secure wiring. It is UL listed and CSA certified, ensuring compliance with North American safety standards. This limit switch is suitable for demanding industrial control applications requiring robust switching and shock resistance up to 60 gn for 9 ms per IEC 60068-2-27.

Key Features & Specifications
  • Series: 9007 Heavy Duty
  • Contact Configuration: DPDT (2 NO/NC)
  • Amperage: 10 A AC @ 600 V, 6 A AC @ 120 V
  • Voltage Rating: 120 V AC, 125 V DC
  • Actuator Type: Round Pin Plunger
  • Mounting Type: Chassis Mount
  • Body Material: Aluminum
  • Shock Resistance: 60 gn for 9 ms (IEC 60068-2-27)
  • Termination Style: Screw
  • Certifications: UL Listed, CSA Certified
  • Country of Origin: Mexico
  • Dimensions: 2.72" x 6.10"
  • Weight: 1.25 lb


Product Identification
  • UPC: 785901047315
  • GTIN: 0785901783749
