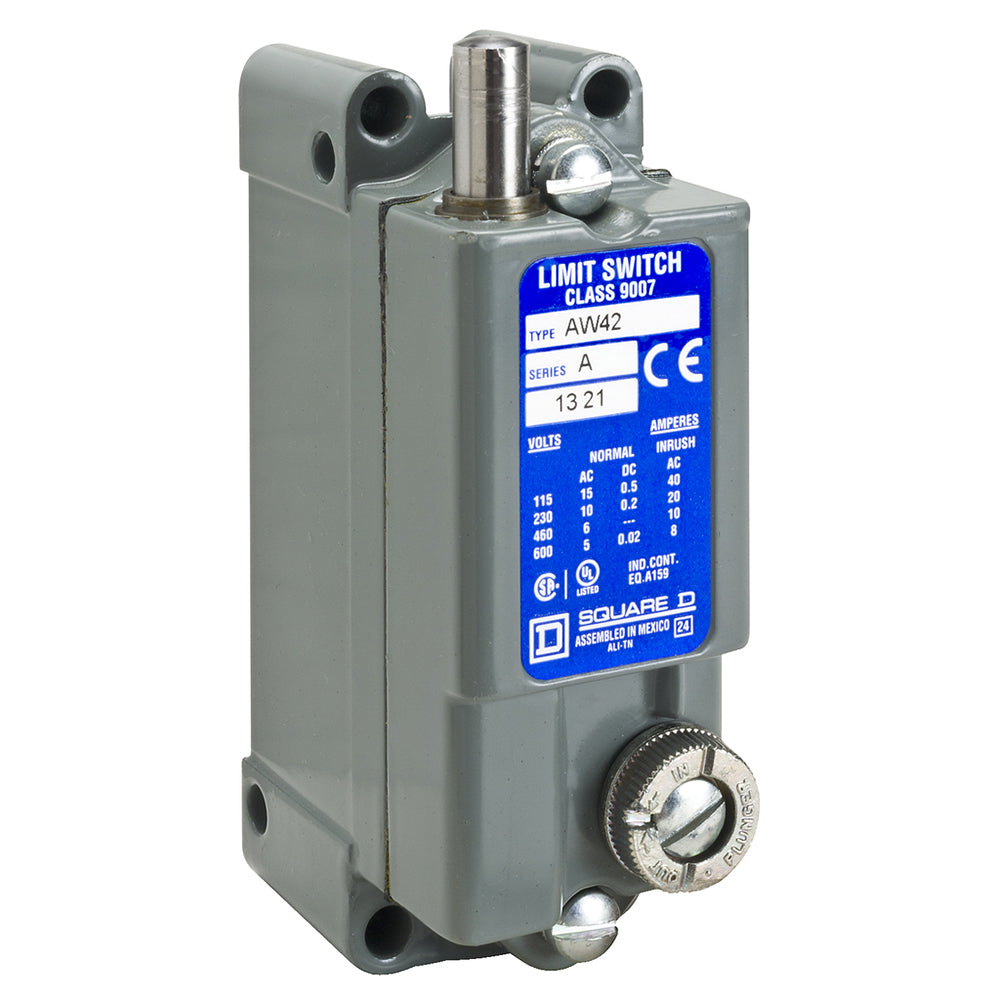

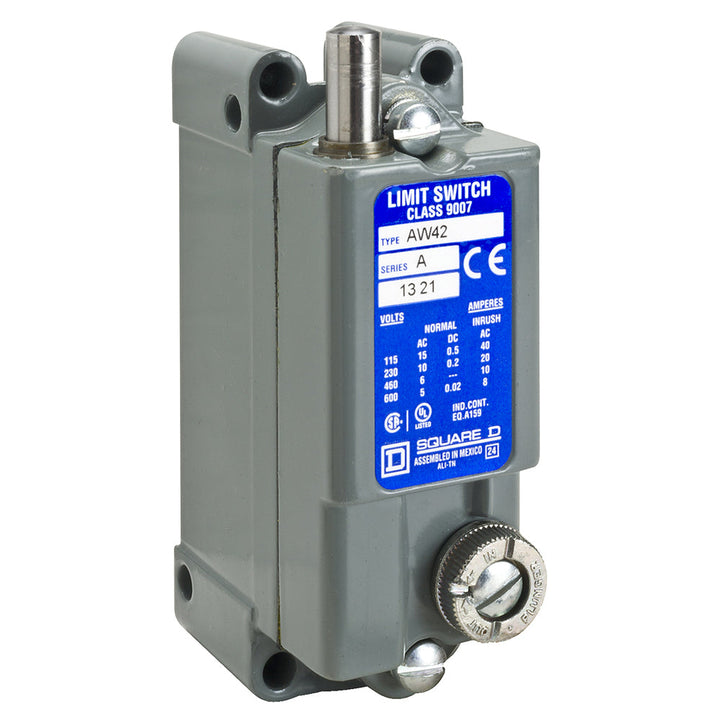

Telemecanique 9007AW42 - Limit Switch SPDT 15A 600VAC
Telemecanique 9007AW42 - Limit Switch SPDT 15A 600VAC

Telemecanique 9007AW42 - Limit Switch SPDT 15A 600VAC

Telemecanique
Price
Save $-100.63
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Telemecanique 9007AW42 is a heavy duty limit switch designed for precision position sensing in demanding industrial environments. This switch operates with a spring return push rod plunger actuator and a SPDT contact configuration rated for 15 amps at 600 VAC, accommodating wire sizes from 22 to 12 AWG. Housed in a durable die cast zinc enclosure with epoxy powder coating, the unit measures 2.22 inches and weighs 1.3 lb, with a differential travel of 1.3 inches and a temperature rating of -13 to 158 °F (-25 to 70 °C). It meets NEMA 1/2/4/12/13 and IP65 environmental protection standards, ensuring reliable performance in harsh conditions. Typical applications include automation, material handling, and machine tool systems requiring robust limit switching.

Key Features & Specifications
  • Type: Limit Switch
  • Family: 9007
  • Contact Form: SPDT (Single Pole Double Throw)
  • Amperage Rating: 15 Amps
  • Voltage Rating: 600 VAC
  • Wire Size: 22 to 12 AWG
  • Actuator Style: Spring Return Push Rod Plunger
  • Housing Material: Die Cast Zinc with Epoxy Powder Coating
  • Environmental Ratings: NEMA 1/2/4/12/13, IP65
  • Differential Travel: 1.3 inches
  • Dimensions: 2.22 in
  • Weight: 1.3 lb
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901808534
  • GTIN: 00785901808534
