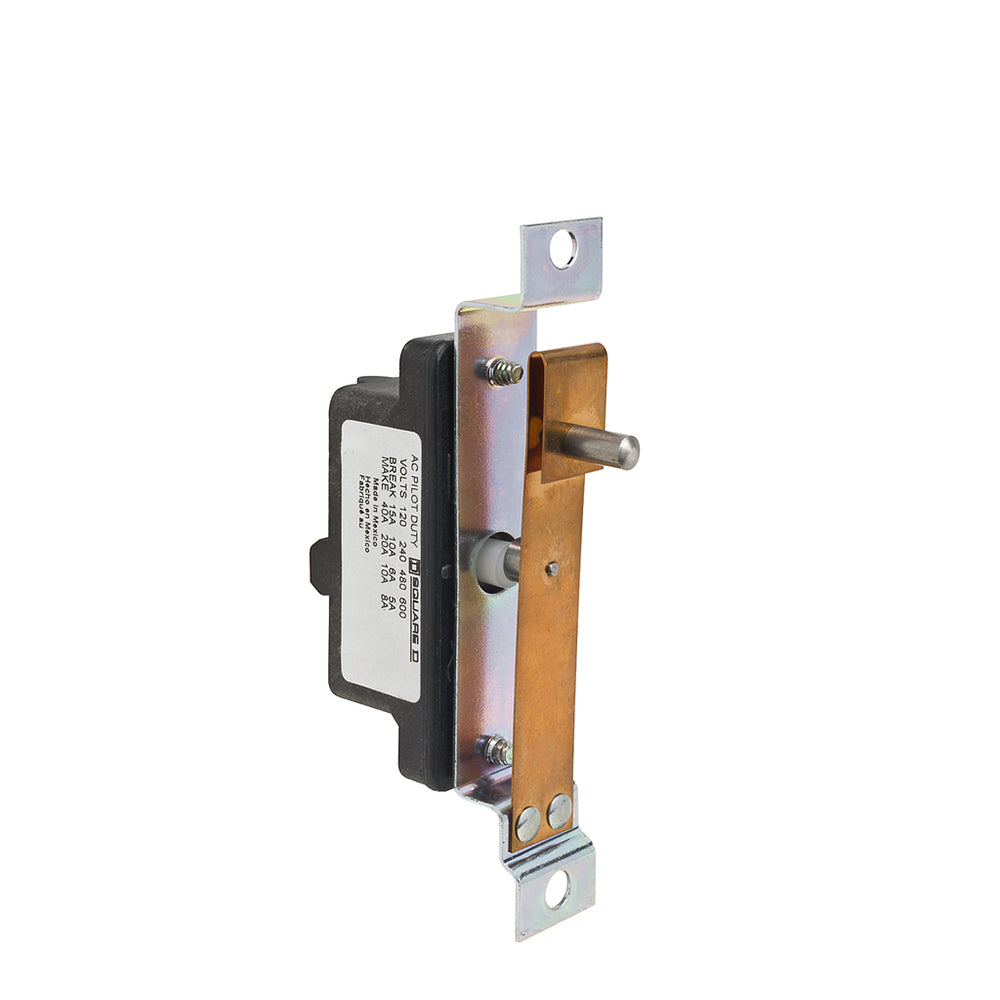

Telemecanique 9007AC1 - Snap Switch 600VAC 15A (Lever Arm)
Telemecanique 9007AC1 - Snap Switch 600VAC 15A (Lever Arm)

Telemecanique 9007AC1 - Snap Switch 600VAC 15A (Lever Arm)

Telemecanique
Price
Save $-46.71
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Telemecanique 9007AC1 is a heavy-duty snap limit switch designed for precise motor control and position sensing in industrial automation. This device supports a voltage rating of 120 to 240 to 480 to 600 VAC and 125 to 250 to 600 VDC, with a current capacity of 15 amps AC at 125 VAC and 10 amps at 250 VAC. It features a robust cast zinc metal body with a lever arm operator and a spring return mechanism, weighing 0.15 lb for compact installation. The switch meets NEMA 1 standards for general-purpose enclosures and is suitable for cabinet door mounting in harsh environments. Typical applications include conveyor systems, machine tools, and automated manufacturing equipment requiring reliable snap-action switching.

Key Features & Specifications
  • Type: Snap switch
  • Family: 9007AO/CO
  • Voltage Rating: 120 to 240 to 480 to 600 VAC, 125 to 250 to 600 VDC
  • Current Rating: 15 amps AC
  • Contact Configuration: SPDT (1NO/1NC)
  • Operator Type: Lever arm
  • Body Material: Cast zinc metal
  • Mounting Type: Cabinet door
  • Spring Return Mechanism
  • Temperature Range: -20 to 185°F
  • Interrupt Rating: 15 amps at 125 VAC, 10 amps at 250 VAC
  • Series: 9007C
  • Certifications: NEMA 1
  • Weight: 0.15 lb


Product Identification
  • UPC: 785901758921
  • GTIN: 00785901758921
