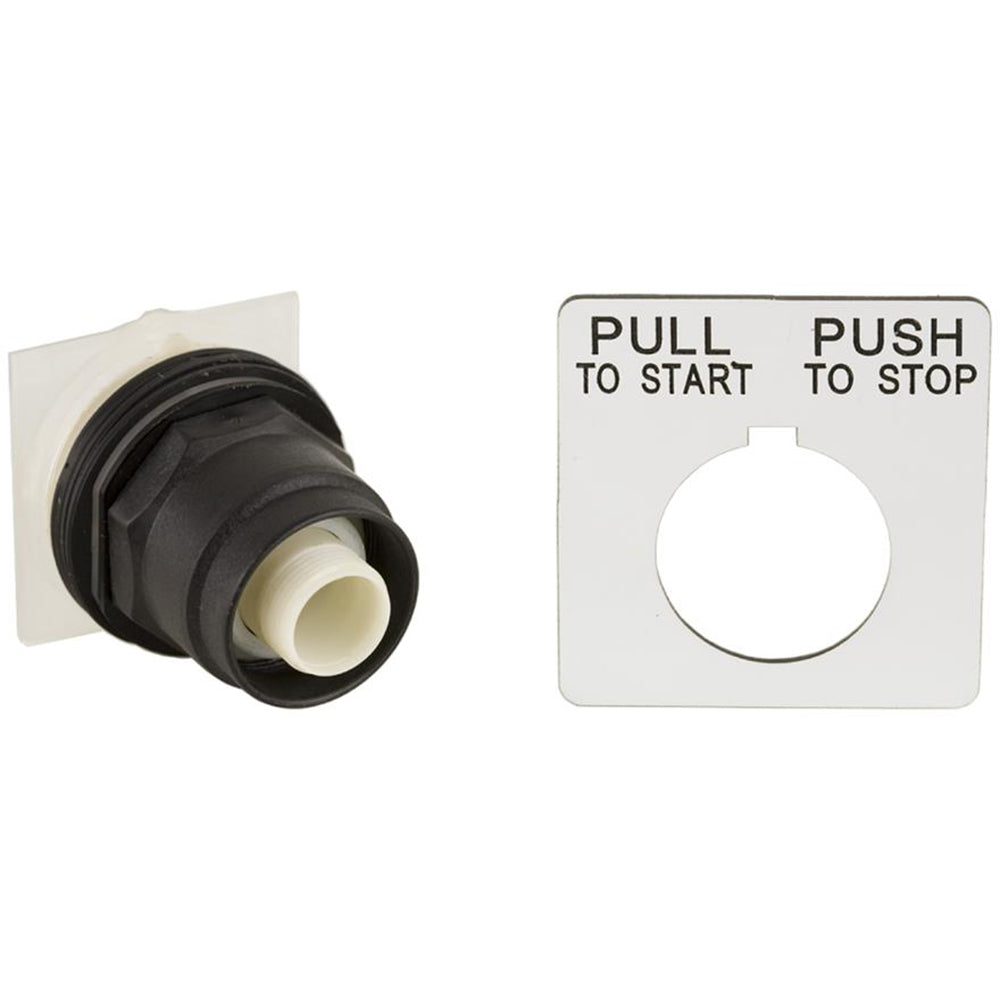

Schneider Electric 9001SKR8 - 30mm Push Button Operator 600V 10A
Schneider Electric 9001SKR8 - 30mm Push Button Operator 600V 10A

Schneider Electric 9001SKR8 - 30mm Push Button Operator 600V 10A

Schneider Electric
Price
Save $-76.46
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
The Schneider Electric 9001SKR8 is a heavy-duty, 30mm push button operator designed for industrial control panel applications requiring reliable actuation. This component features a red, flush-mounted, non-illuminated operator with a spring-return mechanism, rated for 600V AC/DC and 10A continuous current, constructed from durable thermoplastic with a NEMA 4X/13 and IP66-rated enclosure for protection against dust, water, and corrosion. It complies with CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, and UL E42259 CCN NKCR standards, making it suitable for harsh environments in manufacturing, processing, and material handling systems.

Key Features & Specifications
  • Type: 30mm flush push button, non-illuminated, spring return
  • Voltage Rating: 600V AC/DC
  • Current Rating: 10A
  • Dimensions: 30mm panel cutout
  • Standards: CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR
  • Applications: Industrial control panels, machinery, process control
  • Switch Type: Push button
  • Configuration: Flush, red operator
  • Coil Voltage Maximum: N/A
  • Temp Rating: N/A
  • Shipping Dimensions: N/A
  • Phase: N/A
  • Voltage: 600V
  • Amperage: 10A
  • AIC rating: N/A
  • Connection: N/A
  • Poles: N/A
  • Protection: NEMA 4X/13, IP66
  • Functions: Momentary
  • Frame Size: 30mm
  • Trip Type: N/A
  • Panel Type: N/A
  • Breaker Type: N/A
  • Control Voltage Minimum: N/A
  • Control Voltage Maximum: N/A
  • MCM Size: N/A
  • Metal Type: N/A
  • Panel Style: N/A
  • Bus Type: N/A
  • Fuse Class: N/A
  • Insulation Temperature: N/A
  • Inductance: N/A
  • Impedance: N/A
  • Barrels: N/A
  • Class Rating: N/A
  • Diameter: N/A
  • Velocity: N/A
  • Clip Center: N/A
  • Clas: N/A
  • Mounting: Panel mount
  • Hz: N/A
  • Coil Material: N/A
  • Horse Power: N/A
  • Aux Contacts: N/A
  • CPT: N/A
  • Full Load Amps: N/A
  • Dist Voltage: N/A
  • Bucket Size: N/A
  • Bucket Style: N/A
  • Bucket Type: N/A
  • Full Load Amp Maximum: N/A
  • Full Load Amp Minimum: N/A
  • Enclosure: NEMA 4X/13, IP66
  • Relay Style: N/A
  • Coil Voltage Minimum: N/A
  • Wire: N/A
  • Amperage Maximum: 10A
  • Amperage Minimum: N/A
  • Nema Rating: 4X/13
  • Switch Style: Push button
  • Wire Size: N/A
  • Certification: CE, CSA, REACH, RoHS, UL
  • Circuit Breaker Mounting Style: N/A
  • Terminal Connection: N/A
  • Frequency Rating: N/A
  • Phase Connection: N/A
  • Standards: CE, CSA, REACH, RoHS, UL
  • Compatible Frames: N/A
  • Installation Type: Panel mount
  • Item QTY: 1
  • Nema Starter Size: N/A
  • Breaker Frame: N/A
  • Current Rating: 10A
  • Reverse Standoff Voltage: N/A
  • Watts: N/A
  • Peak Pulse Current: N/A
  • Breakdown Voltage (MIN VBR@IT ) (V): N/A
  • Breakdown Voltage (VBR@IT) (V): N/A
  • Polarity: N/A
  • Operating Temperature Maximum Celsius: N/A
  • Max Clamp Voltage: N/A
  • On-State Current: N/A


Product Identification
  • UPC: 785901307580
  • GTIN:
