Schneider Electric 9001KXRG137 - Push Button 30mm 10A 600V AC
Schneider Electric 9001KXRG137 - Push Button 30mm 10A 600V AC

Schneider Electric 9001KXRG137 - Push Button 30mm 10A 600V AC

Schneider Electric
Price
Save $23.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

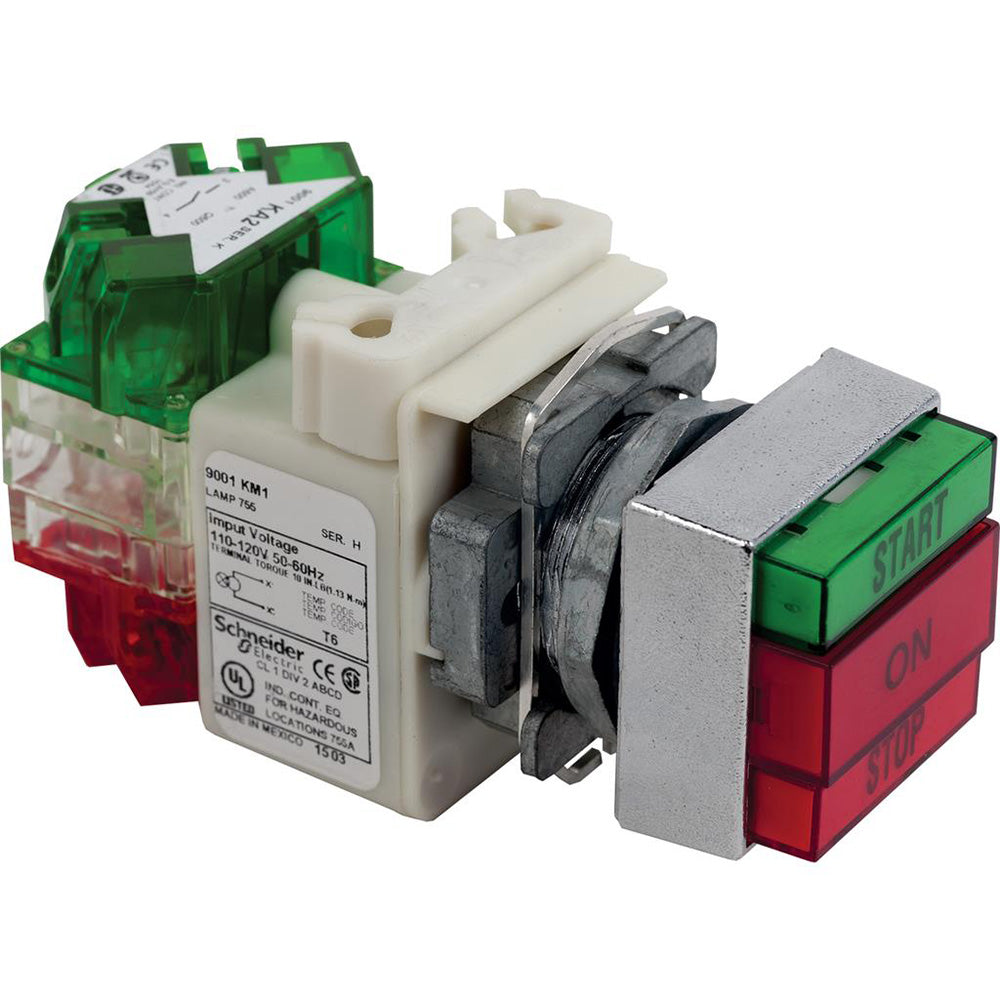

Schneider Electric 9001KXRG137 is a 30mm push button operator from the Harmony 9001K series, designed for industrial motor control applications requiring momentary start/stop functionality with integrated pilot indication. This pilot device features a green marked START button, red marked STOP button, and a red ON indicator lamp module rated for 120V AC, with electrical contacts rated at 10A at 600V AC. Constructed with a metal panel-mount design weighing 0.719 lb, it offers 1NO/1NC contact configuration and is suitable for use in NEMA 4/4X/13 enclosures. The unit complies with REACH, RoHS, and WEEE regulations, and is manufactured in Mexico as part of the 9001KX family.

Key Features & Specifications
  • Type: Push button switch
  • Manufacturer: Schneider Electric
  • Series: Harmony 9001K
  • Size: 30mm
  • Operation: Momentary Start / Momentary Stop
  • Contacts: 1NO/1NC
  • Amperage: 10A
  • Voltage: 600V AC
  • Lamp Module: Full Voltage, 120V AC
  • Mounting Type: Panel Mount
  • Interrupt Rating: 10A @ 600V AC
  • Material: Metal
  • Weight: 0.719 lb
  • Country of Origin: Mexico
  • Certification: REACH, RoHS, WEEE
  • Certifications: NEMA 4/4X/13


Product Identification
  • UPC: 785901017431
  • GTIN: 00785901017431
