Schneider Electric 9001KR1RH13 - Push Button 10A 600V (Spring Return)
Schneider Electric 9001KR1RH13 - Push Button 10A 600V (Spring Return)

Schneider Electric 9001KR1RH13 - Push Button 10A 600V (Spring Return)

Schneider Electric
Price
Save $54.44
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

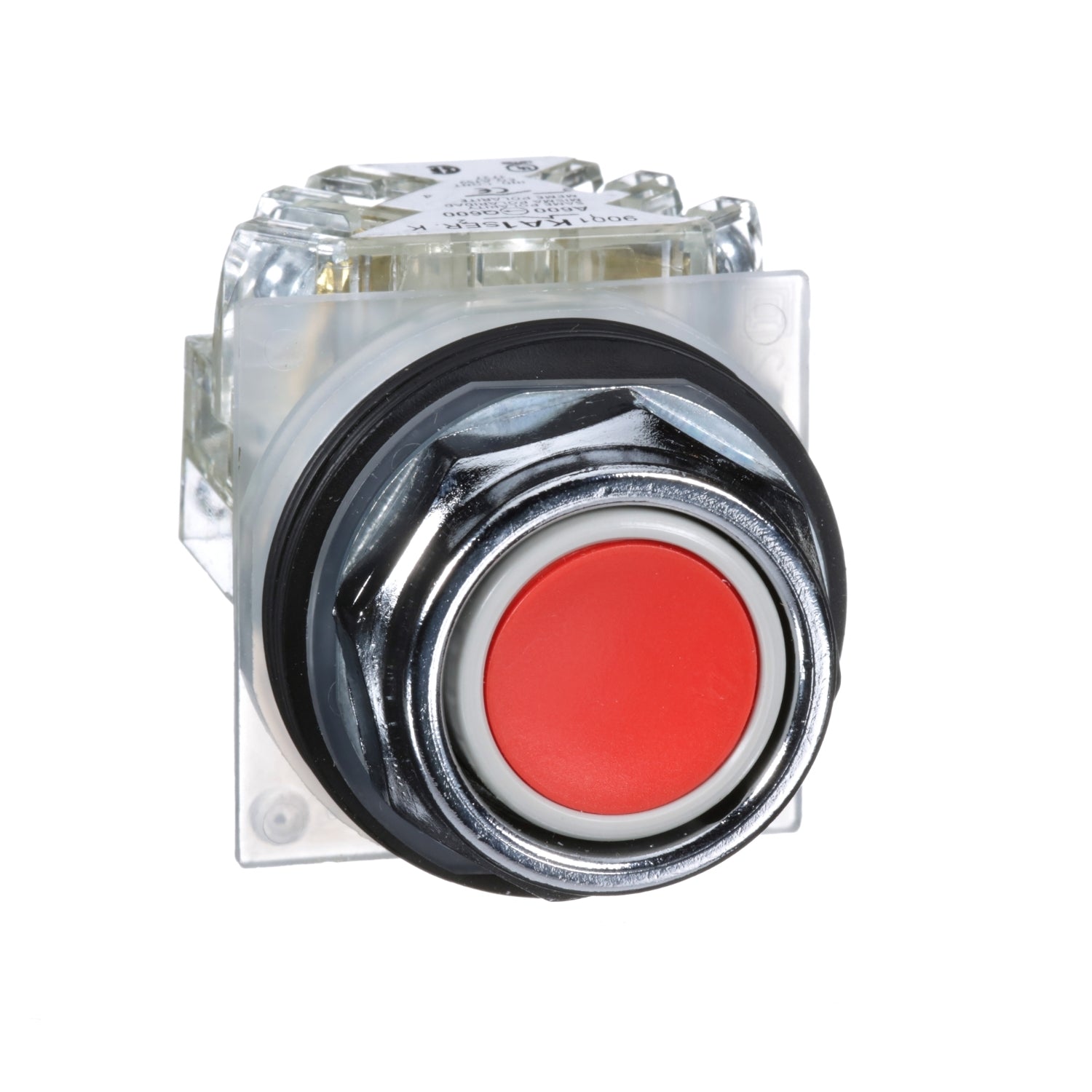

Schneider Electric 9001KR1RH13 is a Square D Harmony 30 mm push button designed for motor control in industrial environments, providing primary protection through reliable actuation. This non-illuminated flush push button is rated for 10 Amps at 600 Volts, featuring a 1 C/O contact configuration for versatile control. It has a red chromium plated metal bezel, a spring return mechanism, and screw clamp terminals, with a weight of 0.288 lb and an operating temperature range of -13 to 158 °F (-25 to 70 °C). The device complies with CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, and WEEE standards, and is constructed in Mexico. Typical industrial applications include heavy duty motor control panels and extreme condition environments requiring robust push button operation.

Key Features & Specifications
  • Type: Pushbutton
  • Manufacturer: Schneider Electric
  • Series: Harmony 9001K
  • Mounting Type: 30 mm Panel Mount
  • Bezel Material: Metal
  • Amperage: 10 Amp
  • Voltage: 600 Volt
  • Contact Configuration: 1 C/O
  • Profile: Flush
  • Function: Spring Return
  • Terminals: Screw Clamp
  • IP Rating: IP66
  • Weight: 0.288 lb
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Certification: CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901066811
  • GTIN: 00785901066811
