Square D 9001KP32G31 - 22mm Pilot Light 600V AC/DC
Square D 9001KP32G31 - 22mm Pilot Light 600V AC/DC

Square D 9001KP32G31 - 22mm Pilot Light 600V AC/DC

Square D
Price
Save $-105.99
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

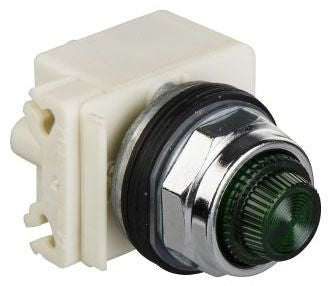

Square D 9001KP32G31 is a heavy-duty, 22mm pilot light designed for clear visual indication of machine status in industrial control systems. This unit operates at a maximum voltage of 600V AC/DC and is rated for a continuous current of 10A, providing reliable signaling under demanding conditions. Constructed with a durable chrome-plated metal bezel and a polycarbonate lens, it features a 30mm panel cutout and a compact depth of 45mm for straightforward installation. The device complies with multiple international standards including EN/IEC 60947-5-1, UL 508, and CSA C22.2 No 14, ensuring global acceptance and safety. It is typically deployed in manufacturing plants, conveyor systems, and process control panels where robust, long-life pilot lights are required.

Key Features & Specifications
  • Type: 22mm pilot light, chrome-plated metal bezel, polycarbonate lens
  • Voltage Rating: 600V AC/DC
  • Current Rating: 10A
  • Dimensions: 30mm panel cutout, 45mm depth
  • Standards: EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, EN/IEC 60947-5-4, UL 508, JIS C8201-5-1, EN/IEC 60947-1, JIS C8201-1
  • Applications: Manufacturing plants, conveyor systems, process control panels
  • Weight: 0.5 lb


Product Identification
  • UPC: 78590184941
  • GTIN: 00785901849414
