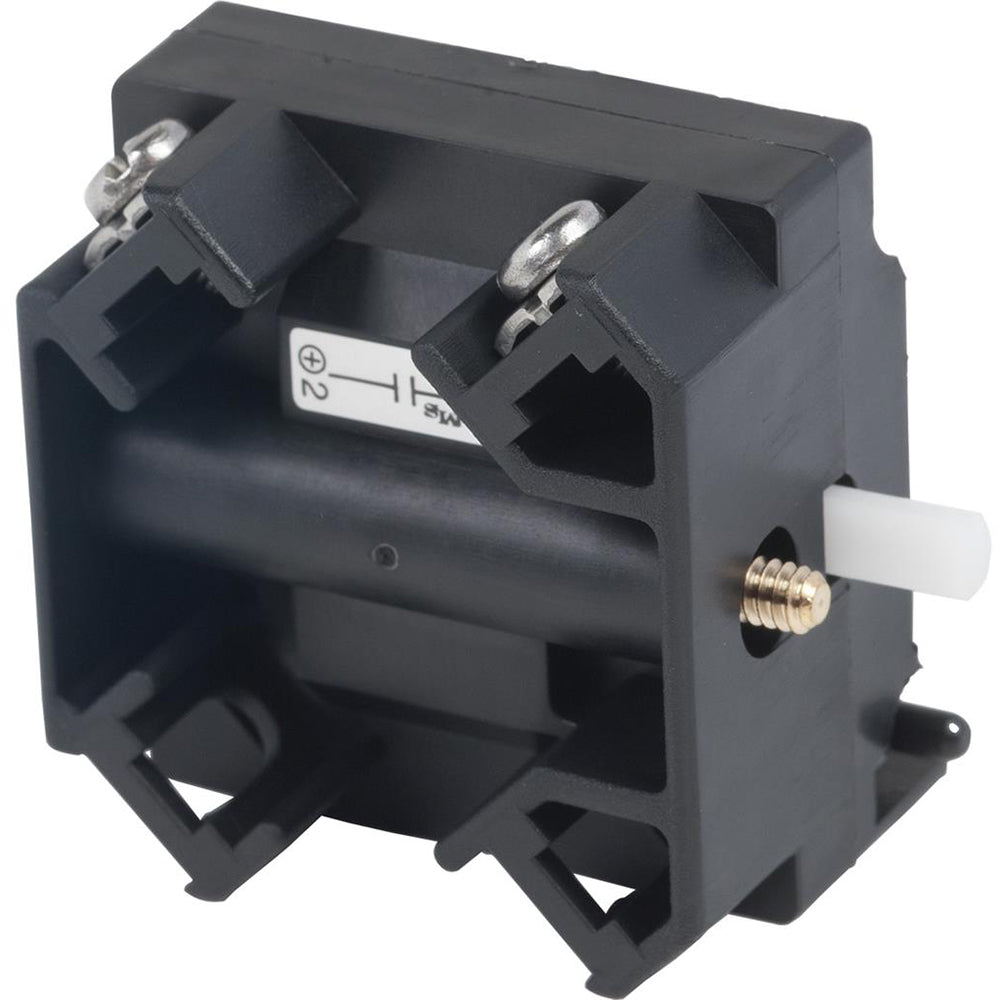

Schneider Electric 9001KA42 - Hermetic Reed Contact Block 0.5A
Schneider Electric 9001KA42 - Hermetic Reed Contact Block 0.5A

Schneider Electric 9001KA42 - Hermetic Reed Contact Block 0.5A

Schneider Electric
Price
Save $-2.25
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Schneider Electric 9001KA42 is a 30mm hermetically sealed logic reed contact block serving as a pilot device for motor control applications, featuring a single normally open contact configuration. It is rated for 0.5 amperes at 120 volts AC or 100 volts DC, with a slow break operator type and copper/silver contacts. The device measures 1.6 inches in height and 1.09 inches in width, weighs 0.086 lb, and is housed in an amorphous nylon enclosure with screw clamp terminals. It complies with CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, and UL 508 standards, supporting NEMA 1/2/3/3R/4/12/13 and IP66 ratings. This contact block is suitable for industrial environments requiring robust protection and reliable switching in motor control circuits.

Key Features & Specifications
  • Type: Push button switch
  • Contact Configuration: 1 Normally Open (1NO)
  • Contact Rating: 0.5 A at 120 VAC / 100 VDC
  • Operator Type: Slow Break
  • Contact Material: Copper/Silver
  • Mounting Size: 30 mm
  • Terminal Type: Screw Clamp
  • Enclosure Material: Amorphous Nylon
  • Dimensions: 1.6 in H x 1.09 in W
  • Weight: 0.086 lb
  • NEMA Ratings: 1/2/3/3R/4/12/13
  • Ingress Protection: IP66
  • Hermetically Sealed Design
  • Country of Origin: Mexico
  • Certification: CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508


Product Identification
  • UPC: 078590149855
  • GTIN: 00785901498551
