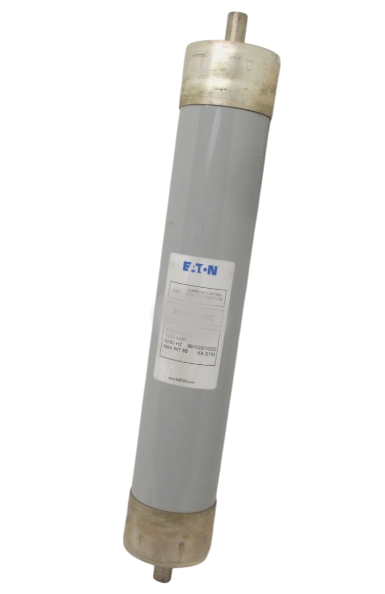

Eaton 8RBA2-30E - Medium Voltage Fuse 30A 7200V (16.6kA AIC)
Eaton 8RBA2-30E - Medium Voltage Fuse 30A 7200V (16.6kA AIC)

Eaton 8RBA2-30E - Medium Voltage Fuse 30A 7200V (16.6kA AIC)

Eaton
Price
Save $371
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 8RBA2-30E is a medium voltage power fuse designed for overcurrent protection in industrial electrical systems. It provides a 30A current rating and a 7200V voltage rating, with an interrupting capacity of 16.6kA at 7.2kV. The fuse features a single-barrel, standard-velocity RBA2 design with compact dimensions of 1.8 in x 9 in x 1.8 in and a weight of 1 lb, constructed for reliable performance. It is engineered to comply with the IEEE Std. C37.41 standard, ensuring suitability for protecting transformers, motors, and feeders in utility and industrial medium-voltage applications.

Key Features & Specifications
  • Type: Medium Voltage Power Fuse, RBA2 single-barrel, standard-velocity
  • Voltage Rating: 7200V
  • Current Rating: 30A
  • Dimensions: 1.8 in x 9 in x 1.8 in (Length/Depth x Height x Width)
  • Standards: IEEE Std. C37.41
  • Applications: Transformer, motor, and feeder protection in industrial/utility systems
  • Class Rating: E
  • AIC rating: [email protected]
  • Weight: 1 lb


Product Identification
  • UPC: 78667022889
  • GTIN: 00786670228899
