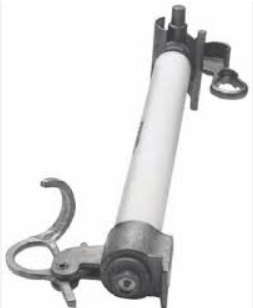

Eaton 8RBA2-125E - Medium Voltage Fuse Refill 125A 7.2kV
Eaton 8RBA2-125E - Medium Voltage Fuse Refill 125A 7.2kV

Eaton 8RBA2-125E - Medium Voltage Fuse Refill 125A 7.2kV

Eaton
Price
Save $387
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 8RBA2-125E is a medium voltage current-limiting fuse refill designed for protecting transformers, motors, and feeders in industrial power systems up to 7.2kV. It features a 125A current rating and a high interrupting capacity of 16.6kA at 7.2kV, housed in a robust, single-barrel RBA2 design with standard velocity characteristics and dimensions of 11 x 2 x 2 inches. Constructed as a Class E fuse, it complies with the IEEE Std. C37.41 standard for consistent performance and safety in medium-voltage switchgear and motor starter applications, where reliable overcurrent protection is critical.

Key Features & Specifications
  • Type: RBA2 medium voltage current-limiting fuse refill, single barrel, standard velocity
  • Voltage Rating: 7200V AC
  • Current Rating: 125A
  • Dimensions: 11 in (L) x 2 in (H) x 2 in (W)
  • Weight: 1.9 lb
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • Class Rating: E
  • AIC rating: 16.6kA @ 7.2kV
  • Barrels: 1
  • Family: RBA
  • Country of Origin: Dominican Republic
  • Section: Fuse Refills


Product Identification
  • UPC: 78667022927
  • GTIN: 00786670229278
