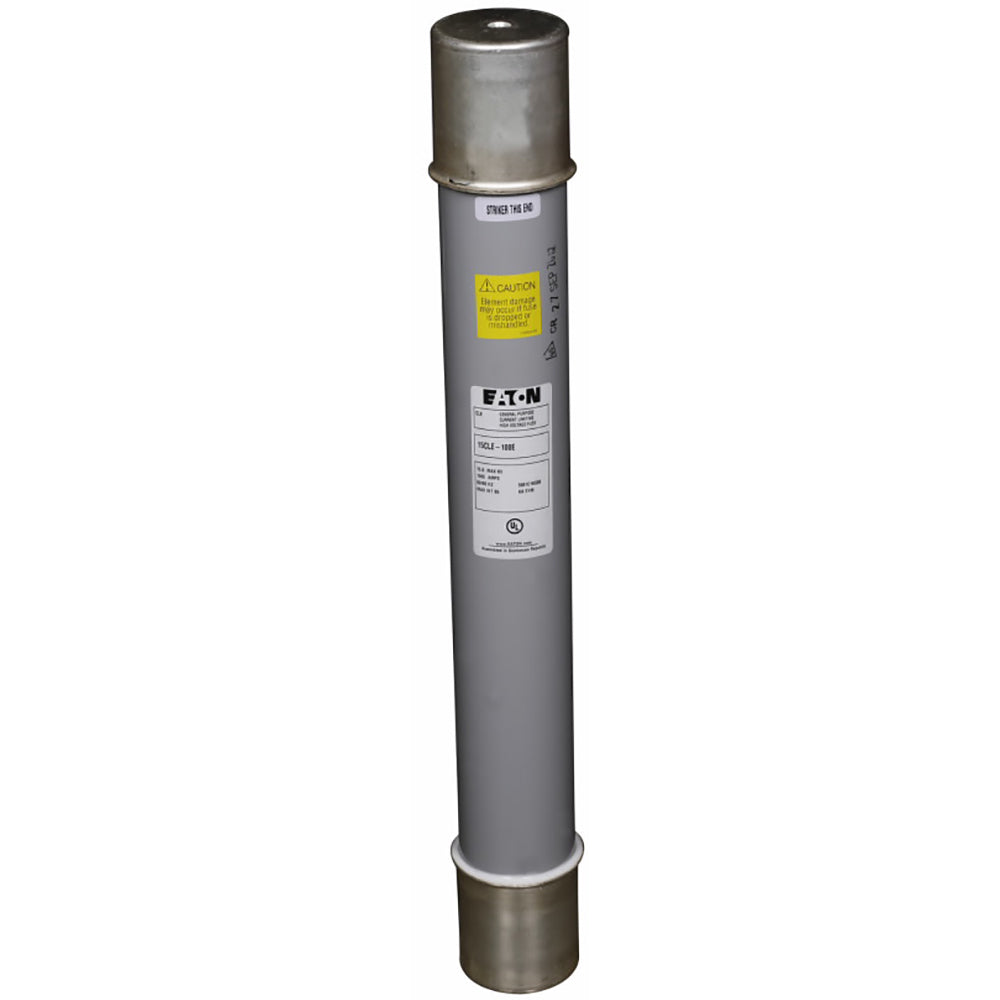

Eaton 8HLE-40E - Medium Voltage Fuse 40A 8.3kV (50kA AIC)

Eaton
Price
Save $907
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 8HLE-40E is a medium voltage fuse designed for high-capacity circuit protection in industrial power distribution systems. It provides a 40A current rating and an 8.3kV voltage rating, capable of interrupting faults up to 50kA at its rated voltage. The fuse features a single-barrel, Class E construction with a 3-inch diameter and a 15.9-inch length, weighing 11 lb, and is engineered for use with a 12-inch clip center mounting. It is designed to meet industry protection requirements, though it is not certified to IEEE Std. C37.41. Typical applications include safeguarding transformers, motors, and feeders in utility and heavy industrial medium-voltage switchgear.

Key Features & Specifications
  • Type: Medium Voltage Fuse, HLE family, single-barrel, Class E rating
  • Voltage Rating: 8300V
  • Current Rating: 40A
  • Dimensions: 15.9 in x 3 in x 3 in (Length x Height x Width)
  • Weight: 11 lb
  • Diameter: 3 in
  • Standards: IEEE Std. C37.41 Not Applicable
  • AIC Rating: 50kA @ 8.3kV
  • Clip Center: 12 in
  • Barrels: 1
  • Class Rating: E


Product Identification
  • UPC: 782114884867
  • GTIN: 00782114884867
