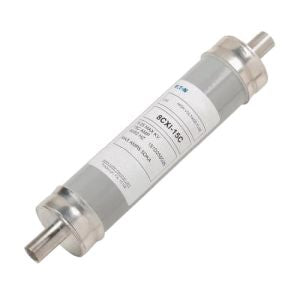

Eaton 8CXN-150C is a medium voltage power distribution fuse designed for high-interrupting capacity protection in industrial electrical systems. It features a 150A current rating and an 8.3kV voltage rating, with a 50kA interrupting rating at its rated voltage for reliable fault isolation. The fuse is constructed as a single-barrel, Class C expulsion fuse with an overall length of 18.84 inches and a 4-inch diameter, utilizing a robust NX clip connection with a 16.41-inch clip center spacing. It is engineered and tested in compliance with IEEE Standard C37.41, ensuring performance and safety for medium voltage applications such as transformer protection, feeder circuits, and motor starters.

Key Features & Specifications
  • Type: CXN, Medium Voltage Expulsion Fuse, Single Barrel
  • Voltage Rating: 8300V AC
  • Current Rating: 150A
  • Dimensions: 18.84 in L x 4 in H x 4 in W
  • Standards: IEEE Std. C37.41
  • Applications: Transformer, Feeder, and Motor Circuit Protection
  • AIC rating: 50kA @ 8.3kV
  • Connection: NX Clip
  • Barrels: 1
  • Class Rating: C
  • Diameter: 4 in
  • Clip Center: 16.41 in
  • Weight: 10 lb
  • Country of Origin: United States


Product Identification
  • UPC: 78667050135
  • GTIN: 00786670501350
