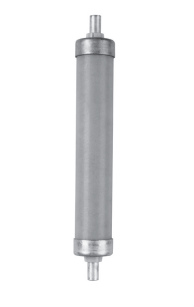

Eaton 8CX-15C - Medium Voltage Fuse 15A 8.3kV (50kA AIC)
Eaton 8CX-15C - Medium Voltage Fuse 15A 8.3kV (50kA AIC)

Eaton 8CX-15C - Medium Voltage Fuse 15A 8.3kV (50kA AIC)

Eaton
Price
Save $317
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 8CX-15C is a medium voltage current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 15A current rating and an 8.3kV voltage rating, with a high interrupting capacity of 50kA to safely clear fault currents. The fuse is constructed as a single-barrel, Class C device with a 1.13-inch diameter and overall dimensions of 10 x 2 x 2 inches, weighing 3 lb. It is manufactured in the United States and complies with the IEEE Std. C37.41 standard for design tests, ensuring reliable performance in demanding medium-voltage applications.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, Single-Barrel Fuse
  • Voltage Rating: 8300V
  • Current Rating: 15A
  • Dimensions: 10 in L x 2 in H x 2 in W
  • Standards: IEEE Std. C37.41
  • Applications: Transformer, Motor, and Feeder Protection
  • Class Rating: C
  • AIC rating: 50kA @ 8.3kV
  • Diameter: 1.13 in
  • Barrels: 1
  • Weight: 3 lb
  • Country of Origin: United States


Product Identification
  • UPC: 78667024788
  • GTIN: 00786670247883
