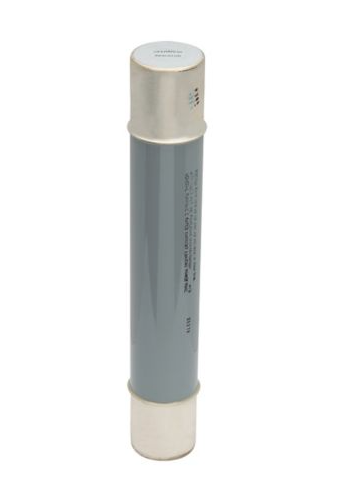

Eaton 8CLT-30CL is a medium-voltage current-limiting fuse designed for protecting transformers, motors, and feeders in industrial power systems. It features a 30A current rating and an 8.3kV voltage rating, with a high interrupting capacity of 25kA to safely clear fault currents. The fuse is constructed as a single-barrel CLT type with a threaded connection, measuring 12.3 inches in length and 2.25 inches in diameter for standardized mounting in clips with an 11-inch center spacing. It is engineered and tested in compliance with IEEE Std. C37.41, ensuring reliable performance in demanding medium-voltage applications such as utility substations and large industrial facilities.

Key Features & Specifications
  • Type: CLT (Current-Limiting Transformer) fuse, single-barrel construction with threaded connection
  • Voltage Rating: 8300V
  • Current Rating: 30A
  • Dimensions: 12.3 in L x 1.6 in H x 1.6 in W (312.4 mm x 40.6 mm x 40.6 mm)
  • Diameter: 2.25 in (57.2 mm)
  • Weight: 3 lb (1.36 kg)
  • AIC Rating: 25kA at 8.3kV
  • Standards: Certified to IEEE Std. C37.41
  • Connection: Threaded
  • Barrels: 1
  • Clip Center: 11 in (279.4 mm)
  • Applications: Protection for transformers, motors, and feeders in industrial and utility medium-voltage systems


Product Identification
  • UPC: 78667022301
  • GTIN: 00786670223016
