Eaton 8CLT-12 - CLT Medium Voltage Fuse 12A (8.3kV, 25kA AIC)
Eaton 8CLT-12 - CLT Medium Voltage Fuse 12A (8.3kV, 25kA AIC)
Eaton 8CLT-12 - CLT Medium Voltage Fuse 12A (8.3kV, 25kA AIC)
Eaton 8CLT-12 - CLT Medium Voltage Fuse 12A (8.3kV, 25kA AIC)

Eaton 8CLT-12 - CLT Medium Voltage Fuse 12A (8.3kV, 25kA AIC)

Eaton
Price
Save $474
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

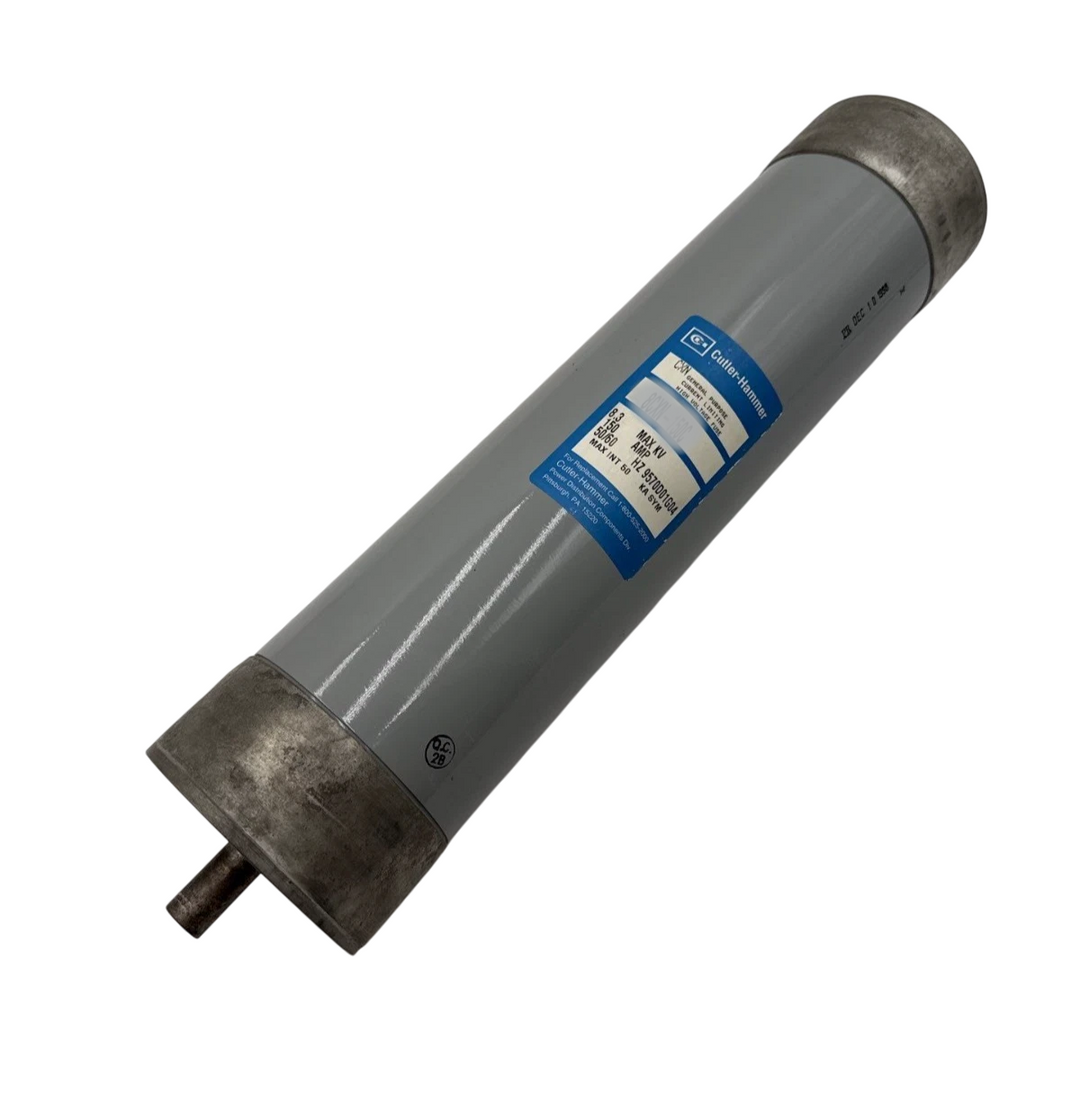

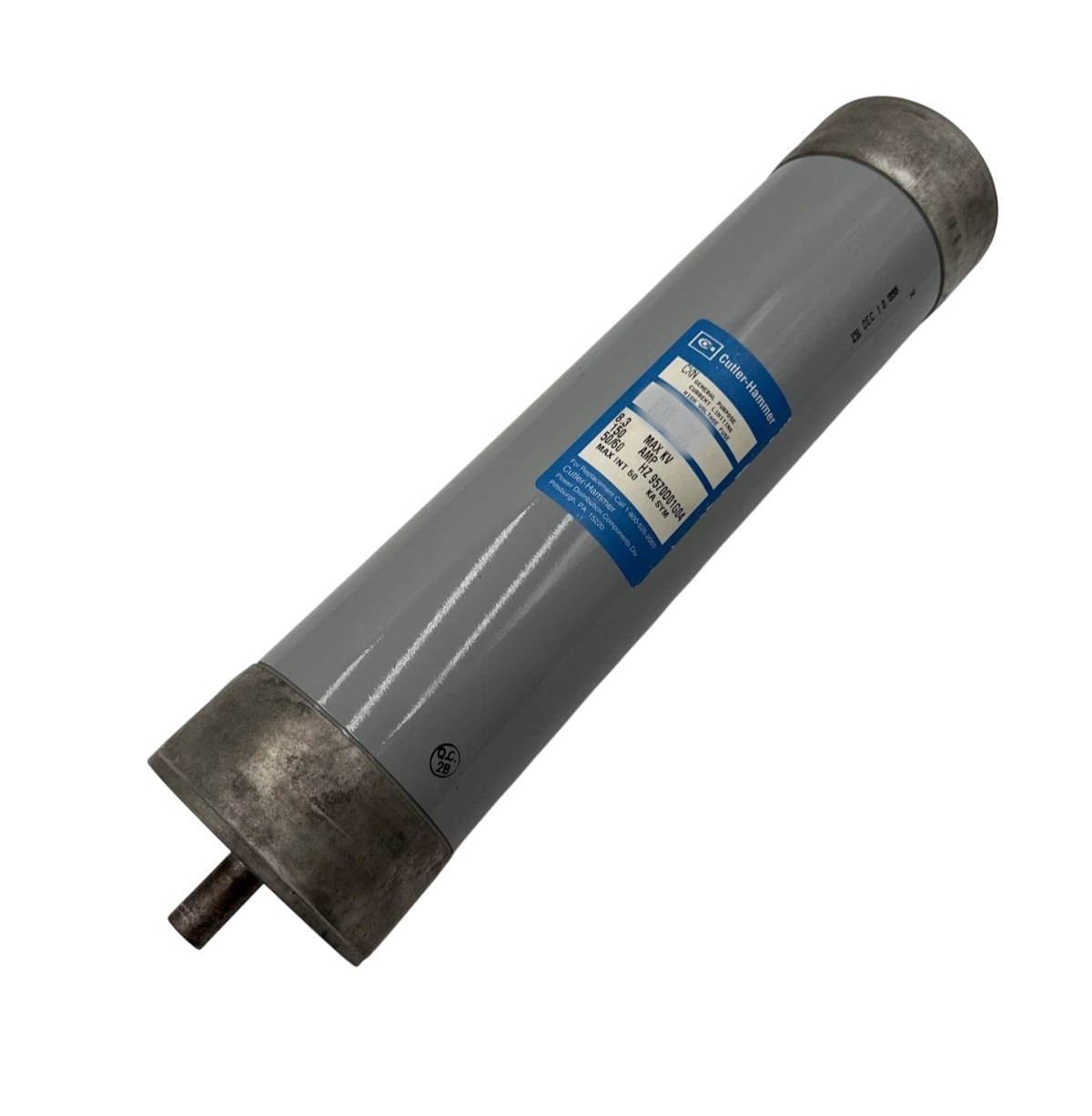

Eaton 8CLT-12 is a medium voltage current-limiting fuse designed for protecting transformers, motors, and feeders in industrial power systems. It features a 12A current rating and an 8.3kV voltage rating, with a high interrupting capacity of 25kA. The fuse is constructed as a single-barrel unit with a 1.5-inch diameter and threaded connections, measuring 13.9 x 2.2 x 1.55 inches and weighing 1.55 lb, designed for a standard 9.7-inch clip center spacing. It is engineered and tested to comply with the IEEE Std. C37.41 standard, ensuring reliable performance in demanding medium-voltage applications such as switchgear and motor control centers.

Key Features & Specifications
  • Type: CLT, Medium Voltage Current-Limiting Fuse, Single Barrel
  • Voltage Rating: 8300V
  • Current Rating: 12A
  • Dimensions: 13.9 in x 2.2 in x 1.55 in (L x H x W)
  • Standards: IEEE Std. C37.41
  • Applications: Transformer, Motor, and Feeder Protection
  • AIC rating: [email protected]
  • Connection: Threaded
  • Barrels: 1
  • Diameter: 1.5 in
  • Clip Center: 9.7 in
  • Weight: 1.55 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78667022284
  • GTIN: 00786670222842
