Eaton 8AHLE-350E - Class E Fuse 350A @ 8.3kV

Eaton
Price
Save $3,999.45
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

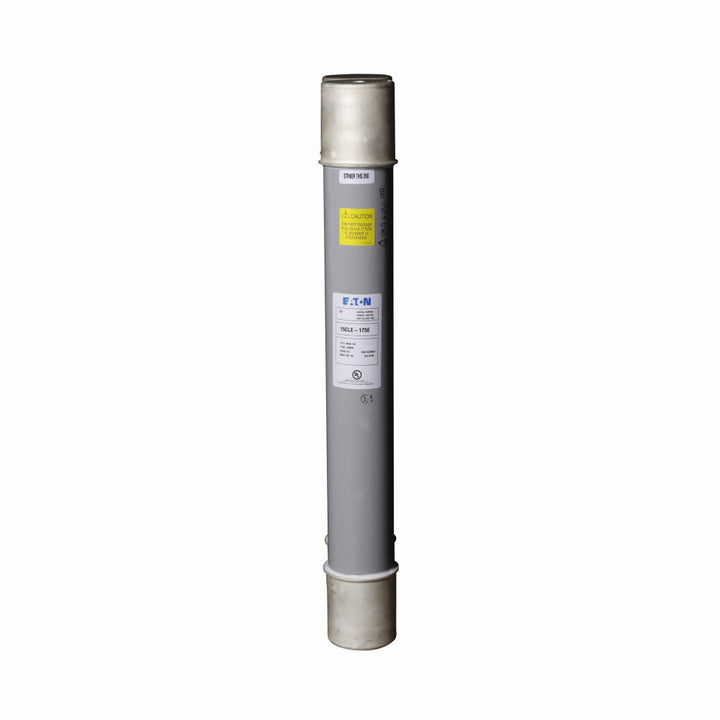

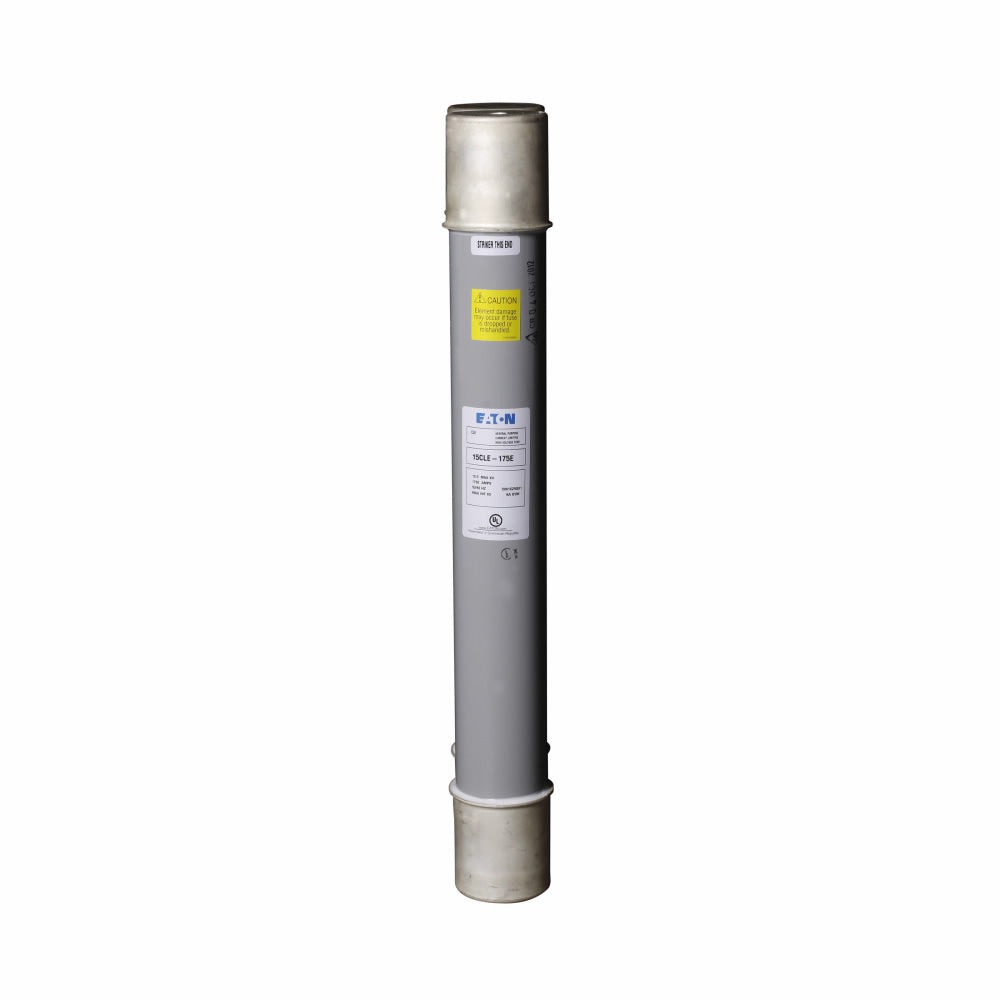

Eaton 8AHLE-350E is a medium voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. It provides a 350A continuous current rating and an interrupting rating of 50kA at 8.3kV, engineered to safely clear high-fault currents. The fuse features a robust two-barrel construction with a 3-inch diameter and overall dimensions of 15.9" L x 7.5" H x 3" W, weighing 18 lb for durable installation. It is certified to IEEE Std. C37.41, ensuring reliable performance for protecting transformers, motors, and feeders in medium-voltage switchgear and other demanding applications.

Key Features & Specifications
  • Type: AHLE Class E, two-barrel, medium voltage current-limiting fuse
  • Voltage Rating: 8300V
  • Current Rating: 350A
  • Dimensions: 15.9 in (Length) x 7.5 in (Height) x 3 in (Width)
  • Standards: IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in medium-voltage industrial power systems
  • Class Rating: E
  • AIC rating: 50kA @ 8.3kV
  • Barrels: 2
  • Diameter: 3 in
  • Weight: 18 lb


Product Identification
  • UPC: 782114891216
  • GTIN: 00782114891216
