Eaton 8ACLS-6R - Medium Voltage Fuse 170A 8.3kV

Eaton
Price
Save $1,925.41
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

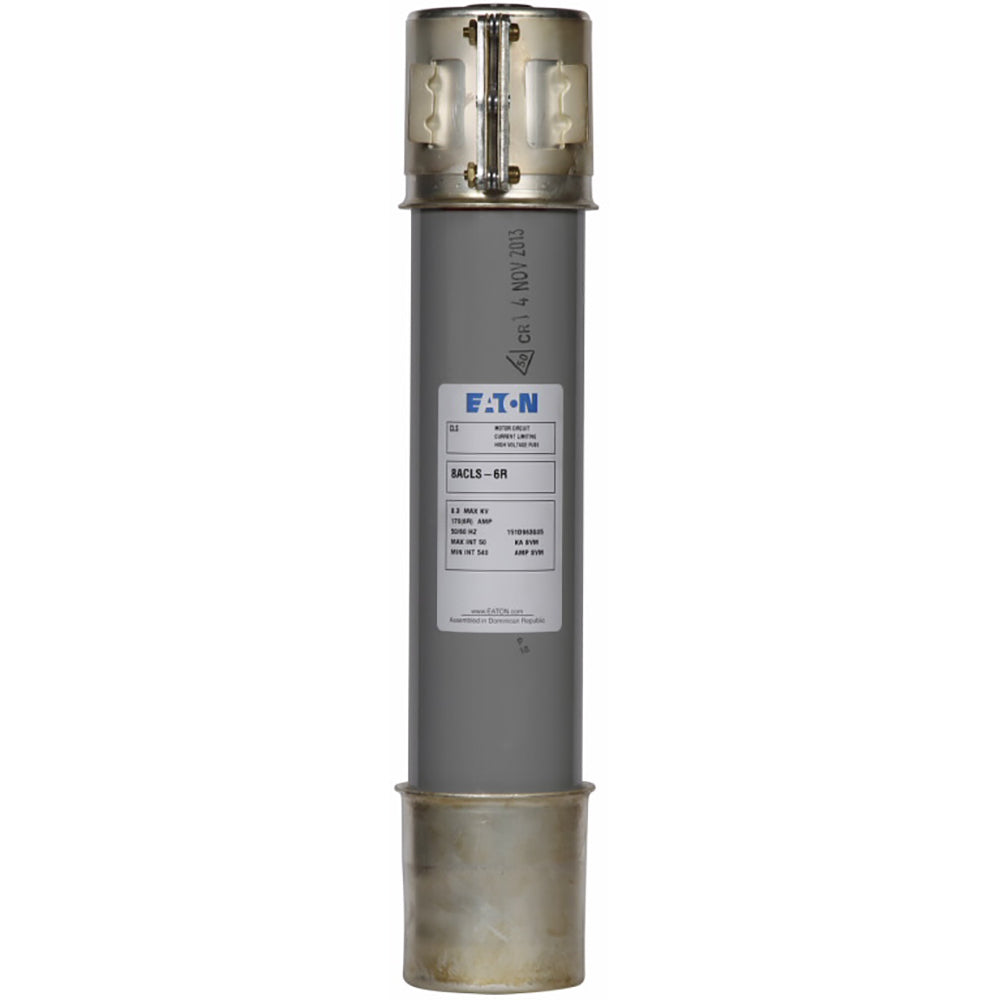

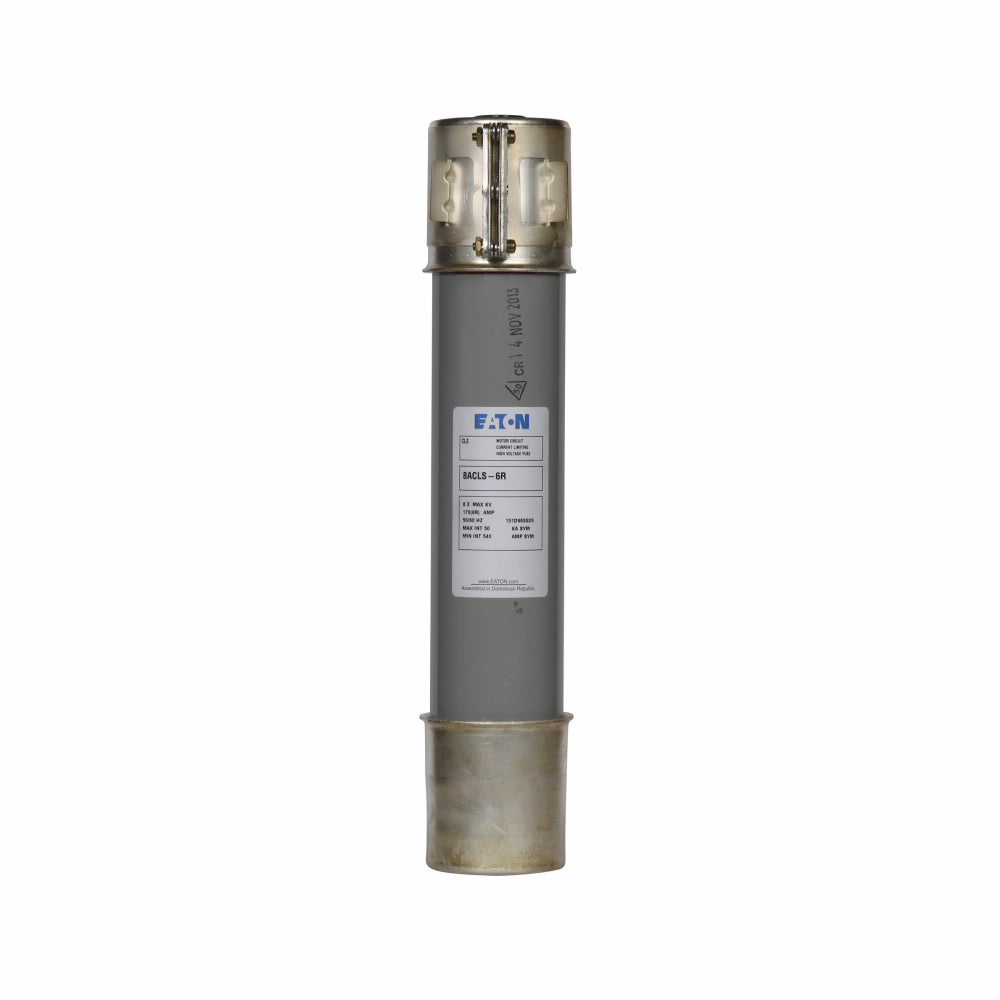

Eaton 8ACLS-6R is a medium voltage current-limiting fuse designed for high-interrupting capacity protection in industrial power distribution systems. It features a 170A current rating and an 8.3kV voltage rating, with a 50kA symmetrical interrupting rating at its rated voltage for reliable fault isolation. The fuse is constructed as a single-barrel, Class E device with a 3-inch diameter and overall dimensions of 15.9 in (L) x 4.2 in (H) x 3 in (W), weighing 9 lb. It is engineered and tested in compliance with IEEE Std. C37.41, ensuring performance for protecting transformers, motors, and feeders in medium-voltage switchgear and circuit breaker applications.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, Single-Barrel, Class E Fuse
  • Voltage Rating: 8300V AC
  • Current Rating: 170A
  • Dimensions: 15.9 in x 4.2 in x 3 in (Length x Height x Width)
  • Standards: IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • AIC rating: 50kA @ 8.3kV
  • Class Rating: E
  • Barrels: 1
  • Diameter: 3 in
  • Weight: 9 lb
  • Country of Origin: United States


Product Identification
  • UPC: 786670151050
  • GTIN: 00786670151050
