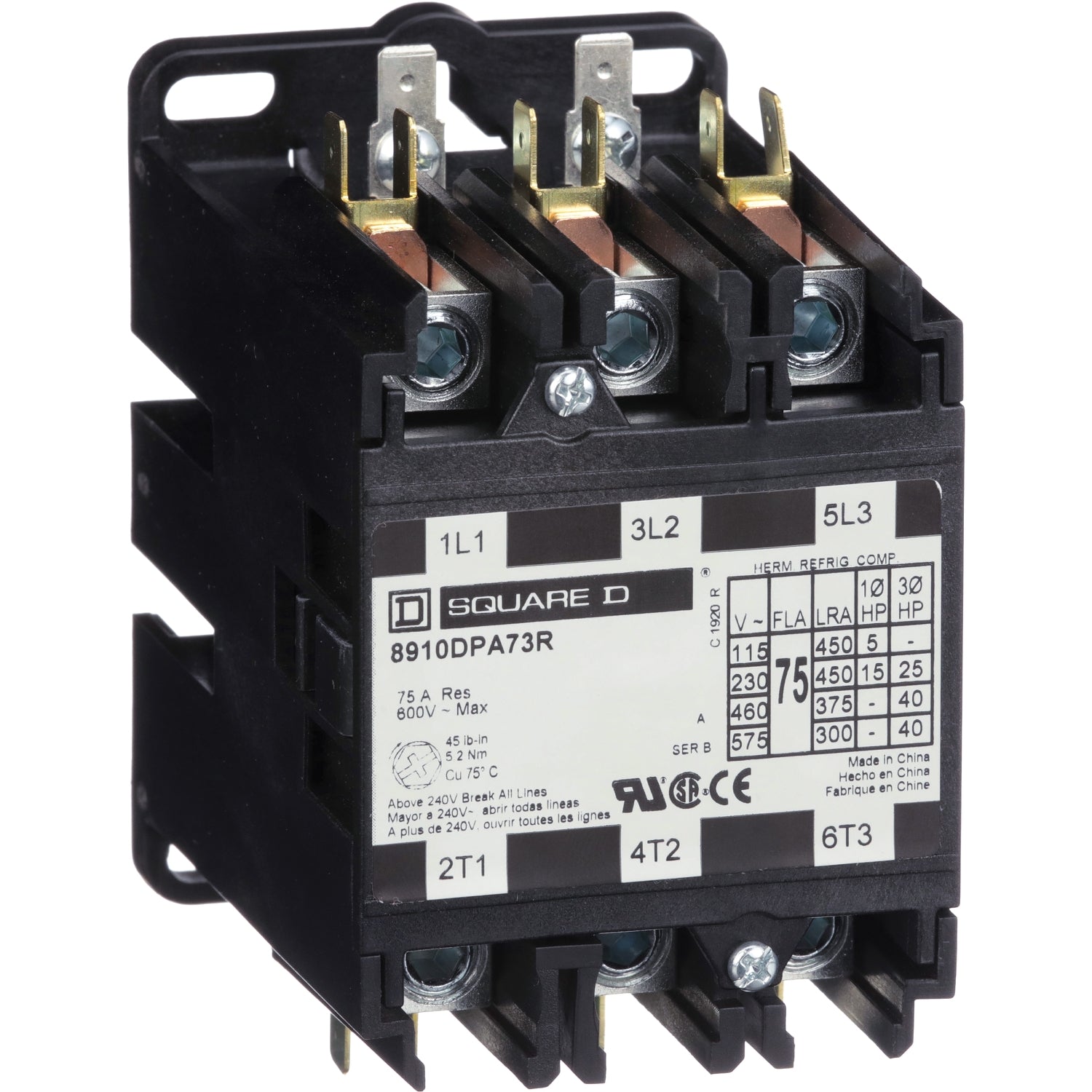

Square D 8910DPA73RV09 - Definite Purpose Contactor 75A 3-Pole
Square D 8910DPA73RV09 - Definite Purpose Contactor 75A 3-Pole

Square D 8910DPA73RV09 - Definite Purpose Contactor 75A 3-Pole

Square D
Price
Save $-1.78
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D 8910DPA73RV09 is a definite purpose contactor designed for motor control applications requiring reliable switching of three-phase motors. This 75-amp, 3-pole contactor operates with a 208-240 VAC coil and supports motors up to 40 HP at 575 VAC, featuring an open frame design with quick connect terminals and binder head screws for straightforward wiring. The unit measures 3.7 inches in height, 4.10 inches in width, and 2.6 inches in depth, weighing 1.5 lb, and is constructed for non-reversing motor control with a maximum voltage rating of 600 VAC. It is certified under CSA, EU RoHS, REACH, and UL Listed, ensuring compliance with North American and European standards. Typical industrial applications include HVAC systems, pumps, compressors, and other machinery requiring a definite purpose contactor for motor starting and stopping.

Key Features & Specifications
  • Type: Definite Purpose Contactor
  • Amperage: 75 Amps
  • Voltage Rating: 600 VAC max
  • Coil Voltage: 208-240 VAC, 50/60 Hz
  • Poles: 3 Pole
  • Horsepower Rating: 40 HP at 575 VAC, 3 phase
  • Mounting Type: Open Frame
  • Non-Reversing Contactor
  • Quick Connect Terminals
  • Binder Head Screws for Wiring
  • Interrupt Rating: Definite Purpose
  • Series/Frame: 8910 Series
  • Certification: CSA, EU RoHS, REACH, UL Listed
  • Country of Origin: China
  • Dimensions: 3.7 in (92.8 mm) x 4.10 in (104.03 mm) x 2.6 in (65 mm) (Height x Width x Depth)
  • Weight: 1.5 lb


Product Identification
  • UPC: 785901768371
