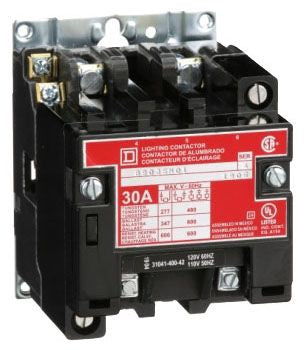

Square D 8903SMO1V02 - Lighting Contactor 30A 600V (2-Pole Solid State)
Square D 8903SMO1V02 - Lighting Contactor 30A 600V (2-Pole Solid State)

Square D 8903SMO1V02 - Lighting Contactor 30A 600V (2-Pole Solid State)

Square D
Price
Save $27.07
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Square D 8903SMO1V02 is a Type S multipole lighting contactor designed for reliable switching and protection of lighting and resistive loads. This 2-pole, 1-phase device is rated for 30A at 600VAC with a solid-state protection system providing LSIGA functions (Long-Time, Short-Time, Instantaneous, and Ground Fault Alarm), and includes a 110 VAC coil with a maximum coil voltage of 120V. It features a draw-out connection, measures 3.5 in x 3.2 in x 4.2 in (89 mm x 82 mm x 107 mm), weighs 3.02 lb, and is constructed without auxiliary contacts. The contactor is CSA certified and UL Listed, with an AIC rating of 100kA at 480V, making it suitable for industrial lighting control panels and motor control centers requiring coordinated protection and alarm capabilities.

Key Features & Specifications
  • Type: Type S multipole lighting contactor, solid-state protection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 3.5 in (89 mm) x 3.2 in (82 mm) x 4.2 in (107 mm) (H x W x D)
  • Weight: 3.02 lb
  • Standards: CSA, UL Listed
  • Applications: Industrial lighting control, motor control centers
  • Switch Type: Contactor
  • Configuration: 2-pole, 1-phase
  • Coil Voltage Maximum: 120V
  • Phase: 1
  • Amperage: 30A
  • AIC rating: 100kA@480V
  • Connection: Draw-Out
  • Poles: 2
  • Protection: Solid State (LSIGA)
  • Functions: Long-Time, Short-Time, Instantaneous, Ground Fault Alarm
  • Aux Contacts: Without
  • Enclosure: Not specified
  • Certification: CSA, UL Listed
  • Installation Type: Draw-out
  • Nema Starter Size: Not specified
  • Breaker Frame: Not specified
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901619536
  • GTIN: 785901619536
