Schneider Electric 8903LXG40V02CG101R6 - 4-Pole Contactor 30A 600V
Schneider Electric 8903LXG40V02CG101R6 - 4-Pole Contactor 30A 600V

Schneider Electric 8903LXG40V02CG101R6 - 4-Pole Contactor 30A 600V

Schneider Electric
Price
Save $-824.79
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

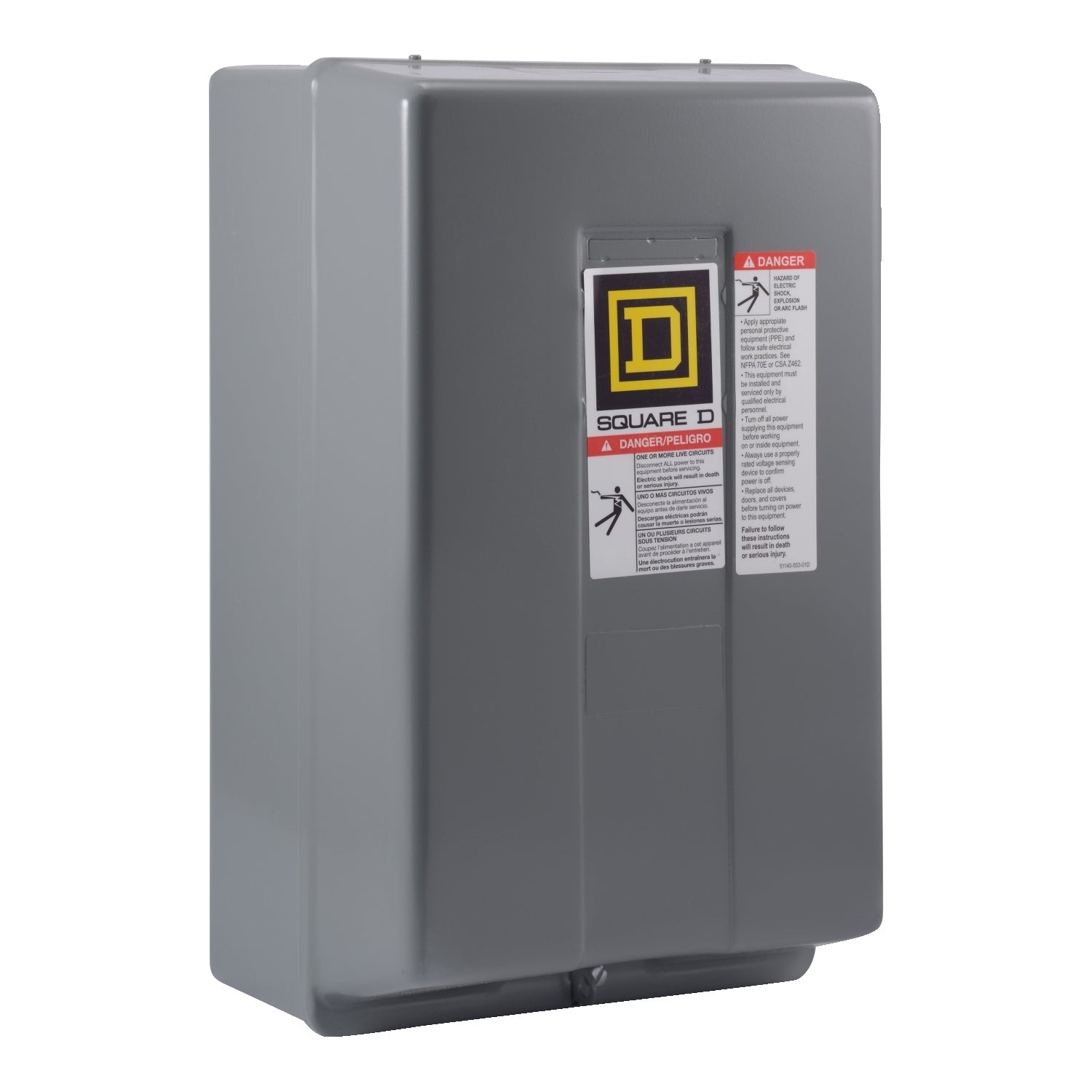

Schneider Electric 8903LXG40V02CG101R6 is a Type L multipole lighting contactor designed for motor control and lighting management applications. This mechanically held 4-pole contactor operates with a 110/120VAC 50/60Hz coil and supports a 30 amp rating with a maximum switching voltage of 600V. The unit is housed in a NEMA 1 enclosure measuring 11.89 inches high, 4.44 inches wide, and 3.09 inches deep, weighing 17 lb, and features field-convertible contacts with normally open and normally closed indicators. It is UL Listed and CSA Certified for reliable performance in industrial environments. Typical applications include motor control, lighting management, and electrical heating control in commercial and industrial facilities.

Key Features & Specifications
  • Type: L Multipole Lighting Contactor
  • Amperage: 30 Amp
  • Voltage: 600V max switching voltage
  • Coil Voltage: 110/120VAC 50/60Hz
  • Poles: 4 Pole
  • Mounting Type: NEMA 1 enclosure
  • Mechanically held
  • Field-convertible contacts with N.O. and N.C. indicators
  • Dimensions: Height 11.89 in (302 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
  • Weight: 17 lb
  • Certification: UL listed - CSA
