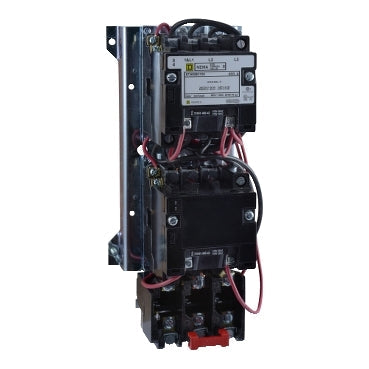

Square D 8736SCO7V02H200S - NEMA Motor Starter 200A 600V (3-Phase)
Square D 8736SCO7V02H200S - NEMA Motor Starter 200A 600V (3-Phase)

Square D 8736SCO7V02H200S - NEMA Motor Starter 200A 600V (3-Phase)

Square D
Price
Save $-561.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D 8736SCO7V02H200S is a NEMA-rated motor starter designed for protecting and controlling industrial motors. This unit operates at a maximum voltage of 600V AC and supports a current rating of up to 200A, with a full load amp range of 90-200A. The starter measures 11.52 inches in height, 5.47 inches in width, and 5.31 inches in depth, weighing 7.89 lb, and features a NEMA 1 enclosure for general-purpose indoor use. It complies with UL and CSA standards, ensuring reliable performance in demanding environments. Typical applications include conveyors, pumps, and compressors in manufacturing and processing facilities.

Key Features & Specifications
  • Type: NEMA motor starter with electromechanical operation
  • Voltage Rating: 600V AC
  • Current Rating: 200A (Full Load Amps: 90-200A)
  • Dimensions: 11.52 in (292.61 mm) x 5.47 in (138.94 mm) x 5.31 in (134.87 mm) (Height x Width x Depth)
  • Standards: UL, CSA
  • Applications: Conveyors, pumps, compressors
  • Switch Type: Non-reversing
  • Configuration: 3-pole
  • Coil Voltage Maximum: 120V AC
  • Temp Rating: 40°C
  • Shipping Dimensions: 12.5 in x 6.5 in x 6.0 in
  • Phase: 3-phase
  • Voltage: 600V AC
  • Amperage: 200A
  • AIC rating: 10kA at 600V AC
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Overload relay
  • Functions: Motor starting and stopping
  • Frame Size: NEMA Size 4
  • Trip Type: Thermal
  • Panel Type: NEMA 1
  • Breaker Type: Not applicable
  • Control Voltage Minimum: 110V AC
  • Control Voltage Maximum: 120V AC
  • MCM Size: Not applicable
  • Metal Type: Steel
  • Panel Style: Enclosed
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: 105°C
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: 10
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Panel mount
  • Hz: 50/60 Hz
  • Coil Material: Copper
  • Horse Power: 100 HP at 600V
  • Aux Contacts: 2 N.O. + 2 N.C.
  • CPT: Not included
  • Full Load Amps: 90-200A
  • Dist Voltage: 600V AC
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 200A
  • Full Load Amp Minimum: 90A
  • Enclosure: NEMA 1
  • Relay Style: Thermal overload
  • Coil Voltage Minimum: 110V AC
  • Wire: Not specified
  • Amperage Maximum: 200A
  • Amperage Minimum: 90A
  • Nema Rating: NEMA Size 4
  • Switch Style: Non-reversing
  • Wire Size: 14 AWG to 4/0 AWG
  • Certification: UL, CSA
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: UL 508, CSA C22.2
  • Compatible Frames: NEMA Size 4
  • Installation Type: Panel mount
  • Item QTY: 1
  • Nema Starter Size: Size 4
  • Breaker Frame: Not applicable
  • Current Rating: 200A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 40°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 785901873600
  • GTIN: 00785901873600
