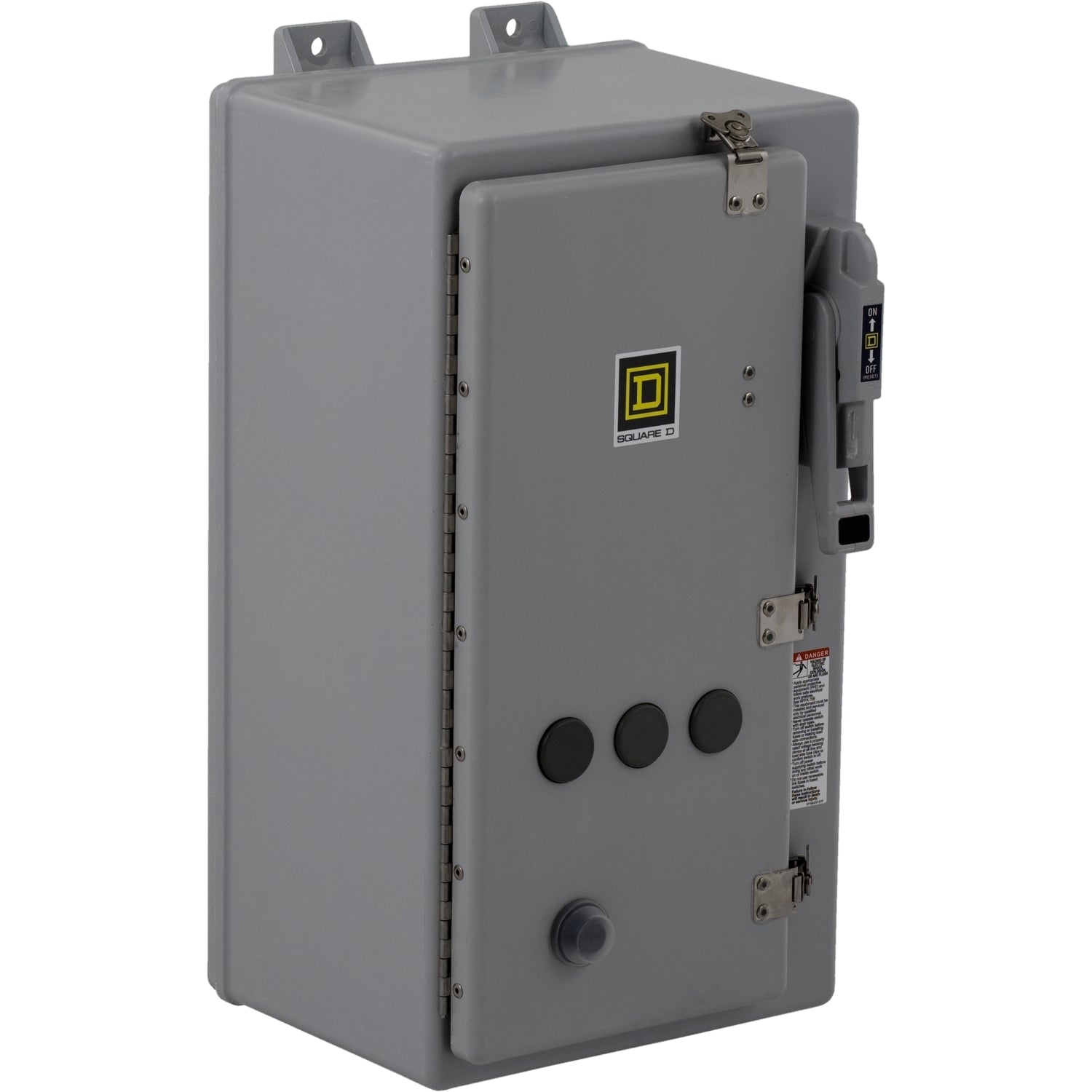

Square D 8538SCW22V02S - NEMA Motor Starter Size 2 (600VAC, 27A)
Square D 8538SCW22V02S - NEMA Motor Starter Size 2 (600VAC, 27A)

Square D 8538SCW22V02S - NEMA Motor Starter Size 2 (600VAC, 27A)

Square D
Price
Save $-2,259.95
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D 8538SCW22V02S is a NEMA-rated industrial motor starter designed for controlling and protecting three-phase AC motors in heavy-duty applications. This unit operates at a maximum voltage of 600 VAC and supports a full load current range from 0 to 27 amps, with a NEMA starter size of 2 and a NEMA 4/4X stainless steel enclosure for corrosion resistance. The device measures 26.94 inches in height, 13.72 inches in width, and 11.4 inches in depth, weighing 45.001 pounds, and is constructed with a durable metal housing for harsh environments. It complies with UL and CSA standards, ensuring reliable performance in industrial settings. Typical applications include conveyors, pumps, compressors, and other machinery requiring robust motor control in wet or corrosive areas.

Key Features & Specifications
  • Type: NEMA motor starter, electromechanical, stainless steel enclosure
  • Voltage Rating: 600 VAC
  • Current Rating: 0 - 27 A
  • Dimensions: 26.94 in (684.28 mm) x 13.72 in (348.49 mm) x 11.4 in (289.6 mm) (Height x Width x Depth)
  • Standards: UL, CSA
  • Applications: Industrial motor control for conveyors, pumps, compressors
  • Switch Type: Non-reversing
  • Configuration: 3-pole
  • Coil Voltage Maximum: 120 VAC
  • Temp Rating: 40 °C
  • Shipping Dimensions: 26.94 in x 13.72 in x 11.4 in
  • Phase: 3
  • Voltage: 600 VAC
  • Amperage: 27 A
  • AIC rating: 10 kA
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Overload relay
  • Functions: Motor starting and stopping
  • Frame Size: NEMA Size 2
  • Trip Type: Thermal
  • Panel Type: NEMA 4/4X
  • Breaker Type: Not applicable
  • Control Voltage Minimum: 110 VAC
  • Control Voltage Maximum: 120 VAC
  • MCM Size: Not applicable
  • Metal Type: Stainless steel
  • Panel Style: Enclosed
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: 105 °C
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Panel mount
  • Hz: 50/60
  • Coil Material: Copper
  • Horse Power: 10 HP at 480 VAC
  • Aux Contacts: 1 N.O. + 1 N.C.
  • CPT: Not included
  • Full Load Amps: 27 A
  • Dist Voltage: Not applicable
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 27 A
  • Full Load Amp Minimum: 0 A
  • Enclosure: NEMA 4/4X stainless steel
  • Relay Style: Overload
  • Coil Voltage Minimum: 110 VAC
  • Wire: Copper
  • Amperage Maximum: 27 A
  • Amperage Minimum: 0 A
  • Nema Rating: NEMA Size 2
  • Switch Style: Non-reversing
  • Wire Size: 14 AWG to 4 AWG
  • Certification: UL, CSA
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: UL 508, CSA C22.2
  • Compatible Frames: Not applicable
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: 2
  • Breaker Frame: Not applicable
  • Current Rating: 27 A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 40 °C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 785901894700
  • GTIN: 00785901894700
