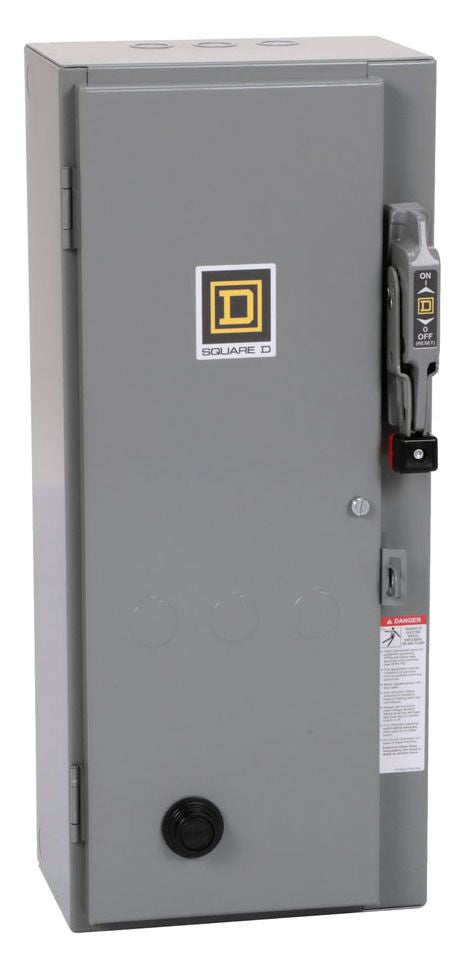

Square D 8538SCG34V02S - Motor Starter 600V 30A NEMA 1
Square D 8538SCG34V02S - Motor Starter 600V 30A NEMA 1

Square D 8538SCG34V02S - Motor Starter 600V 30A NEMA 1

Square D
Price
Save $41.61
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D 8538SCG34V02S is a non-reversing motor starter designed for protecting and controlling three-phase AC induction motors. It operates at a maximum voltage of 600V and a continuous current rating of 30A, with a solid-state protection module providing Long-Time and Instantaneous (LI) trip functions and an interrupting capacity of 65kA at 480V. The unit features a NEMA 1 general-purpose enclosure, weighs 30.73 lb, and is configured for 3-pole, bolt-on connection with a maximum coil voltage of 110 VAC, without auxiliary contacts. This motor starter is manufactured by Schneider Electric in Mexico and complies with NEMA standards for industrial motor control applications. It is typically used in industrial environments for starting and stopping motors in conveyors, pumps, fans, and other machinery requiring non-reversing operation.

Key Features & Specifications
  • Type: Motor Starter, Non-Reversing, NEMA Size 1
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Solid State, LI (Long-Time and Instantaneous)
  • AIC Rating: 65kA@480V
  • Coil Voltage Maximum: 110 VAC
  • Aux Contacts: Without
  • Phase: 3
  • Nema Rating: 1
  • Nema Starter Size: 1
  • Weight: 30.73 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901021261
  • GTIN: 785901021261
