Square D 8538SBG11V02S - Non-Reversing Motor Starter, NEMA Size 0, 18A
Square D 8538SBG11V02S - Non-Reversing Motor Starter, NEMA Size 0, 18A

Square D 8538SBG11V02S - Non-Reversing Motor Starter, NEMA Size 0, 18A

Square D
Price
Save $-492.23
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

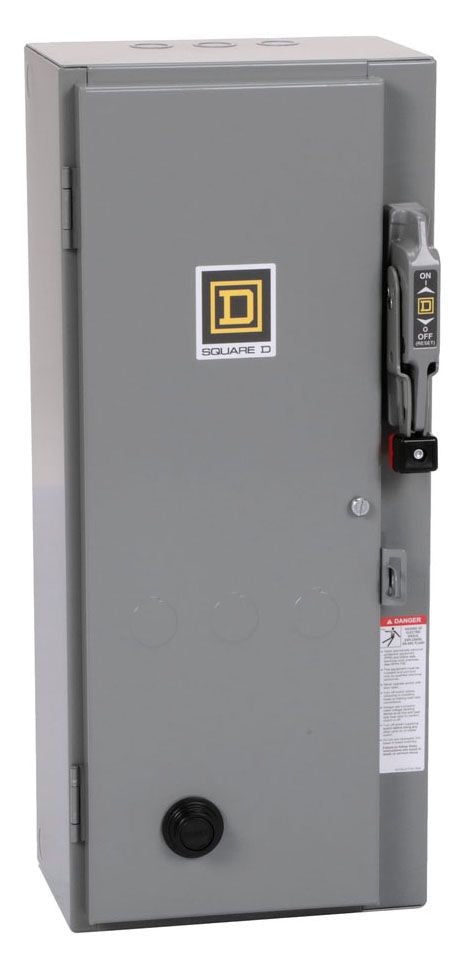

Square D 8538SBG11V02S is a non-reversing NEMA Size 0 combination magnetic motor starter designed for reliable motor control and overload protection in industrial applications. It operates with a maximum coil voltage of 110 VAC and supports 600V rated voltage, providing 18 A of current capacity for 3-phase motors up to 3 HP at 200/230 VAC and 5 HP at 460/575 VAC. The unit measures 22.5 inches in height, 9.5 inches in width, and 8.34 inches in depth, weighs 34.2 lb, and features a NEMA 1 enclosure for general-purpose protection with a thermal melting alloy trip unit. This starter is manufactured in Mexico by Schneider Electric, part of the 8538 family, and is seismic-rated for demanding environments. It is suitable for controlling polyphase motors in manufacturing, processing, and other industrial settings requiring a non-reversing, combination starter with easy-to-service contacts and coils.

Key Features & Specifications
  • Type: Non-Reversing Combination Magnetic Starter
  • Manufacturer: Schneider Electric
  • Family: 8538
  • Country of Origin: Mexico
  • Dimensions: 22.5 in H x 9.5 in W x 8.34 in D
  • Weight: 34.2 lb
  • Voltage Rating: 600V
  • Coil Voltage Maximum: 110 VAC
  • Nema Starter Size: 0
  • Aux Contacts: Without
  • Amperage Rating: 18 A
  • Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
  • Poles: 3
  • Horsepower: 3 HP at 200/230 VAC, 5 HP at 460/575 VAC
  • Enclosure Type: NEMA 1
  • Trip Unit: Thermal Melting Alloy
  • Seismic Rated: Yes
  • Operating Temperature Range: 32 to 104 °F


Product Identification
  • UPC: 785901744542
  • GTIN: 785901744542
