Square D 8536SEO6V02 - NEMA 1 Motor Starter (27A, 600V)
Square D 8536SEO6V02 - NEMA 1 Motor Starter (27A, 600V)

Square D 8536SEO6V02 - NEMA 1 Motor Starter (27A, 600V)

Square D
Price
Save $-628.43
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

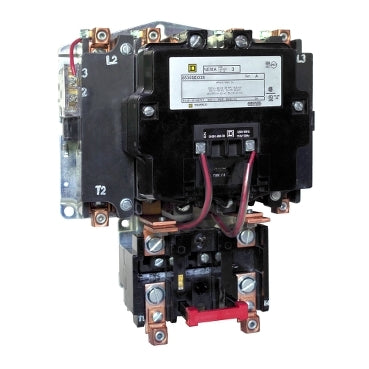

Square D 8536SEO6V02 Motor Control - Nonreversing Motor Starter (NEMA Size 1) The Square D 8536SEO6V02 is a NEMA Size 1 nonreversing motor starter designed for protecting and controlling three-phase AC induction motors. This unit integrates a magnetic contactor and overload relay, rated for a maximum coil voltage of 120V AC at 60 Hz, and is suitable for motor full-load currents up to 27 amperes. Housed in a compact NEMA 1 enclosure, the starter measures 11.09 inches in height, 5.47 inches in width, and 6.50 inches in depth, weighing 17 pounds, and features a nonreversing configuration with a standard electromechanical operation. It complies with NEMA ICS 2 and UL 508 standards for industrial control equipment. Typical applications include conveyors, pumps, fans, and compressors in manufacturing and processing facilities.

Key Features & Specifications
  • Type: NEMA Size 1, Nonreversing, Electromechanical Motor Starter with Magnetic Contactor and Overload Relay
  • Voltage Rating: 600V AC Maximum
  • Current Rating: 27 A Full Load Amps Maximum
  • Dimensions: 11.09 in (281.69 mm) x 5.47 in (138.94 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
  • Standards: NEMA ICS 2, UL 508
  • Applications: Conveyors, Pumps, Fans, Compressors
  • Switch Type: Magnetic Contactor
  • Configuration: Nonreversing
  • Coil Voltage Maximum: 120V AC
  • Temp Rating: 40°C Ambient
  • Shipping Dimensions: 12.0 in x 6.5 in x 7.5 in
  • Phase: 3
  • Voltage: 600V AC
  • Amperage: 27 A
  • AIC rating: 5 kA at 600V AC
  • Connection: Screw Terminals
  • Poles: 3
  • Protection: Overload Relay (Class 10)
  • Functions: Motor Starting, Stopping, Overload Protection
  • Frame Size: NEMA Size 1
  • Trip Type: Thermal (Bimetallic)
  • Panel Type: NEMA 1
  • Breaker Type: Not Applicable
  • Control Voltage Minimum: 110V AC
  • Control Voltage Maximum: 120V AC
  • MCM Size: Not Applicable
  • Metal Type: Steel
  • Panel Style: Enclosed
  • Bus Type: Not Applicable
  • Fuse Class: Not Applicable
  • Insulation Temperature: 105°C
  • Inductance: Not Specified
  • Impedance: Not Specified
  • Barrels: Not Applicable
  • Class Rating: NEMA Size 1
  • Diameter: Not Applicable
  • Velocity: Not Applicable
  • Clip Center: Not Applicable
  • Clas: Not Applicable
  • Mounting: Panel Mount
  • Hz: 60
  • Coil Material: Copper
  • Horse Power: 7.5 HP at 230V, 10 HP at 460V
  • Aux Contacts: 1 N.O. + 1 N.C.
  • CPT: Not Included
  • Full Load Amps: 27 A
  • Dist Voltage: Not Applicable
  • Bucket Size: Not Applicable
  • Bucket Style: Not Applicable
  • Bucket Type: Not Applicable
  • Full Load Amp Maximum: 27 A
  • Full Load Amp Minimum: 0.1 A
  • Enclosure: NEMA 1
  • Relay Style: Thermal Overload
  • Coil Voltage Minimum: 110V AC
  • Wire: Copper
  • Amperage Maximum: 27 A
  • Amperage Minimum: 0.1 A
  • Nema Rating: NEMA 1
  • Switch Style: Magnetic
  • Wire Size: 14 AWG to 4 AWG
  • Certification: UL Listed, CSA Certified
  • Circuit Breaker Mounting Style: Not Applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: NEMA ICS 2, UL 508
  • Compatible Frames: NEMA Size 1
  • Installation Type: Panel Mount
  • Item QTY: 1
  • Nema Starter Size: Size 1
  • Breaker Frame: Not Applicable
  • Current Rating: 27 A
  • Reverse Standoff Voltage: Not Applicable
  • Watts: Not Specified
  • Peak Pulse Current: Not Applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not Applicable
  • Breakdown Voltage (VBR@IT) (V): Not Applicable
  • Polarity: Not Applicable
  • Operating Temperature Maximum Celsius: 40°C
  • Max Clamp Voltage: Not Applicable
  • On-State Current: Not Applicable


Product Identification
  • UPC: 785901853609
  • GTIN: 00785901853609
