Square D 8536SCO3V02H209S - NEMA 1 Motor Starter 600V 3 Pole
Square D 8536SCO3V02H209S - NEMA 1 Motor Starter 600V 3 Pole

Square D 8536SCO3V02H209S - NEMA 1 Motor Starter 600V 3 Pole

Square D
Price
Save $282.71
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

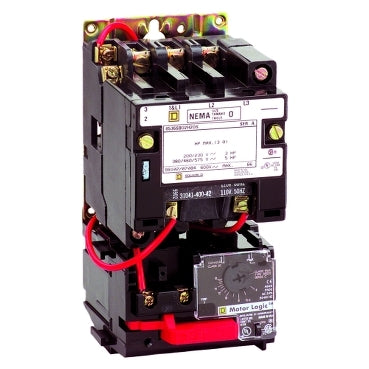

Square D 8536SCO3V02H209S is a NEMA Size 1 motor starter designed for protecting and controlling three-phase motors in industrial applications. This unit is rated for 600V AC and 3 poles, with a full load amp range suitable for Size 1 starters, and features a 3.14 lb weight with construction from Mexico by Schneider Electric. The starter includes a 120V coil, NEMA 1 enclosure, and is built with a magnetic contactor and overload relay for reliable motor protection. It complies with UL and CSA standards for industrial safety and performance. Typical applications include conveyors, pumps, fans, and compressors in manufacturing and processing facilities.

Key Features & Specifications
  • Type: NEMA Size 1 magnetic motor starter with overload relay
  • Voltage Rating: 600V AC
  • Current Rating: 27A maximum (Size 1 full load amps)
  • Poles: 3
  • Coil Voltage: 120V AC
  • Enclosure: NEMA 1
  • Weight: 3.14 lb
  • Country of Origin: Mexico
  • Standards: UL, CSA
  • Applications: Conveyors, pumps, fans, compressors
  • Nema Starter Size: 1
  • Phase: 3
  • Horse Power: Up to 10 HP at 480V
  • Aux Contacts: 1 N.O. + 1 N.C.
  • Switch Type: Magnetic contactor
  • Configuration: Non-reversing
  • Installation Type: Panel mount
  • Terminal Connection: Screw terminals
  • Frequency Rating: 60 Hz
  • Operating Temperature Maximum Celsius: 40°C


Product Identification
  • UPC: 785901399209
  • GTIN: 00785901399209
