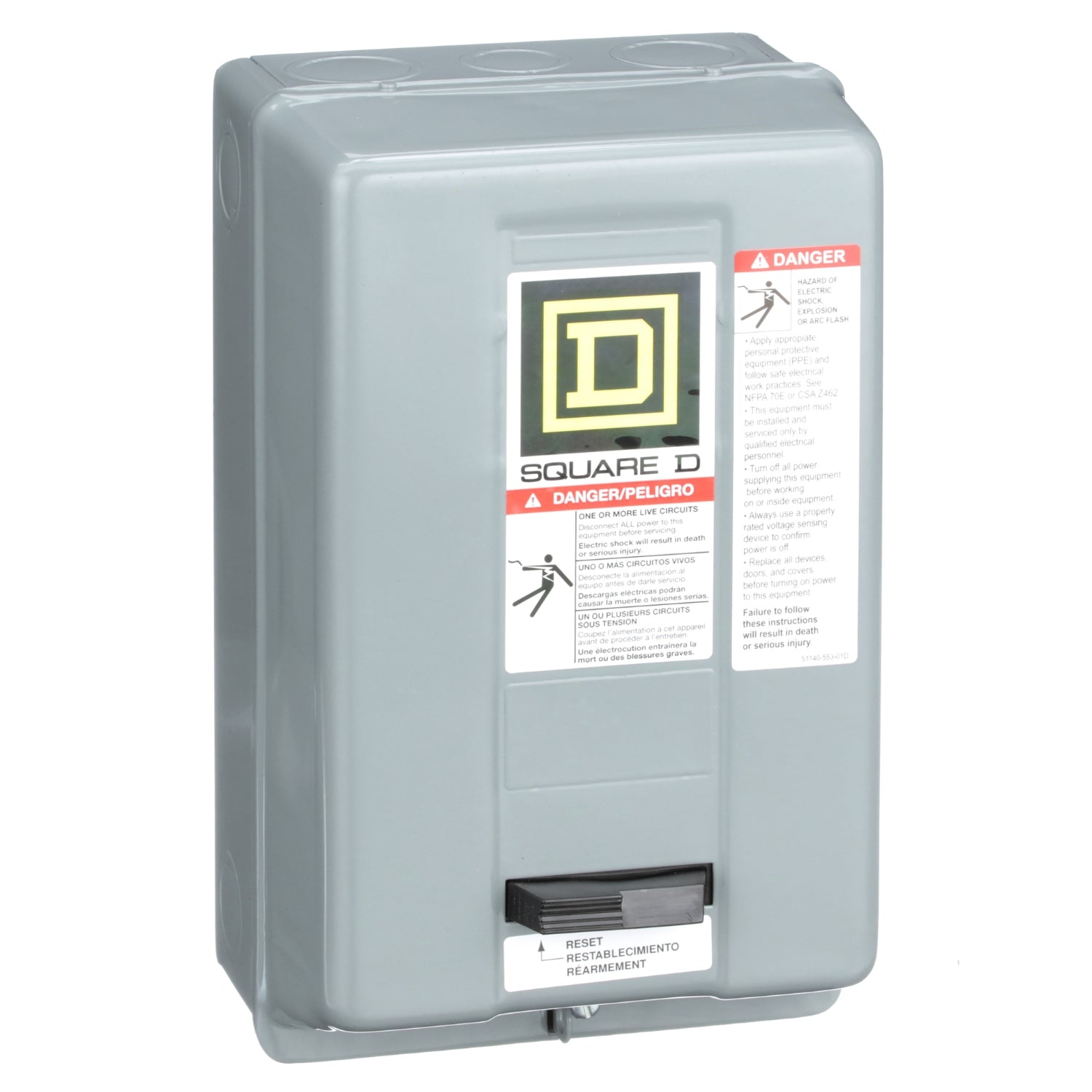

Square D 8536SCG2V02S - NEMA Motor Starter 600V 27A
Square D 8536SCG2V02S - NEMA Motor Starter 600V 27A

Square D 8536SCG2V02S - NEMA Motor Starter 600V 27A

Square D
Price
Save $-154.73
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
The Square D 8536SCG2V02S is a NEMA-rated motor starter designed for reliable motor control and protection in industrial environments. This unit operates with a maximum voltage rating of 600V and a continuous current rating of 27A, utilizing a 120 VAC coil for switching control. The starter features a compact NEMA 1 enclosure measuring 10.00 x 6.00 x 5.56 inches (254.00 x 152.40 x 141.22 mm) and weighing 7.161 lb, with a 2-pole configuration for single-phase applications. It is certified to UL, CSA, and NEMA standards, ensuring compliance with rigorous safety and performance requirements. Typical applications include controlling and protecting motors in manufacturing, HVAC, and material handling systems.

Key Features & Specifications
  • Type: NEMA Motor Starter
  • Voltage Rating: 600V
  • Current Rating: 27A
  • Coil Voltage Maximum: 120 VAC
  • Poles: 2
  • Phase: 1
  • Nema Rating: 1
  • Dimensions: 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
  • Weight: 7.161 lb
  • Certification: UL Listed; CSA; NEMA
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901094500
  • GTIN: 00785901094500
