Square D 8536SCG1V02S - Motor Starter 27A 600V NEMA 1
Square D 8536SCG1V02S - Motor Starter 27A 600V NEMA 1

Square D 8536SCG1V02S - Motor Starter 27A 600V NEMA 1

Square D
Price
Save $-119.81
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price

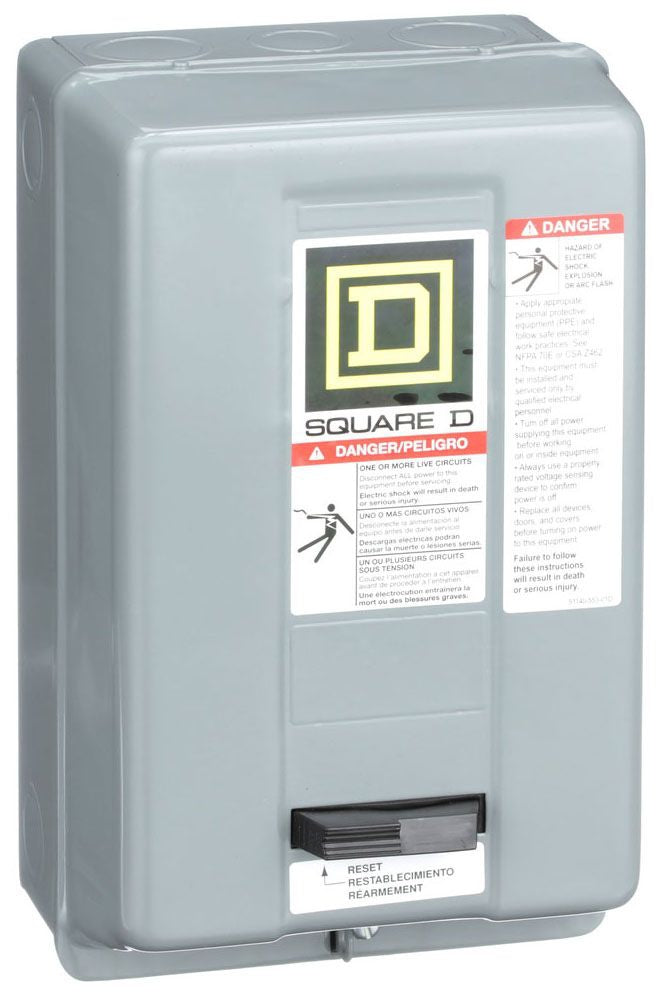

Square D 8536SCG1V02S is a NEMA Size 1 motor starter designed for protecting and controlling single-phase AC motors through solid-state overload protection. This unit operates at a maximum voltage of 600V with a continuous current rating of 27A and features a 120 VAC coil for switching control. The device measures 10.00 x 6.00 x 5.56 inches, weighs 7.22 lb, and utilizes a bolt-on connection with two poles for reliable installation. It complies with UL, CSA, and NEMA standards, offering an AIC rating of 100kA at 480V for robust fault current interruption. Typical applications include industrial motor control systems requiring LSI (Long-Time, Short-Time and Instantaneous) protection functions in NEMA 1 enclosures.

Key Features & Specifications
  • Type: NEMA Size 1 Motor Starter, Solid State Protection
  • Voltage Rating: 600V
  • Current Rating: 27A
  • Dimensions: 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
  • Weight: 7.22 lb
  • Standards: UL Listed; CSA; NEMA
  • Applications: Industrial motor control with LSI protection
  • Switch Type: NEMA 1
  • Configuration: 2-Pole, Bolt-On
  • Coil Voltage Maximum: 120 VAC
  • Phase: 1
  • AIC rating: 100kA@480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Solid State
  • Functions: LSI - Long-Time, Short-Time and Instantaneous
  • Nema Starter Size: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901608592
  • GTIN: 00785901608592
