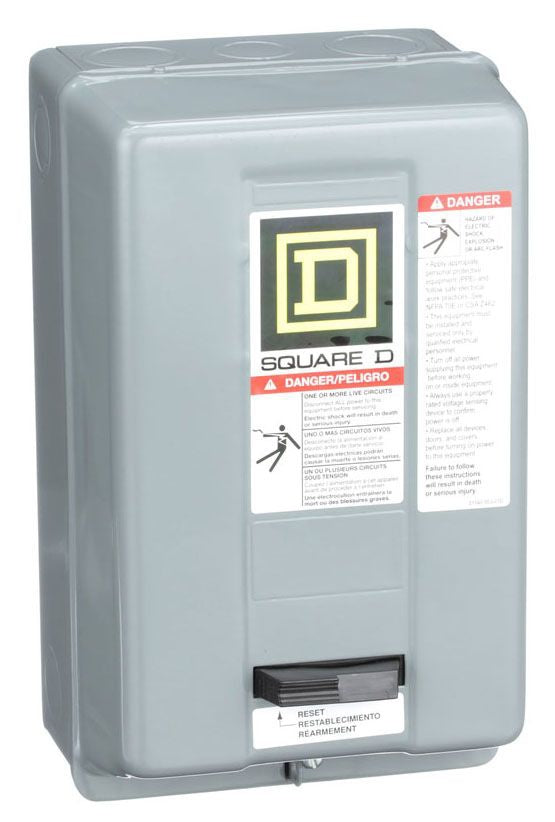

Square D 8536SBG1V02S - Motor Starter 18A 600V 2-Pole
Square D 8536SBG1V02S - Motor Starter 18A 600V 2-Pole

Square D 8536SBG1V02S - Motor Starter 18A 600V 2-Pole

Square D
Price
Save $77.03
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Square D 8536SBG1V02S is a NEMA Size 0 non-reversing motor starter designed for solid-state motor protection with LSI (Long-Time, Short-Time and Instantaneous) trip functions. It operates at a maximum voltage rating of 600V and a continuous current rating of 18A, with a maximum coil voltage of 120 VAC and an AIC rating of 100kA at 480V. This 2-pole, bolt-on unit measures 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) and weighs 7.23 lb, constructed for single-phase applications. It is CSA and UL Listed, ensuring compliance with North American safety and performance standards. Typical industrial applications include controlling and protecting single-phase motors in conveyors, pumps, and fans requiring precise overload and short-circuit protection.

Key Features & Specifications
  • Type: Motor Starter, Non-Reversing, NEMA Size 0
  • Voltage Rating: 600V
  • Current Rating: 18A
  • Dimensions: 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
  • Weight: 7.23 lb
  • Standards: CSA, UL Listed
  • Applications: Industrial motor control for single-phase motors
  • Poles: 2
  • Connection: Bolt-On
  • Coil Voltage Maximum: 120 VAC
  • Protection: Solid State
  • AIC rating: 100kA@480V
  • Phase: 1
  • Functions: LSI - Long-Time, Short-Time and Instantaneous
  • Nema Starter Size: 0
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901080312
  • GTIN: 785901080312
