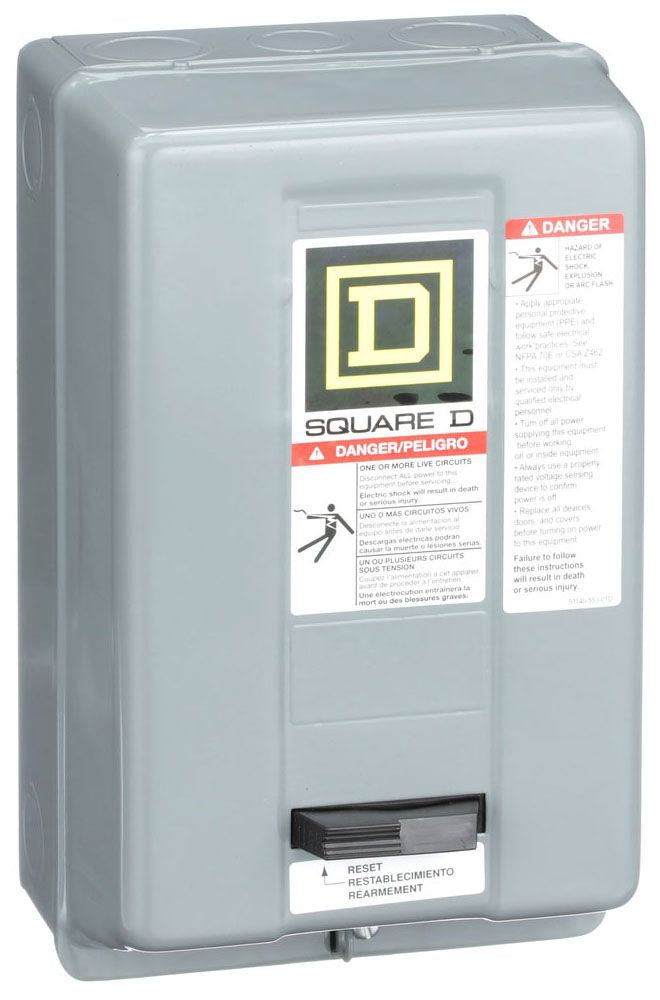

Square D 8536SAG11V02S - Motor Starter 9A 600V NEMA Size 0
Square D 8536SAG11V02S - Motor Starter 9A 600V NEMA Size 0

Square D 8536SAG11V02S - Motor Starter 9A 600V NEMA Size 0

Square D
Price
Save $68.97
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D 8536SAG11V02S is a non-reversing motor starter designed for protecting and controlling single-phase AC motors. This unit operates at a maximum voltage rating of 600V and a continuous current rating of 9 Amps, with a maximum coil voltage of 120 VAC and a high interrupting capacity of 65kA at 480V. The device features a compact NEMA Size 0 frame, measures 10.00 x 6.00 x 5.56 inches (254.00 x 152.40 x 141.22 mm), weighs 7.12 lb, and utilizes a bolt-on connection with solid-state protection. It is UL Listed, CSA certified, and meets NEMA standards for reliable industrial performance. Typical applications include controlling conveyors, pumps, and fans in manufacturing and processing environments.

Key Features & Specifications
  • Type: Non-reversing motor starter with solid-state protection
  • Voltage Rating: 600V
  • Current Rating: 9 Amps
  • Dimensions: 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
  • Weight: 7.12 lb
  • Standards: UL Listed; CSA; NEMA
  • Applications: Conveyors, pumps, fans
  • Poles: 2
  • Connection: Bolt-On
  • Coil Voltage Maximum: 120 VAC
  • AIC rating: 65kA@480V
  • Nema Rating: 00
  • Phase: 1
  • Nema Starter Size: 0
  • Functions: LIT - Long-Time, Instantaneous and Targets
  • Protection: Solid State
  • Certification: UL Listed; CSA; NEMA
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901018711
  • GTIN: 00785901018711
