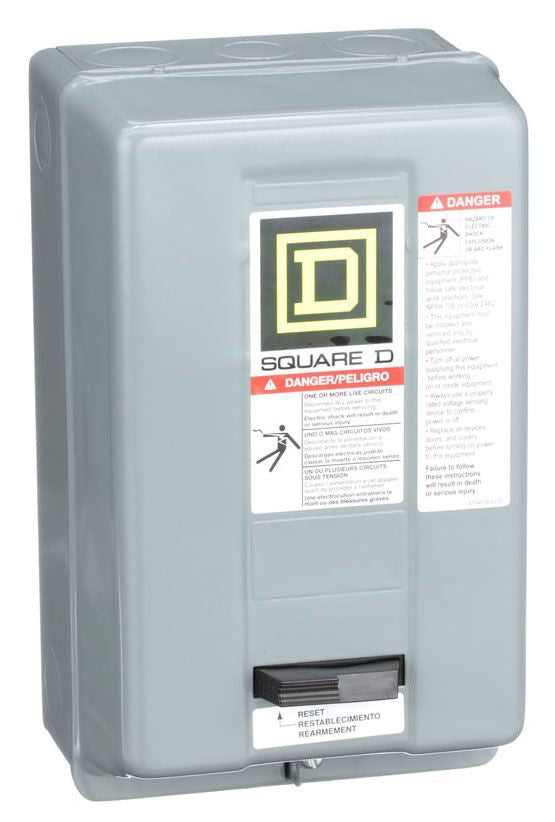

Square D 8536SAG11V02 - Motor Starter, 9A, 600V, NEMA 0
Square D 8536SAG11V02 - Motor Starter, 9A, 600V, NEMA 0

Square D 8536SAG11V02 - Motor Starter, 9A, 600V, NEMA 0

Square D
Price
Save $21.02
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
The Square D 8536SAG11V02, manufactured by Schneider Electric, is a non-reversing motor starter designed for the protection and control of single-phase motors. This unit operates with a maximum coil voltage of 120 VAC and a voltage rating of 600V, supporting a current rating of 9 Amps with a solid-state protection system featuring Long-Time, Instantaneous, and Target (LIT) functions. Physically, it is a NEMA Size 0 starter with a 2-pole, bolt-on connection, housed in dimensions of 10.00 x 6.00 x 5.56 inches (Height x Width x Depth) and weighing 7.059 lb. The device is CSA and UL Listed, certified with an AIC rating of 65kA at 480V, and is manufactured in Mexico. Typical industrial applications include controlling and protecting small motors in machinery, conveyors, and pumps where reliable, non-reversing operation is required.

Key Features & Specifications
  • Type: Non-Reversing Motor Starter, NEMA Size 0
  • Voltage Rating: 600V
  • Current Rating: 9 Amps
  • Dimensions: 10.00 in (254.00 mm) x 6.00 in (152.40 mm) x 5.56 in (141.22 mm) (Height x Width x Depth)
  • Weight: 7.059 lb
  • Standards: CSA, UL Listed
  • Applications: Motor control for machinery, conveyors, pumps
  • Switch Type: Non-Reversing
  • Configuration: 2-Pole, Bolt-On
  • Coil Voltage Maximum: 120 VAC
  • Phase: 1
  • AIC rating: 65kA@480V
  • Protection: Solid State (LIT - Long-Time, Instantaneous and Targets)
  • Nema Starter Size: 0
  • Nema Rating: 00
  • Connection: Bolt-On
  • Poles: 2
  • Functions: LIT - Long-Time, Instantaneous and Targets
  • Certification: CSA, UL Listed
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901080374
  • GTIN: 785901080374
