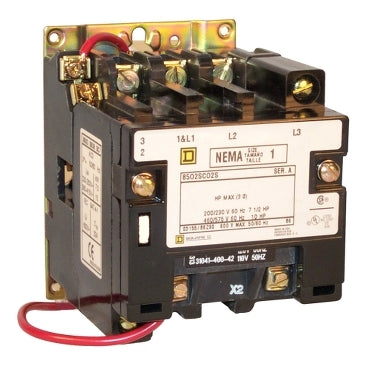

Square D 8502SCO2V02SX11 - NEMA Size 1 Contactor 27A 110/120VAC
Square D 8502SCO2V02SX11 - NEMA Size 1 Contactor 27A 110/120VAC

Square D 8502SCO2V02SX11 - NEMA Size 1 Contactor 27A 110/120VAC

Square D
Price
Save $-373.80
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D 8502SCO2V02SX11 is a NEMA Size 1 Type S nonreversing contactor designed for motor control applications requiring reliable switching of three-phase loads. This 3-pole contactor is rated for 27 amperes with a 110/120 VAC coil and supports up to 10 HP at 575 VAC, providing robust performance for industrial equipment. Constructed as an open magnetic contactor, it measures 4.34 in (110.24 mm) x 3.73 in (94.79 mm) x 4.22 in (107.19 mm) and weighs 3.999 lb, with a serviceable design for long mechanical life. It is TAA compliant and manufactured in Mexico by Schneider Electric, ensuring adherence to industry standards for safety and durability. Typical applications include switching heating loads, capacitors, transformers, and electric motors where overload protection is provided separately.

Key Features & Specifications
  • Manufacturer: Schneider Electric
  • Part Number: 8502SCO2V02SX11
  • Type: NEMA Size 1, Type S Nonreversing Contactor
  • Poles: 3 Pole
  • Amperage: 27 A
  • Coil Voltage: 110/120 VAC, 50/60 Hz
  • Horsepower Rating: 7.5 HP at 200/230 VAC, 10 HP at 460/575 VAC
  • Phase: 3 Phase
  • Mounting: Open Magnetic Contactor (no enclosure)
  • Interrupt Rating: Up to 100 kA
  • Certifications: TAA Compliant
  • Country of Origin: Mexico
  • Dimensions: 4.34 in (110.24 mm) x 3.73 in (94.79 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
  • Weight: 3.999 lb
