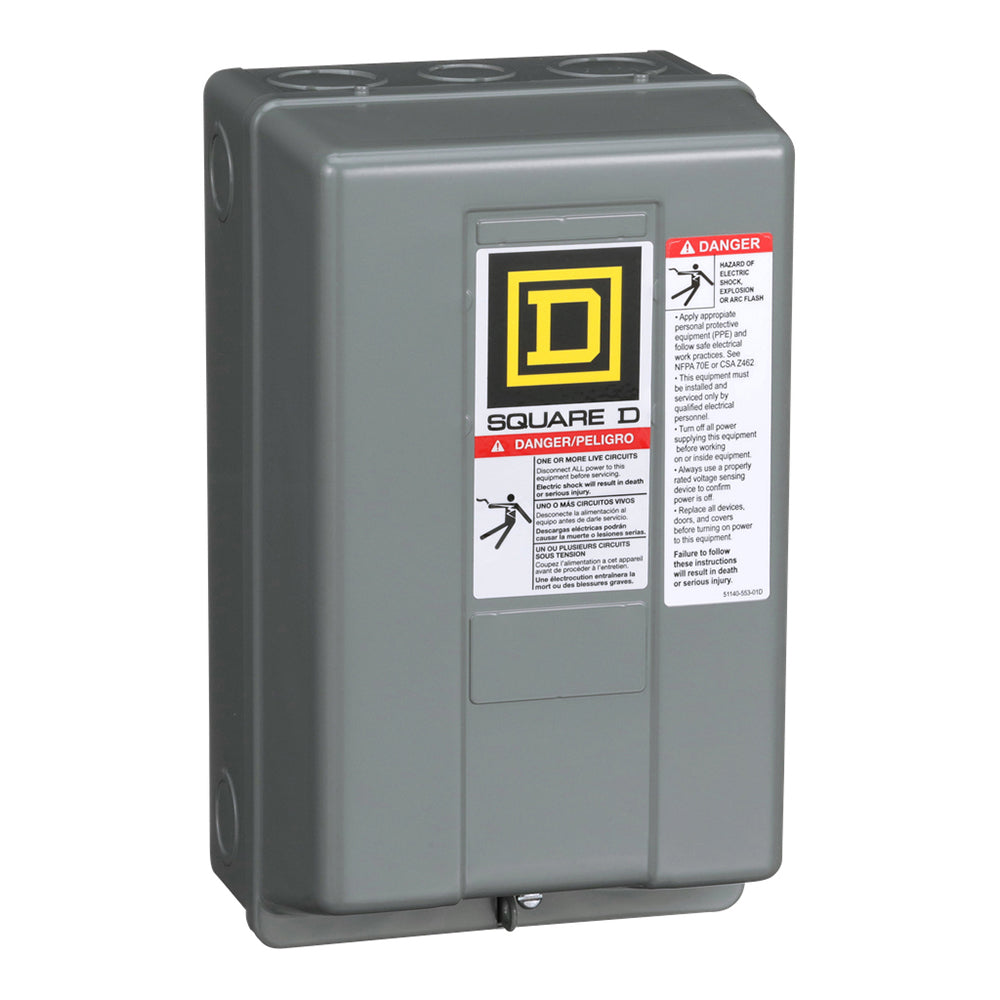

Square D 8502SCG2V02S - NEMA Type S Contactor 600V 27A 3-Pole
Square D 8502SCG2V02S - NEMA Type S Contactor 600V 27A 3-Pole

Square D 8502SCG2V02S - NEMA Type S Contactor 600V 27A 3-Pole

Square D
Price
Save $42.22
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Square D 8502SCG2V02S is a NEMA Type S contactor designed for motor control and switching applications. This 3-pole, non-reversing contactor is rated for 600V AC and 27A continuous current, with a 110 VAC coil operating within a 110-120 VAC control voltage range. The unit measures 10 inches in height by 6.0 inches in width by 5.3 inches in depth, weighs 6.42 lb, and is constructed as a NEMA Starter Size 1 device without auxiliary contacts. It is CSA certified and UL listed under file E78351 CCN NLDX, meeting rigorous North American industrial standards. Typical applications include controlling three-phase motors and other industrial loads in manufacturing, processing, and HVAC systems.

Key Features & Specifications
  • Type: NEMA Type S Contactor, Non-Reversing
  • Voltage Rating: 600V AC
  • Current Rating: 27A
  • Dimensions: 10 in (254 mm) x 6.0 in (152 mm) x 5.3 in (134 mm) (Height x Width x Depth)
  • Weight: 6.42 lb
  • Standards: CSA, UL E78351 CCN NLDX
  • Applications: Motor control, industrial switching, HVAC systems
  • Configuration: Non-Reversing
  • Poles: 3
  • Coil Voltage Maximum: 120 VAC
  • Coil Voltage Minimum: 110 VAC
  • Phase: 3
  • Nema Starter Size: 1
  • Aux Contacts: Not Included
  • Additional Info: Includes 110 VAC coil


Product Identification
  • UPC: 785901866329
  • GTIN: 785901866329
