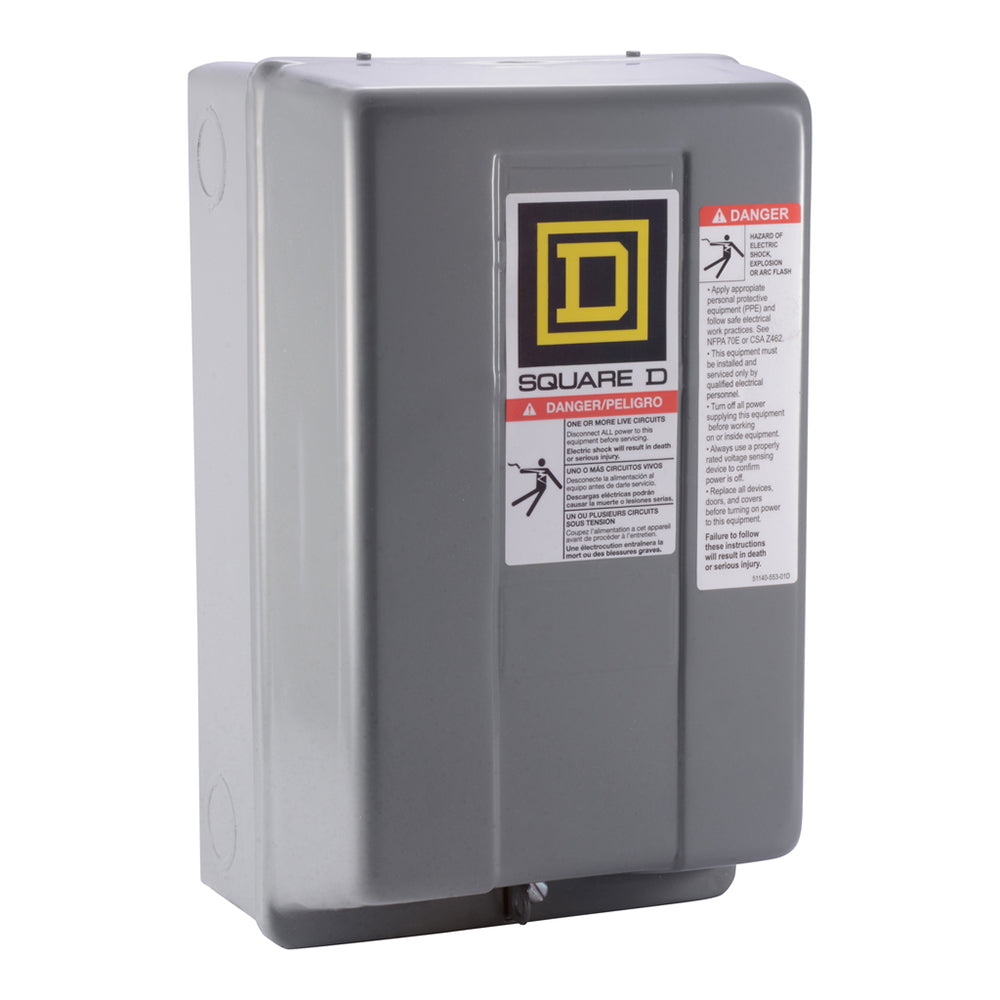

Square D 8502SBG2V02S - NEMA Size 0 Contactor 600V 18A
Square D 8502SBG2V02S - NEMA Size 0 Contactor 600V 18A

Square D 8502SBG2V02S - NEMA Size 0 Contactor 600V 18A

Square D
Price
Save $58
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
The Square D 8502SBG2V02S is a NEMA Type S contactor designed for motor control and protection. This non-reversing, 3-pole contactor is rated for 600V and 18A, with a solid-state LSIG (Long-Time, Short-Time, Instantaneous and Ground Fault) protection function and a 65kA interrupting capacity at 480V. It measures 10 in x 6.0 in x 5.3 in (HxWxD), weighs 6.561 lb, and features a bolt-on connection with a 110-120 VAC coil range. The unit is CSA certified and UL listed (E78351 CCN NLDX), and is manufactured in Mexico by Schneider Electric. This contactor is suitable for industrial motor starting and protection applications requiring NEMA Size 0 configuration.

Key Features & Specifications
  • Type: NEMA Type S Contactor, Non-Reversing
  • Voltage Rating: 600V
  • Current Rating: 18A
  • Dimensions: 10 in (254 mm) x 6.0 in (152 mm) x 5.3 in (134 mm) (Height x Width x Depth)
  • Weight: 6.561 lb
  • Standards: CSA, UL E78351 CCN NLDX
  • Applications: Industrial motor starting and protection
  • Configuration: Non-Reversing
  • Coil Voltage Maximum: 120 VAC
  • Coil Voltage Minimum: 110 VAC
  • AIC rating: 65kA@480V
  • Phase: 3
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Solid State (LSIG)
  • Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
  • Nema Starter Size: 0
  • Aux Contacts: Auxiliary Contacts Not Included
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901866220
  • GTIN: 00785901866220
