Square D 8501XTE2 - Control Relay 120V AC 10A DPDT
Square D 8501XTE2 - Control Relay 120V AC 10A DPDT

Square D 8501XTE2 - Control Relay 120V AC 10A DPDT

Square D
Price
Save $-583.18
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

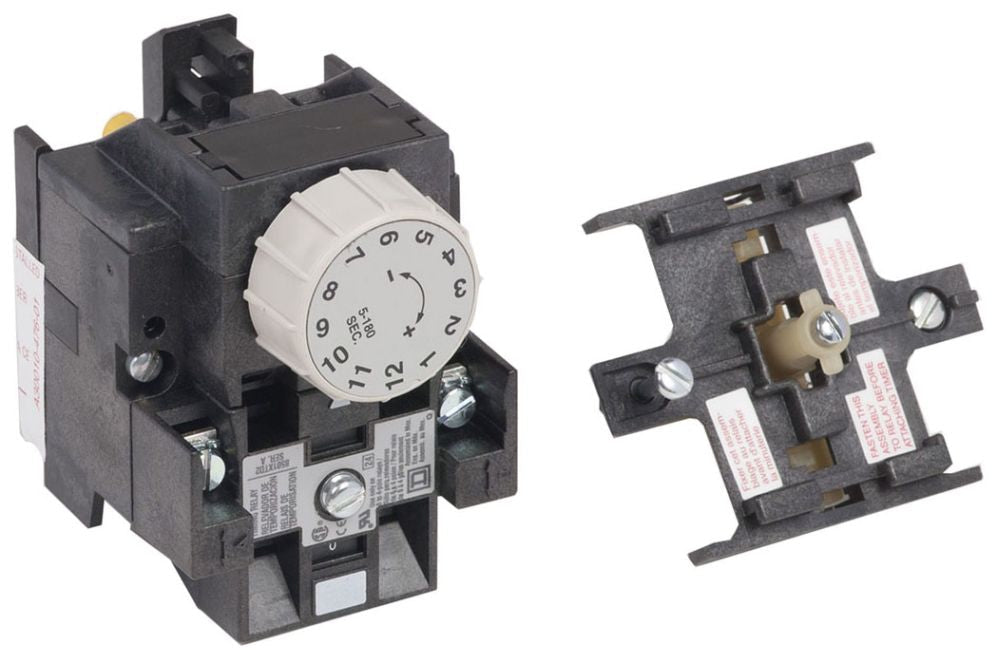

Square D 8501XTE2 is a Type X general-purpose industrial control relay designed for switching and isolating electrical loads in automation systems. This relay operates with a 120V AC coil voltage and supports a current rating of 10A for resistive loads, ensuring reliable control in moderate-power circuits. The device features a compact, open-style construction with a 2-pole double-throw (DPDT) contact configuration, weighing 0.78 lb and measuring approximately 2.5 inches in height, 1.5 inches in width, and 1.5 inches in depth. It complies with NEMA and UL standards for industrial control equipment, providing robust performance in harsh environments. Typical applications include motor control, conveyor systems, and general-purpose switching in manufacturing and process industries.

Key Features & Specifications
  • Type: General-purpose electromechanical control relay, open-style, DPDT contact configuration
  • Voltage Rating: 120V AC coil voltage
  • Current Rating: 10A resistive
  • Dimensions: 2.5 in H x 1.5 in W x 1.5 in D
  • Standards: NEMA, UL listed
  • Applications: Motor control, conveyor systems, general industrial switching
  • Switch Type: Double-throw
  • Configuration: 2-pole DPDT
  • Coil Voltage Maximum: 120V AC
  • Temp Rating: -20°C to 55°C
  • Shipping Dimensions: 3 in x 2 in x 2 in
  • Phase: Single-phase
  • Voltage: 120V AC
  • Amperage: 10A
  • Connection: Screw terminals
  • Poles: 2
  • Protection: Overload not integrated
  • Functions: Switching and isolation
  • Frame Size: NEMA Size 0
  • Mounting: Panel mount
  • Hz: 50/60 Hz
  • Coil Material: Copper
  • Horse Power: 1/3 HP at 120V AC
  • Aux Contacts: None
  • Enclosure: Open (no enclosure)
  • Relay Style: Industrial control
  • Wire: 14 AWG max
  • Wire Size: 14 AWG
  • Certification: UL, CSA
  • Terminal Connection: Screw type
  • Frequency Rating: 50/60 Hz
  • Standards: NEMA ICS, UL 508
  • Installation Type: Panel mount
  • Item QTY: 1
  • Nema Starter Size: NEMA Size 0
  • Current Rating: 10A
  • Operating Temperature Maximum Celsius: 55°C


Product Identification
  • UPC: 00783087817838
  • GTIN: 785901537366
