Square D 8501XO40XTE2V02 - NEMA Control Relay 10A 4NO
Square D 8501XO40XTE2V02 - NEMA Control Relay 10A 4NO

Square D 8501XO40XTE2V02 - NEMA Control Relay 10A 4NO

Square D
Price
Save $-156.56
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price

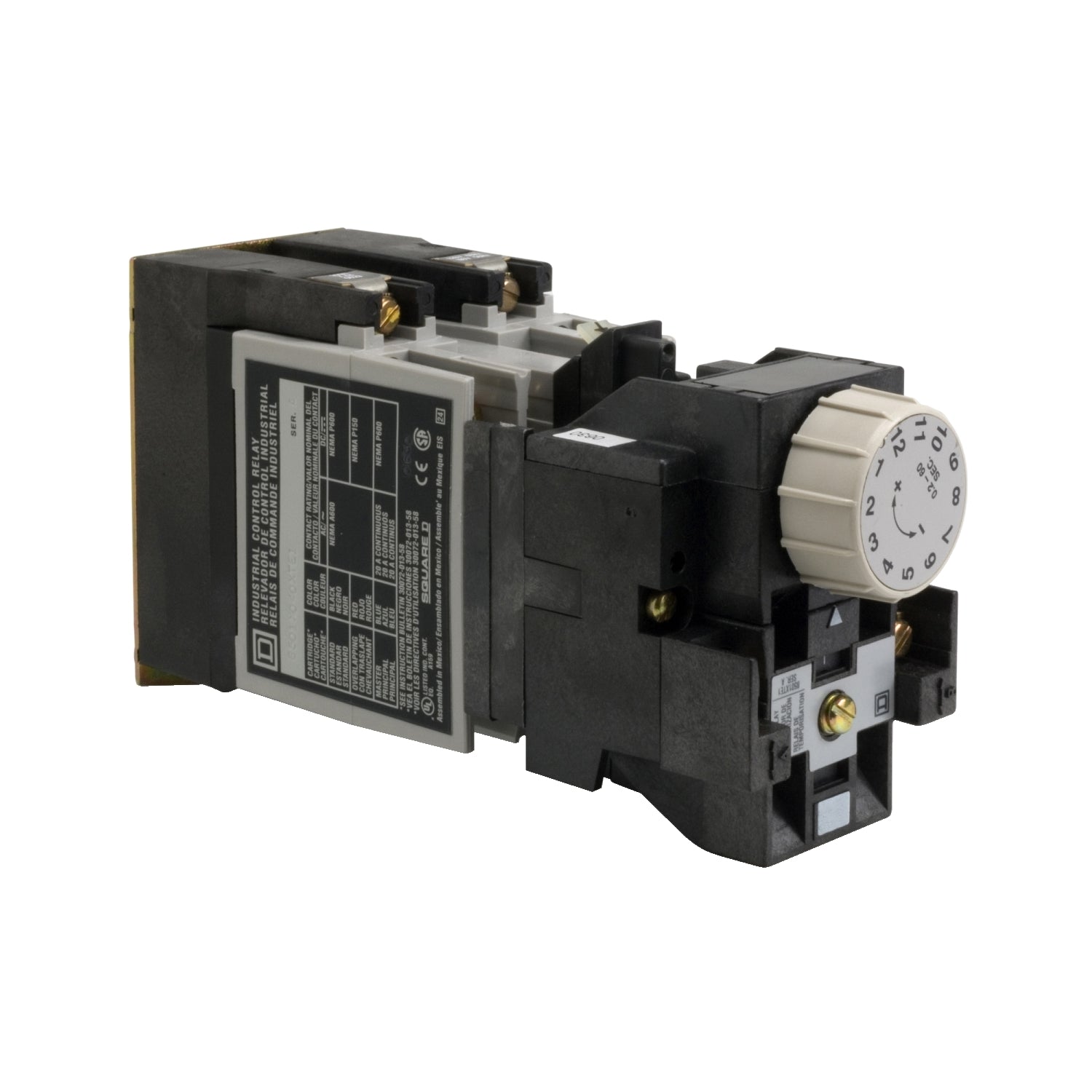

Square D 8501XO40XTE2V02 is a NEMA control relay designed for industrial and commercial motor control and machine tool applications. This Class 8501 relay operates on a 110/120VAC coil at 50/60Hz and provides a 10A continuous current rating with four normally open contacts. It features a rugged modular construction with plug-in contact cartridges for easy maintenance and contact conversion, measuring 3.5 inches in height, 2.23 inches in width, and 6.55 inches in depth, weighing 2 lb. The relay is UL listed and CSA certified for safety and compliance. It is suitable for machine tool and motor control applications in industrial environments.

Key Features & Specifications
  • Manufacturer: Schneider Electric
  • Item Subcategory: Motor Control Part And Accessory
  • Family: Class 8501
  • Country of Origin: Mexico
  • Dimensions: 3.5 in (88.9 mm) x 2.23 in (56.64 mm) x 6.55 in (166.37 mm) (Height x Width x Depth)
  • Weight: 2 lb
  • Section: Relays
  • Part Number: 8501XO40XTE2V02
  • Series: Class 8501
  • Amperage: 10A continuous
  • Voltage: 110/120VAC 50/60Hz
  • Poles: 4P
  • Contact Configuration: 4NO
  • Mounting Type: Modular, plug-in
  • Interrupt Rating: A600 inductive
  • Frame: NEMA Machine Tool
  • Certifications: UL Listed, CSA Certified
  • Operating Temperature: -40°F to 160°F
