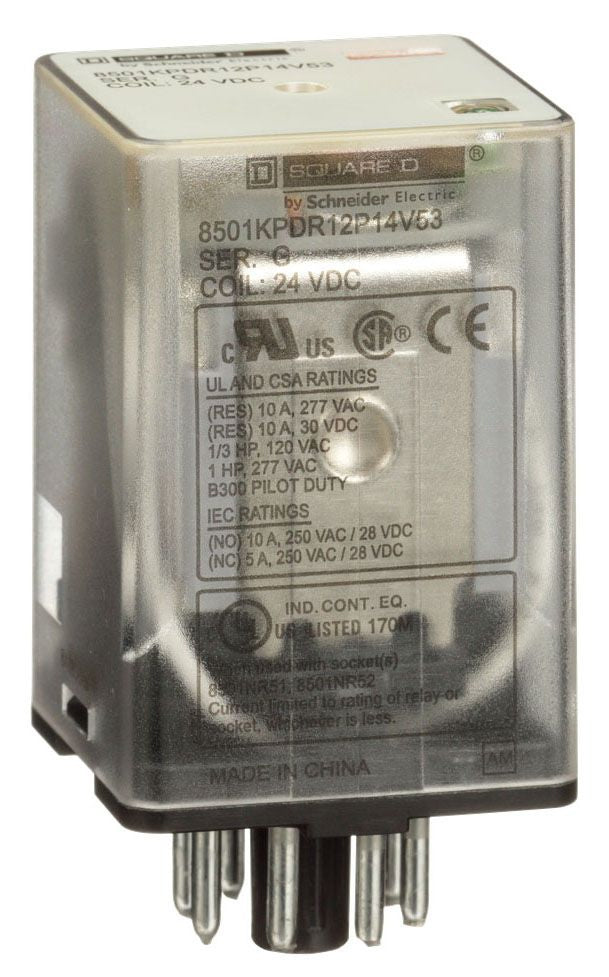

Square D 8501KPDR12P14V53 is a general purpose plug-in relay from the Harmony 8501K series designed for reliable multipole switching in motor control and industrial applications. It features a DPDT contact configuration with a 24 VDC coil voltage, supporting a 10 A resistive load at 120 VAC and 277 VAC, along with horsepower ratings of 1 HP at 277 VAC and 0.33 HP at 120 VAC. The relay measures 2.66 inches in height, 1.4 inches in width, and 1.4 inches in depth, weighs 0.2 lb, and is constructed with silver alloy (AgNi) contacts for durability, integrating an LED indicator for visual status confirmation. It is CE Marked, CSA Certified, and UL Listed, ensuring compliance with international safety and performance standards. This relay is suitable for use in control circuits up to 300 VAC and 30 VDC, with a fast operating time of 20 ms for both pick-up and drop-out, making it ideal for motor control and industrial switching applications.

Key Features & Specifications
  • Manufacturer: Schneider Electric
  • Item Subcategory: General purpose relay
  • Family: 8501K 8501K Series
  • Country of Origin: China
  • Dimensions: 2.66 in H x 1.4 in W x 1.4 in D
  • Weight: 0.2 lb
  • Certification: CE Marked, CSA Certified, UL Listed
  • Mounting Type: Socket
  • Contact Configuration: DPDT (2 NO, 2 NC)
  • Coil Voltage: 24 VDC
  • Current Rating: 10 A resistive at 120 VAC, 277 VAC
  • Horsepower Rating: 1 HP at 277 VAC, 0.33 HP at 120 VAC
  • Maximum Switching Voltage: 300 VAC, 30 VDC
  • Operating Time: 20 ms pick-up, 20 ms drop-out
  • Indicator: LED for relay energized status


Product Identification
  • UPC: 785901348894
  • GTIN: 785901348894
