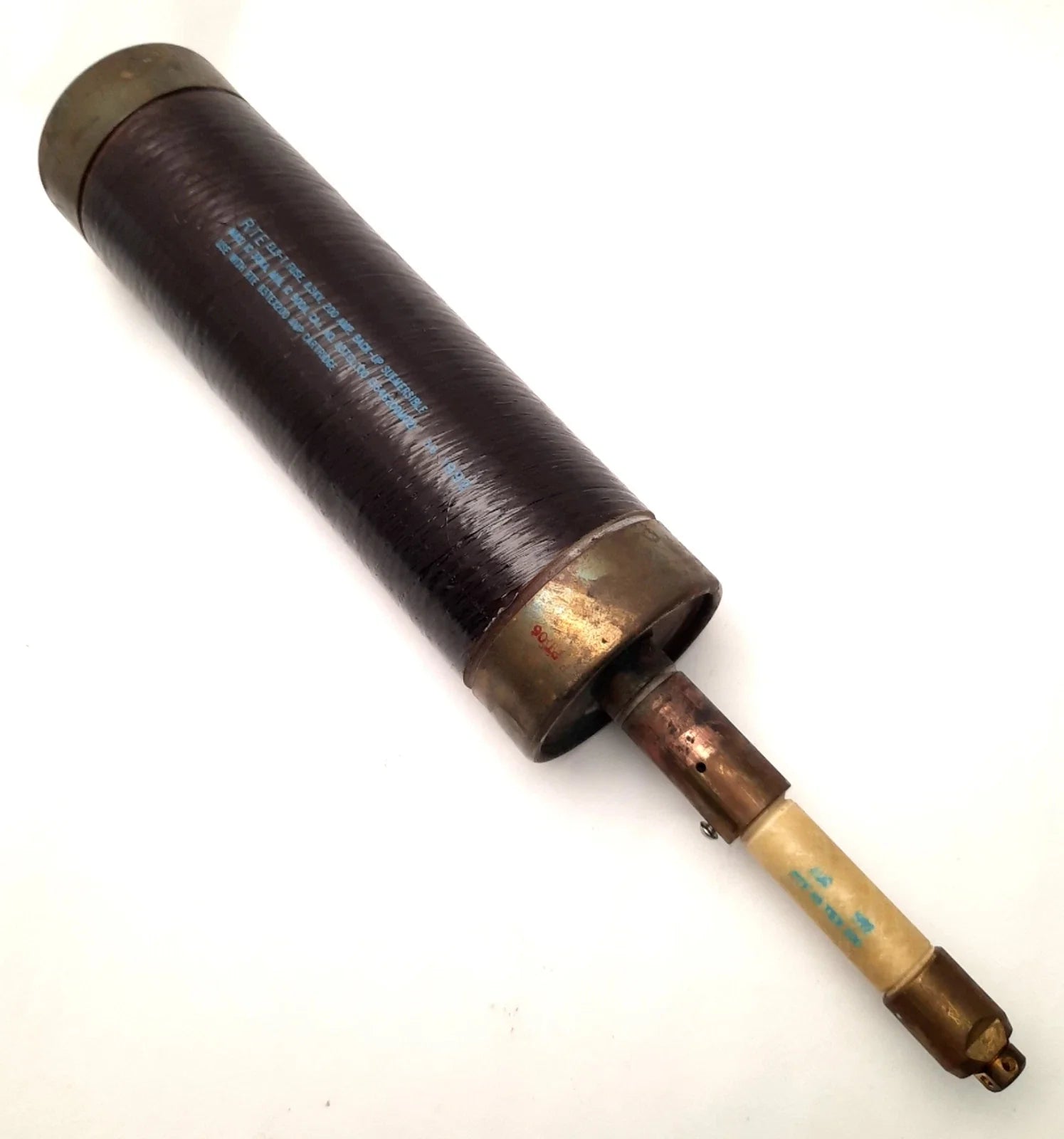

Eaton 83TEX150 - Medium Voltage Fuse 8300V 150A (Sand-Filled Current-Limiting Design)

Eaton 83TEX150 is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power distribution systems. Rated for 8300V AC operation with a 150A current capacity, it features a single-barrel design with a 3-inch diameter for robust arc interruption. The fuse utilizes sand-filled construction with precision-calibrated elements to ensure reliable fault current interruption per IEEE/ANSI standards. It meets UL 248 and IEC 60282-1 requirements for medium-voltage protection. Typical applications include transformer protection, motor starters, and feeder circuits in utility and industrial plants.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with sand-filled construction
• Voltage Rating: 8300V AC
• Current Rating: 150A
• Dimensions: 3" diameter single-barrel design
• Standards: UL 248, IEC 60282-1, IEEE/ANSI compliant
• Applications: Industrial power distribution, transformer protection, motor circuits
• Fuse Class: Medium-voltage current-limiting
• Mounting: Vertical/horizontal per IEEE standards
