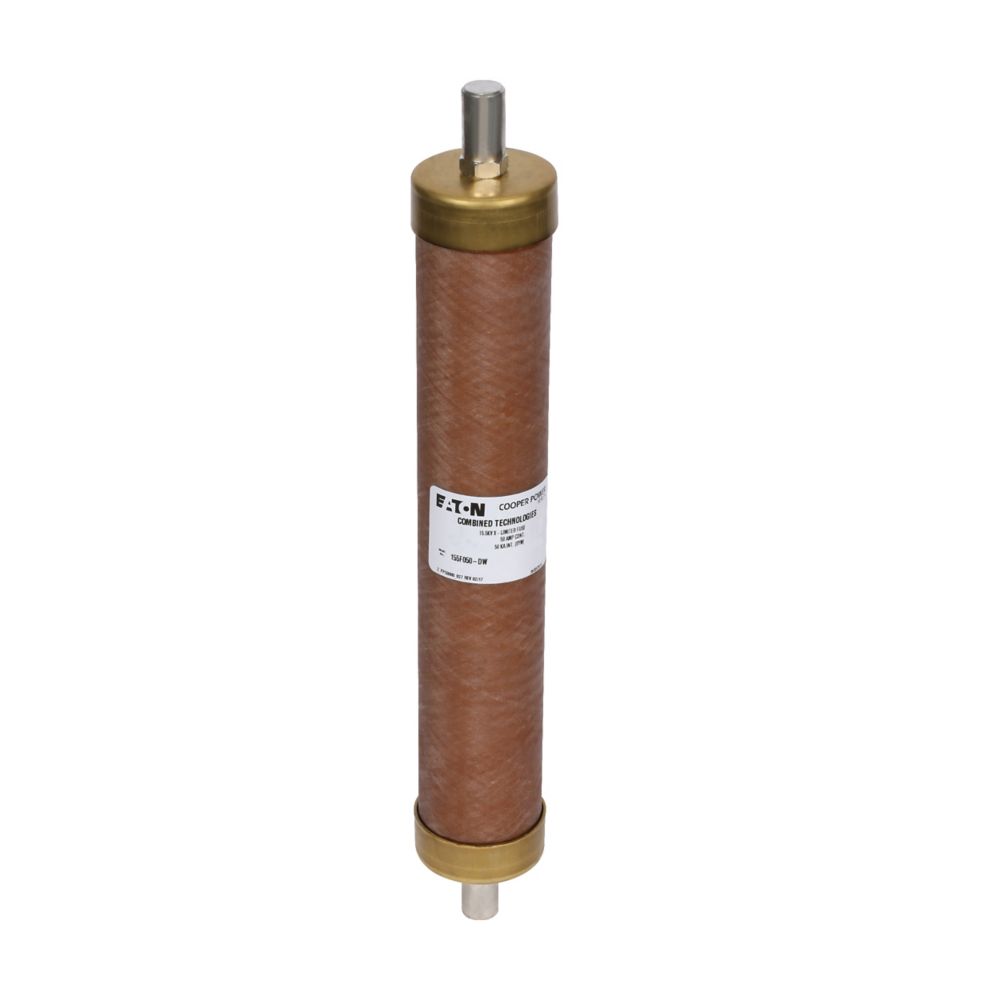

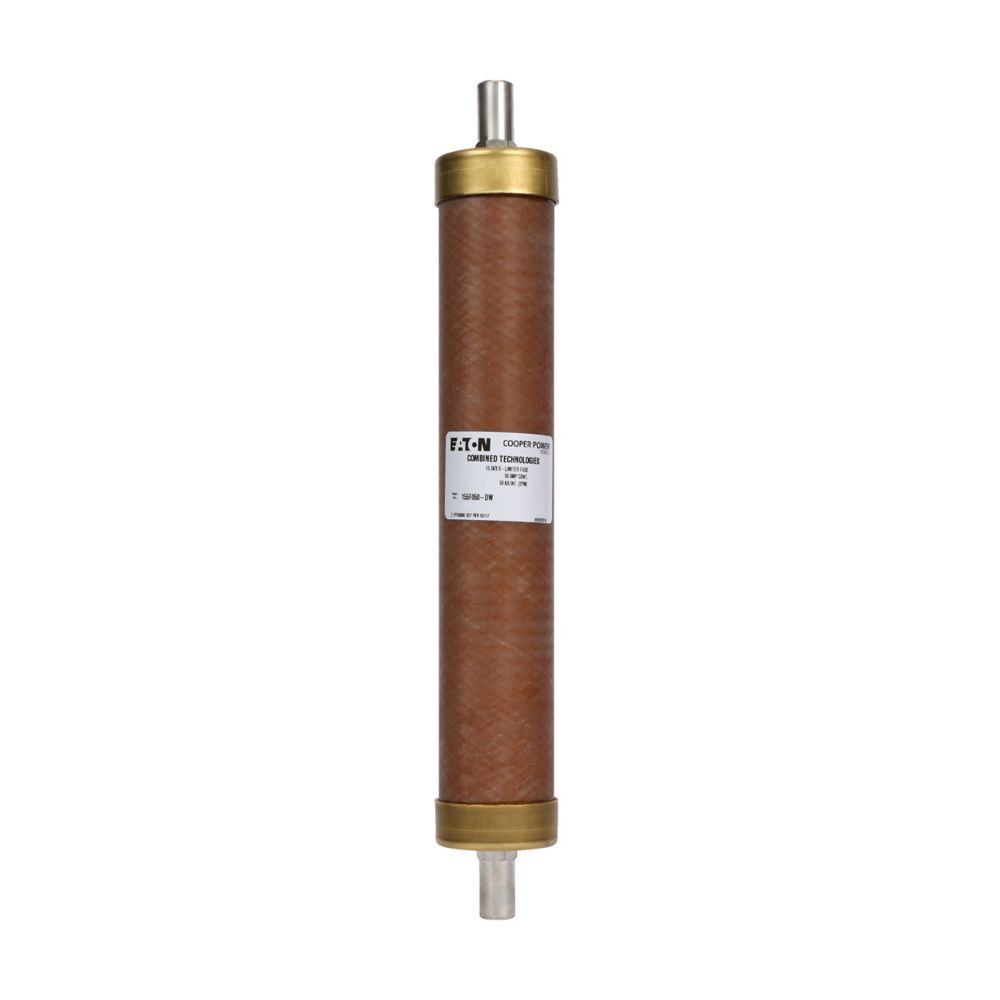

Eaton 83F125-HXEF - Medium Voltage Fuse 125A 8300V (Class C Current-Limiting)

Eaton 83F125-HXEF is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This Class C fuse features an 8300V voltage rating and 125A current rating, providing reliable overcurrent protection for demanding applications. The single-barrel construction with special connection terminals and 3-inch diameter ensures robust performance in harsh electrical environments, meeting industry standards for medium voltage protection. These fuses are engineered for industrial power distribution systems, motor circuits, and transformer protection where high interrupting capacity and current-limiting characteristics are required.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single barrel construction
• Voltage Rating: 8300V AC
• Current Rating: 125A
• Dimensions: 3-inch diameter
• Standards: Class C rating
• Applications: Industrial power distribution, motor protection, transformer circuits
• Connection: Special
• Barrels: 1
• Weight: 8 lb
• Fuse Class: C
• Item Subcategory: Medium Voltage

Product Identification

• Manufacturer: Eaton
• Model: 83F125-HXEF
