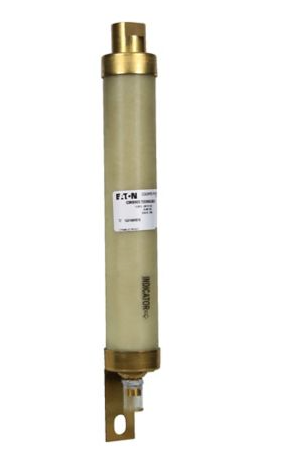

Eaton 83F018-IVBTB - Medium Voltage Fuse 8300V AC (18A Current Rating)

Eaton 83F018-IVBTB is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features an 8300V AC voltage rating and 18A current rating, with a Class C interrupting capacity for reliable fault protection. The fuse has a compact 2-inch diameter single-barrel construction with special connection terminals and weighs 3 lb for easy handling. It meets industry standards for medium-voltage applications, including IEEE and ANSI requirements. Typical applications include transformer protection, motor starters, and feeder circuits in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with silver-sand element
• Voltage Rating: 8300V AC
• Current Rating: 18A
• Dimensions: 2-inch diameter
• Standards: IEEE/ANSI compliant
• Applications: Transformer protection, motor circuits, power distribution
• Class Rating: C
• Connection: Special terminal
• Barrels: 1
• Weight: 3 lb
