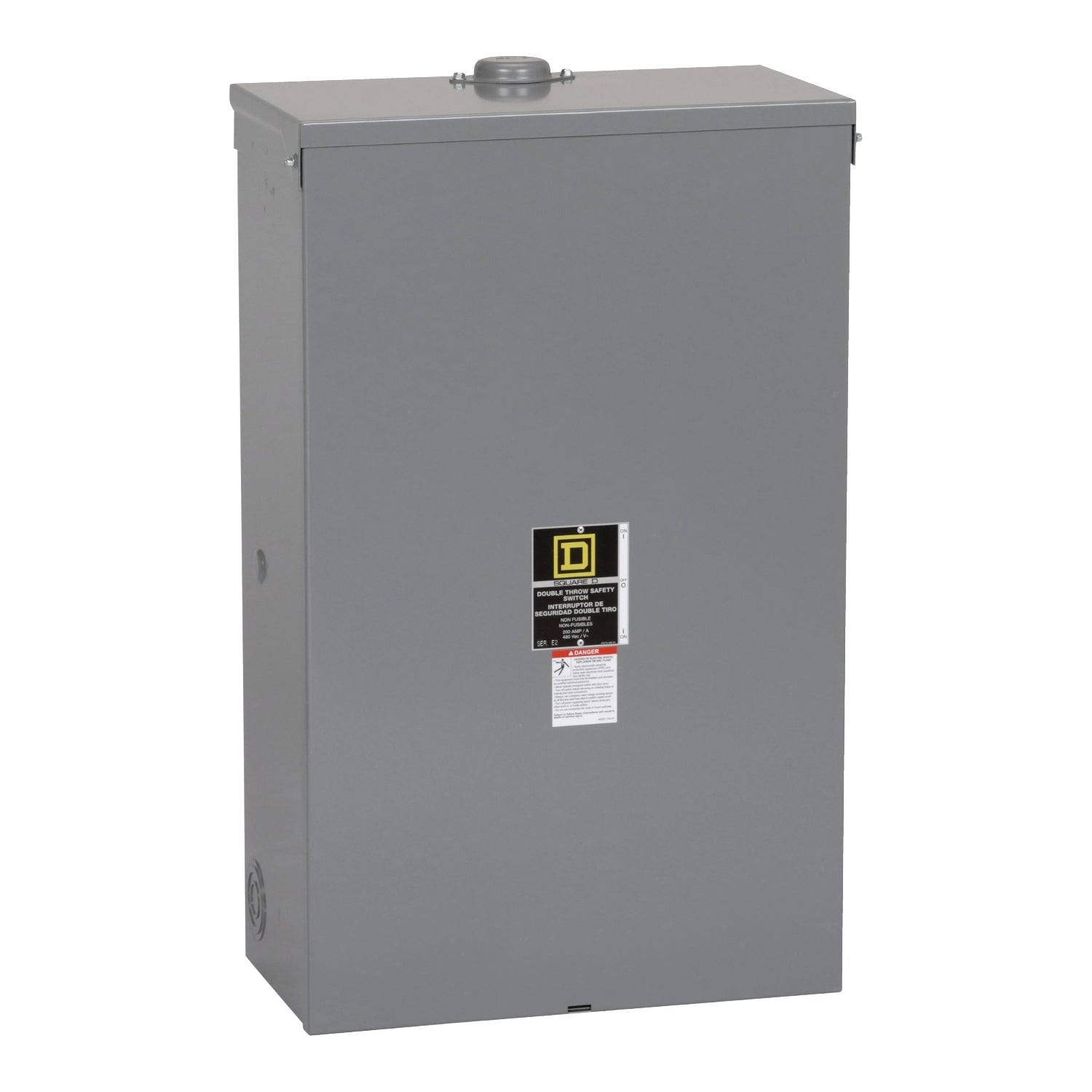

Square D 82344RB - Non-Fusible Safety Switch 200A 480V 3P

Square D
Price
Save $660.05
/
Title
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
Square D 82344RB is a non-fusible safety switch designed for providing a visible disconnect and isolation of electrical circuits in industrial and commercial applications. It is rated for 200A at 480V AC in a 3-phase configuration and features a robust NEMA 3R rainproof enclosure with dimensions of 825.5 mm H x 609.6 mm W x 270 mm D. The switch is UL listed and offers a high interrupting capacity of 100kA at 600V, ensuring reliable protection and compliance with industry safety standards for use in motor control centers and power distribution panels.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Safety Switch, Series E, Type 823
  • Voltage Rating: 480V AC
  • Current Rating: 200A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 100kA @ 600V
  • Wire Size: AWG 6 to 300 KCMil (Aluminum/Copper)
  • NEMA Rating: NEMA 3R
  • Dimensions: 825.5 mm H x 609.6 mm W x 270 mm D (32.5 in x 24 in x 10.63 in)
  • Weight: 75.081 lb
  • Standards: UL Listed
  • Compatible Frames: PLP
  • Fuse Class: H, J
  • Country of Origin: Mexico


Product Identification
  • UPC: 78590145381
  • GTIN: 00785901453819
