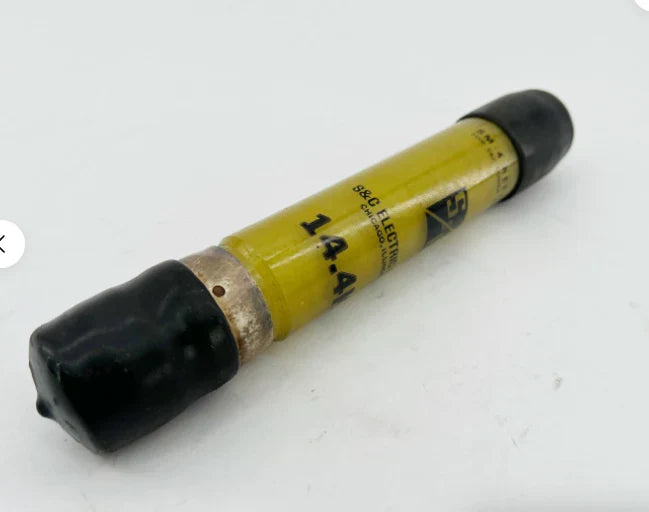

S&C Electric 803600R2 - Fault Fiter Fuse 800A 25kV (40 kA AIC Rating)
S&C Electric 803600R2 - Fault Fiter Fuse 800A 25kV (40 kA AIC Rating)

S&C Electric 803600R2 - Fault Fiter Fuse 800A 25kV (40 kA AIC Rating)

S&C Electric
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
S&C Electric 803600R2 is a medium-voltage Fault Fiter fuse designed for high-capacity circuit protection in industrial power systems. This single-barrel fuse operates at 25 kV with an 800A current rating and delivers 40 kA interrupting capacity at 25 kV for reliable fault clearing. The unit features a robust construction with 4-inch diameter and 18-inch clip center spacing, weighing 10 lb for secure mounting. It meets industry standards for medium-voltage protection applications and is engineered for demanding environments including utility substations, industrial plants, and large commercial facilities where high-voltage circuit protection is critical.

Key Features & Specifications
  • Type: Medium Voltage Fault Fiter fuse, single-barrel construction
  • Voltage Rating: 25,000V AC
  • Current Rating: 800A
  • Dimensions: 4-inch diameter, 18-inch clip center spacing
  • Standards: Industry standards for medium-voltage protection
  • Applications: Utility substations, industrial plants, large commercial facilities
  • AIC rating: 40 kA at 25 kV
  • Connection: Special
  • Barrels: 1
  • Class Rating: Fault Fiter
  • Weight: 10 lb
