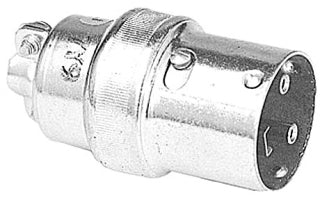

Thomas & Betts 8013 - Plug 20A 125V (NEMA 3R/12)
Thomas & Betts 8013 - Plug 20A 125V (NEMA 3R/12)

Thomas & Betts 8013 - Plug 20A 125V (NEMA 3R/12)

Thomas & Betts
Price
Save $176.81
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Thomas & Betts 8013 is an industrial grade plug designed for durable and reliable power connections in demanding environments. It is rated for 20 amps and 125 VAC, with a voltage rating of 600 VAC/250 VDC, and supports a frequency of 60 Hz. The plug measures 1-3/4 inches in diameter by 3-1/8 inches in length, weighs 2.02 lb, and is constructed from plated steel and steel materials with a dust-proof standard design featuring automatic locking and positive grounding via phosphor bronze ground straps. It carries a NEMA 3R/12 enclosure rating and an IP44 dust and splash protection rating, operating in temperatures from -40 to 203 degrees Fahrenheit. This plug is suitable for industrial, lighting, welding, and machinery applications.

Key Features & Specifications
  • Type: Plugs Recep
  • Amperage Rating: 20 A
  • Voltage Rating: 125 VAC, 600 VAC/250 VDC
  • Number of Poles: 2
  • Number of Wires: 3
  • Frequency Rating: 60 Hz
  • Enclosure Rating: NEMA 3R/12, IP44
  • Material: Plated Steel, Steel
  • Temperature Rating: -40 to 203 °F
  • Mounting Type: Plug, Ever-Lok locking connection
  • Grounding: Positive grounding with phosphor bronze ground straps
  • Dimensions: 1-3/4 in Dia x 3-1/8 in L
  • Weight: 2.02 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 708917208402
