800FM-SR32 Allen-Bradley 3-Position Selector Switch (Spring Return from Right)

800FM-SR32 Allen-Bradley 3-Position Selector Switch (Spring Return from Right)

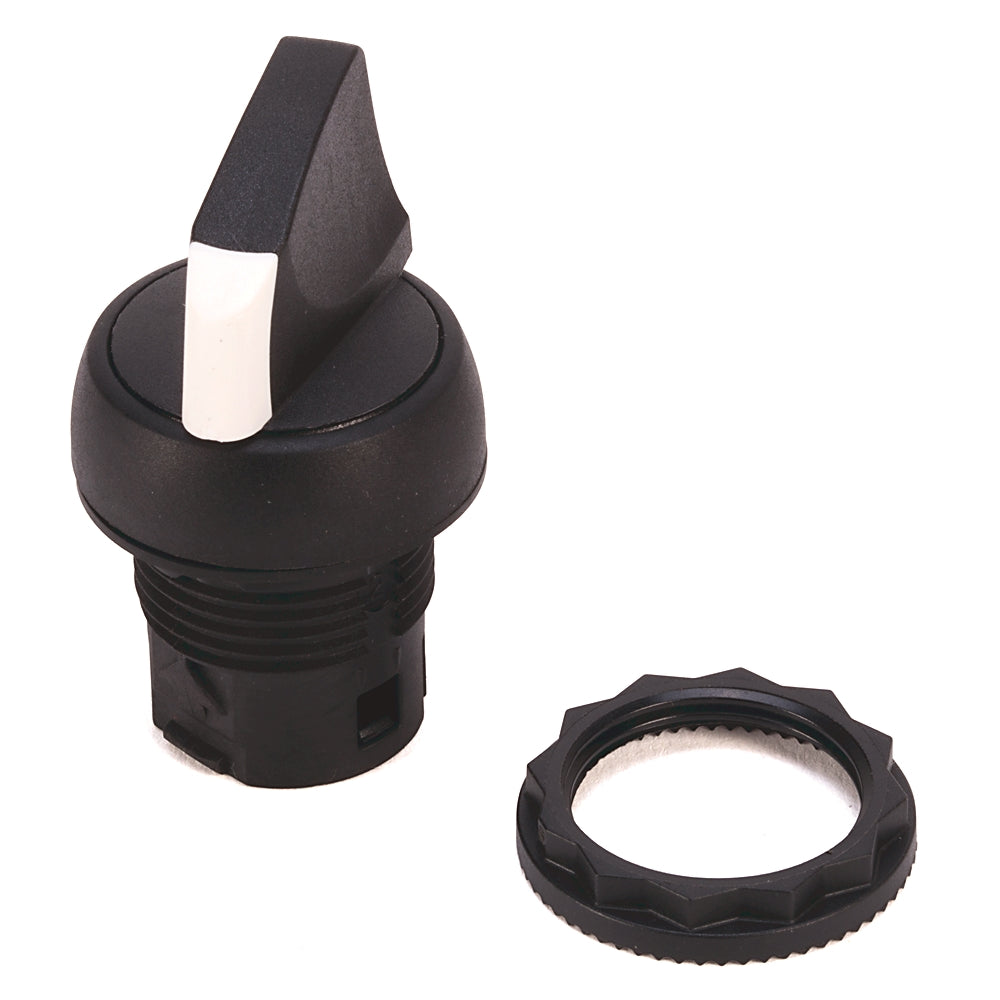

Trying to figure out if the 800FM-SR32 is the right selector switch for your panel? Here is the plain version. This is an Allen-Bradley 22mm metal selector switch with three positions, and the right position is spring loaded - meaning when you turn the knob to the right and let go, it automatically springs back to the center. The left and center positions stay where you set them. People use this when one position needs to be a quick, temporary action (like a jog or momentary start) while the other two stay put.

One important thing to know before you buy: this part is the switch operator only. That is the knob and front housing. It does not include the small electrical contact blocks or the mounting clip that hold it in the panel, so you will need to add those separately. The matching Allen-Bradley parts are a 22.5 mm mounting latch plus contact blocks (800F-X10 for normally open, 800F-X01 for normally closed). If you are not sure which contacts you need, just ask and we will help you match them.

Common Applications

• Machine control panels that need a 3-position switch
• Setups where one position should spring back on its own
• Jog, momentary start, or temporary run controls
• Replacing a damaged or worn selector switch head

Key Features

• Three Positions: Left, center, and right, with the right position springing back to center.
• Durable Metal: Die-cast zinc body built to last in industrial settings.
• Standard 22.5 mm Fit: Mounts in a common round panel hole used across the 800F line.
• Sealed and Rated: Type 4/13 and IP66 against dust and water spray.
• Widely Certified: UL, CSA, cUL, CCC, KC, and Marine listed.

Specifications

• Catalog Number: 800FM-SR32
• Type: 22mm selector switch operator, 800F PB
• Positions: 3
• Action: Spring return from right; left and center maintained
• Material: Metal, die-cast zinc, chromate plated
• Knob: Standard black knob, white insert
• Illumination: None (no power module)
• Mounting: 22.5 mm round panel cutout
• Rating: Type 4/13, IP66
• Operating Temperature: -25 C to +70 C
• Certifications: UL, CSA, cUL, CCC, KC, Marine

Product Identification

• UPC: 662073818076
• Mounting Cutout: 22.5 mm round
• Configuration: Operator only; contacts and latch sold separately

FAQ

What does spring return from right mean? Turn the knob right and release it, and it returns to center by itself. Left and center stay where you set them.

Does it come with everything I need? Not quite. You also need a 22.5 mm mounting latch and contact blocks (800F-X10 N.O. or 800F-X01 N.C.).

Is this part metal or plastic? Metal. The operator is die-cast zinc with a black knob.

Will it fit a standard panel? Yes, it uses a common 22.5 mm round mounting hole.

Is there a light in it? No, this is a non-illuminated switch.

How do I know which contacts to order? Tell us how your control circuit is wired and we will point you to the right normally open or normally closed blocks.
