Eaton 72DBA1-40E - High Voltage Fuse 40A 69kV (IEEE C37.41)
72DBA1-40E Eaton DBA High Voltage Fuse - Essential Electric Supply
72DBA1-40E Eaton DBA High Voltage Fuse - Essential Electric Supply
72DBA1-40E Eaton DBA High Voltage Fuse - Essential Electric Supply
Eaton 72DBA1-40E - High Voltage Fuse 40A 69kV (IEEE C37.41)

Eaton 72DBA1-40E - High Voltage Fuse 40A 69kV (IEEE C37.41)

Eaton
Price
Save $3,460.30
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

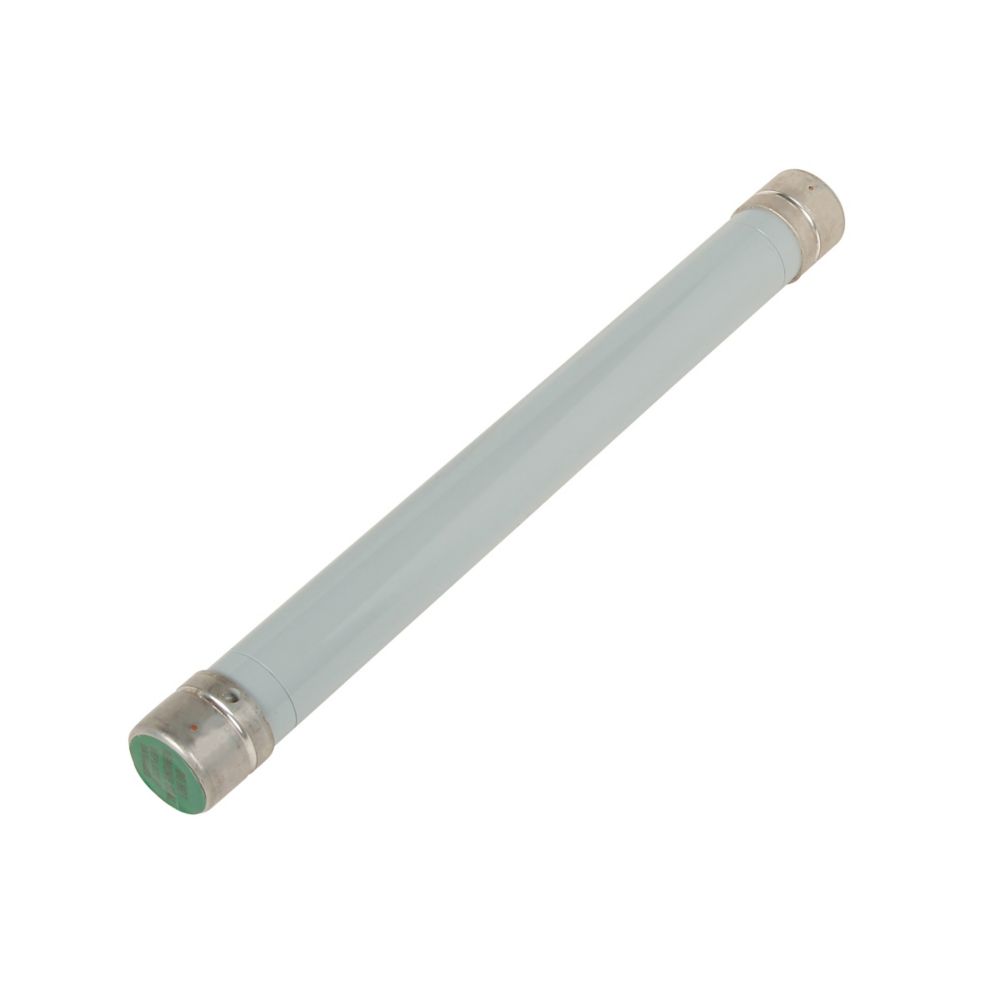

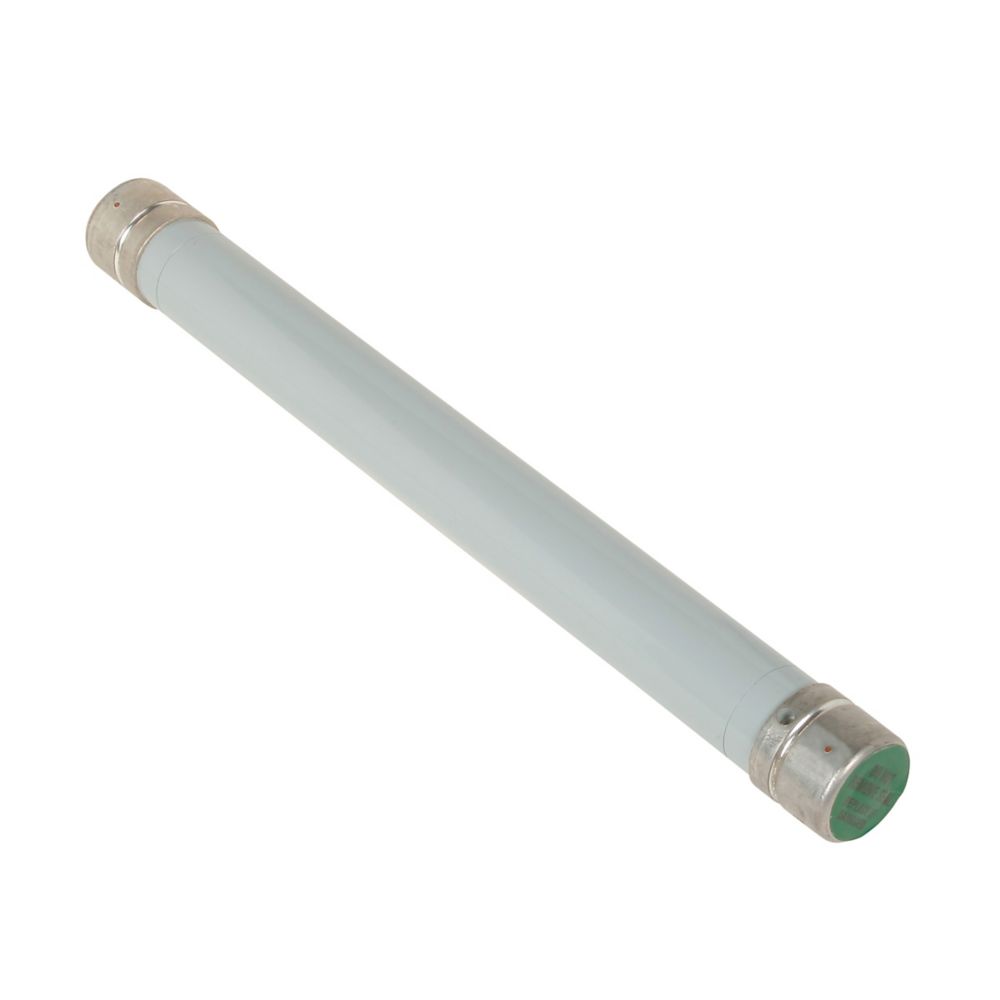

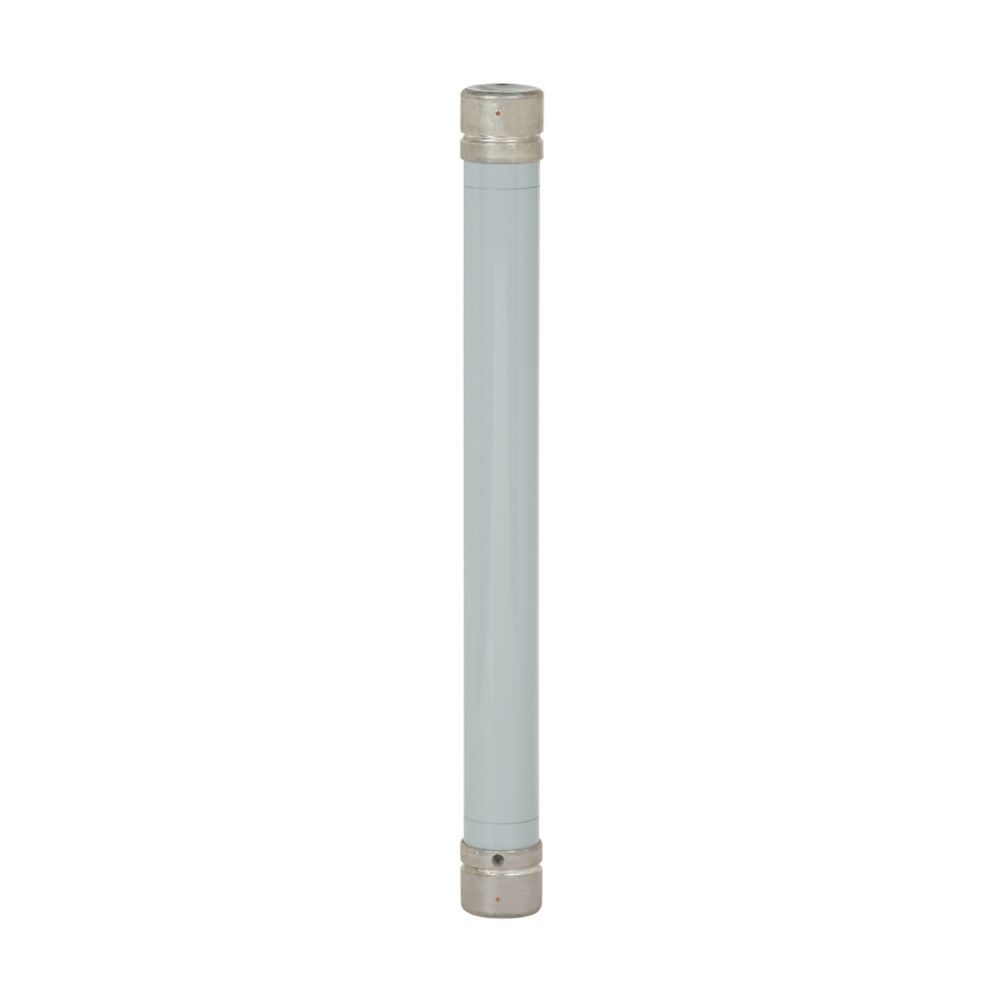

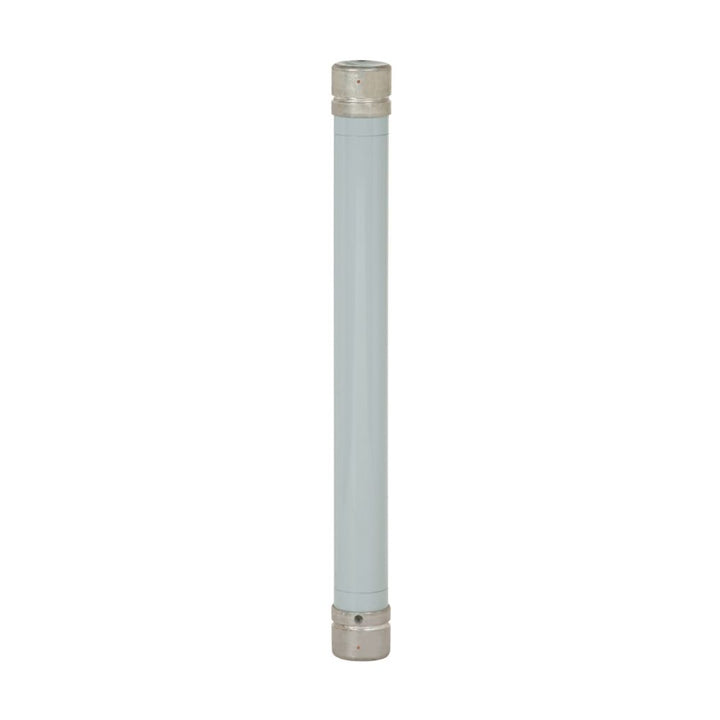

Eaton 72DBA1-40E is a high-voltage current-limiting power fuse designed for the protection of transformers, capacitor banks, and other equipment in medium-voltage distribution systems. It features a 40A current rating and a 69kV voltage rating, housed within a robust single-barrel ferrule-connection design measuring 43.88 inches in length. The fuse is engineered to meet IEEE Std. C37.41 standards, offering a 10kA interrupting capacity at 72kV for reliable fault protection in utility and industrial power applications.

Key Features & Specifications
  • Type: DBA1 high-voltage current-limiting power fuse, single barrel, ferrule connection
  • Voltage Rating: 69,000V AC
  • Current Rating: 40A
  • Dimensions: 43.88 in L x 1.7 in H x 1.7 in W
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, capacitor banks, and feeders in utility and industrial power distribution
  • Class Rating: E
  • AIC rating: 10kA @ 72kV
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Standard
  • Weight: 7 lb


Product Identification
  • UPC: 78667024491
  • GTIN: 00786670244912
