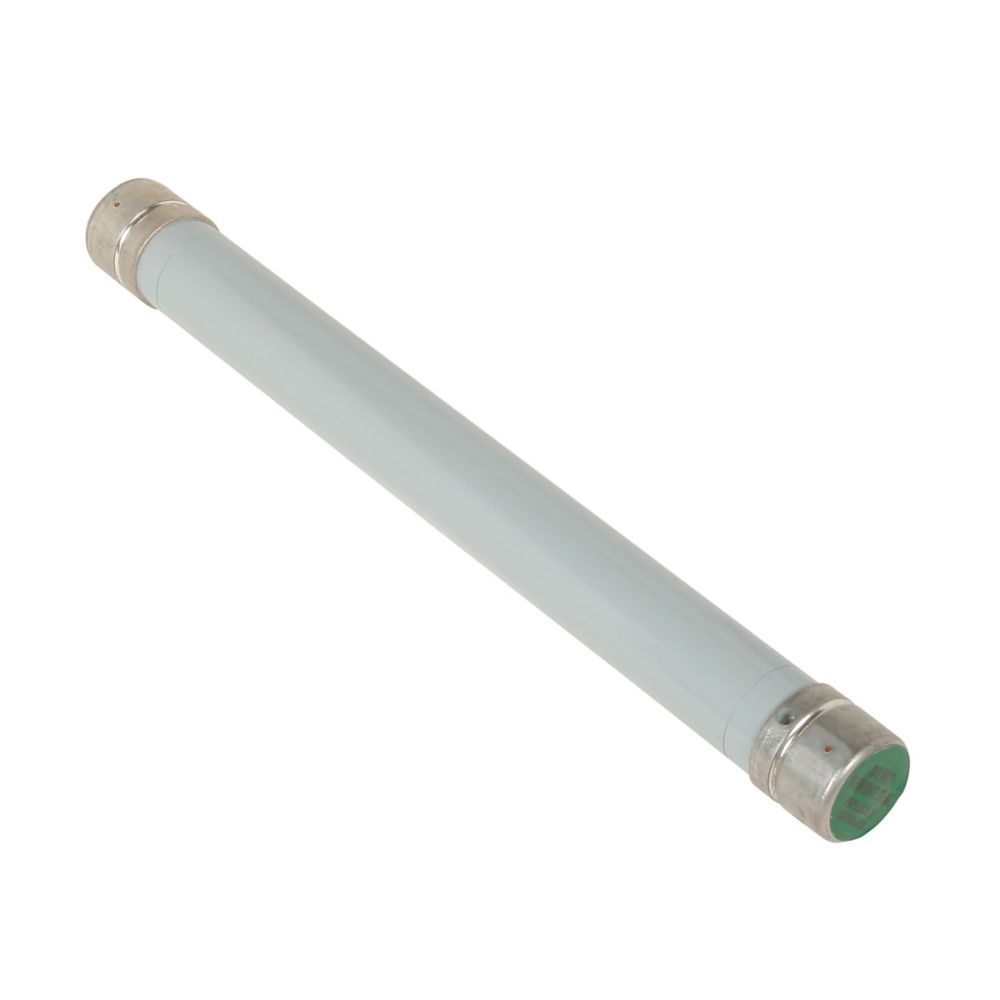

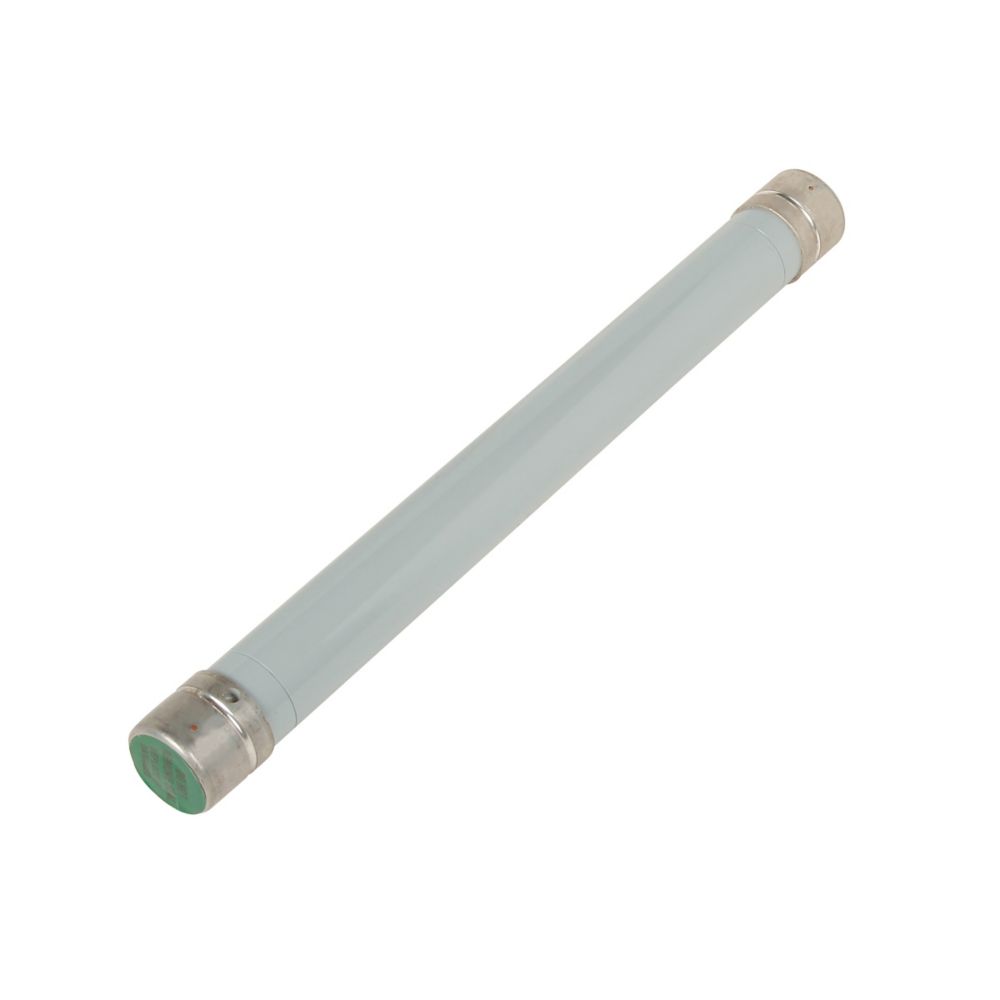

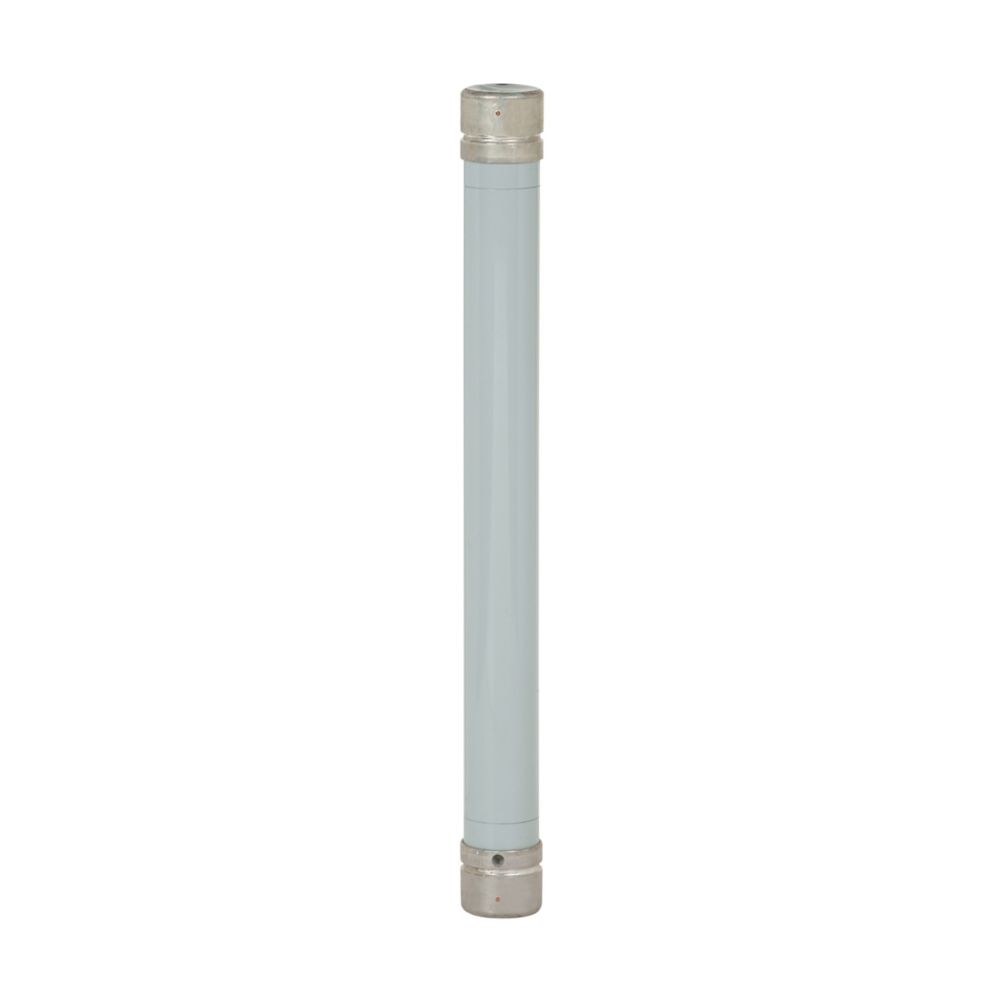

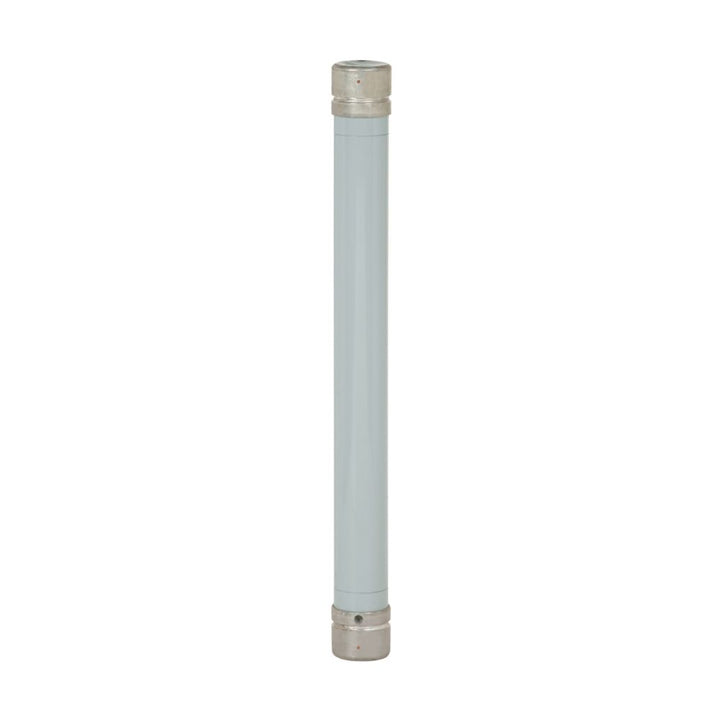

Eaton 72DBA1-125E - High Voltage Fuse 125A 69kV (Class E)
72DBA1-125E Eaton DBA High Voltage Fuse - Essential Electric Supply
72DBA1-125E Eaton DBA High Voltage Fuse - Essential Electric Supply
72DBA1-125E Eaton DBA High Voltage Fuse - Essential Electric Supply
Eaton 72DBA1-125E - High Voltage Fuse 125A 69kV (Class E)

Eaton 72DBA1-125E - High Voltage Fuse 125A 69kV (Class E)

Eaton
Price
Save $3,460.30
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 72DBA1-125E is a high-voltage current-limiting power fuse designed for the protection of transformers, capacitor banks, and other equipment in medium-voltage distribution systems. It is rated for 125A continuous current and 69kV voltage, featuring a single-barrel ferrule connection and a standard velocity design for predictable clearing characteristics. The fuse is constructed as a Class E expulsion-type unit with dimensions of 43.88 in length by 1.7 in diameter and a weight of 7 lb, engineered to meet the IEEE Std. C37.41 standard. Its 10kA asymmetrical interrupting rating at 72kV ensures reliable protection against fault currents in utility and industrial power applications.

Key Features & Specifications
  • Type: DBA1, High Voltage Current-Limiting Expulsion Fuse, Single Barrel
  • Voltage Rating: 69 kV
  • Current Rating: 125 A
  • Dimensions: 43.88 in L x 1.7 in D (Diameter)
  • Standards: IEEE Std. C37.41
  • Applications: Transformer & Capacitor Bank Protection, Medium-Voltage Distribution
  • AIC rating: 10 kA @ 72 kV
  • Class Rating: E
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Standard
  • Weight: 7 lb


Product Identification
  • UPC: 78667000514
  • GTIN: 00786670005148
