Bussmann 7.2CAV10 - Medium Voltage Fuse 10A (Class E, 63kA AIC)

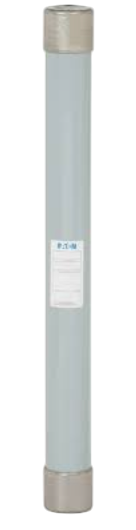

The Bussmann 7.2CAV10 is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. It features a 10A current rating and a 7200V voltage rating, providing reliable circuit interruption. The fuse is constructed as a single-barrel unit with a 1.63-inch diameter and 7.46-inch clip center spacing, meeting Class E rating requirements for high-performance protection. This Eaton CAV family fuse complies with industry standards for medium voltage applications, delivering a 63kA interrupting rating at 7.2kV. It is typically deployed in motor control centers, transformers, and feeder circuits where robust overcurrent protection is essential.

Key Features & Specifications

• Type: Medium Voltage Current-Limiting Fuse, Single Barrel
• Voltage Rating: 7200V AC
• Current Rating: 10A
• Dimensions: 1.63" Diameter, 7.46" Clip Center
• Standards: Class E Rated
• Applications: Industrial Power Distribution, Motor Control Centers, Transformer Protection
• AIC Rating: 63kA @ 7.2kV
• Weight: 1 lb
• Family: CAV

Product Identification

• UPC: 051712609319
• GTIN: 00051712609319
